BURNDY YS29 250 kcmil CU Long Barrel Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

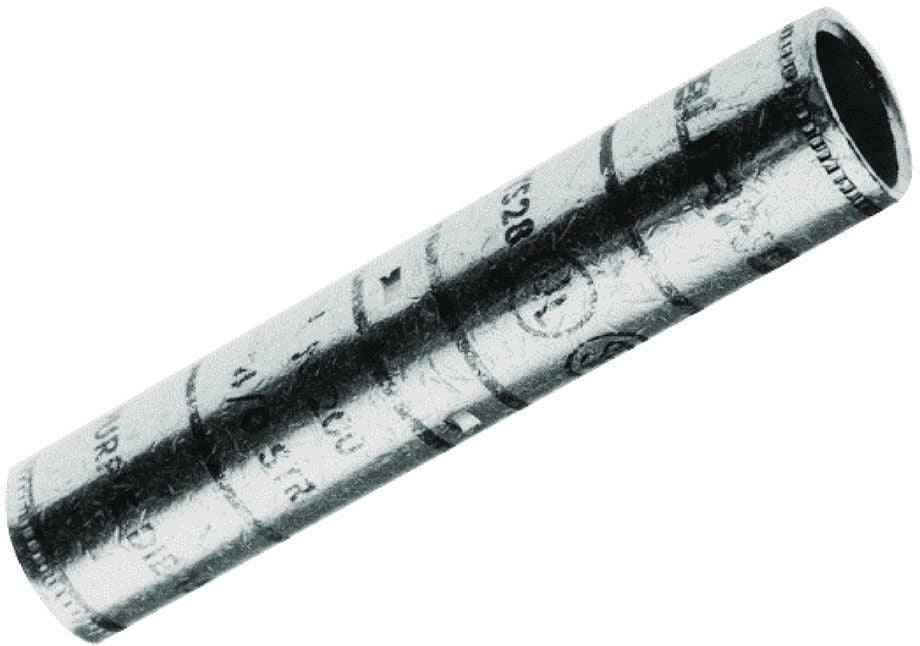

The BURNDY YS29 is a compression cable splice suitable for copper conductors. This product is designed to create reliable connections in wire splicing applications, rated for up to thirty-five kilovolts with a wire size of two hundred fifty kcmil. The tin-plated finish provides protection against corrosion while enhancing performance.

• Long barrel design for secure connections
• UL listed for voltage levels up to thirty-five kV
• Made in the USA

Product Highlights

This cable splice features a long barrel with an internal chamfer for easy insertion of wires. It includes four conductor stops for proper wire placement, ensuring a secure and robust electrical connection.

Product Information

Standard Information

• Catalog Number: YS29
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Finish: Tin-Plated
• Voltage Rating: 35 kV
• Wire Size: 250 kcmil
• Temperature Rating: 90°C
• Wire Strip Length: 1-11/16 inches
• Die Index: 16
• Country of Origin: United States
