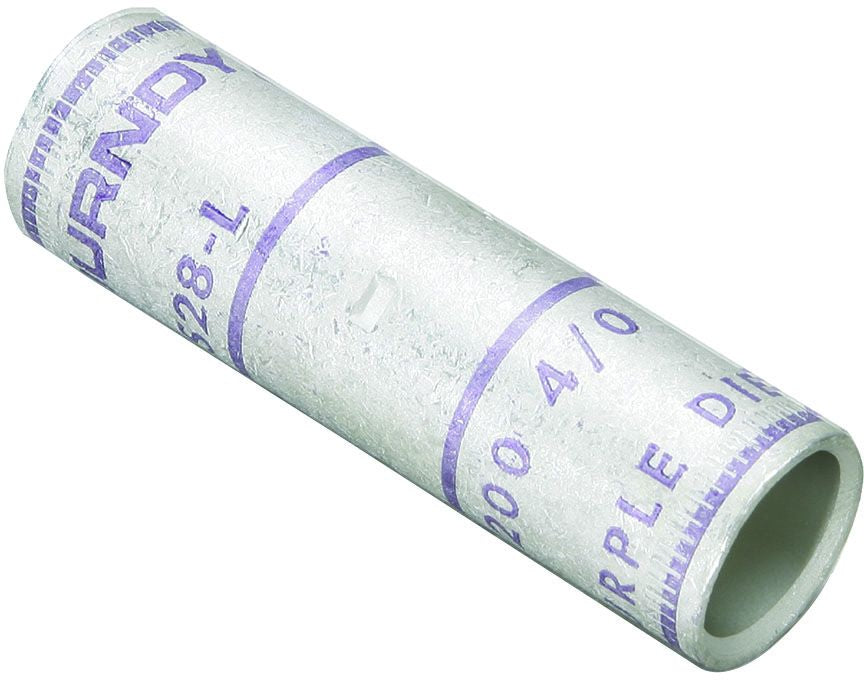

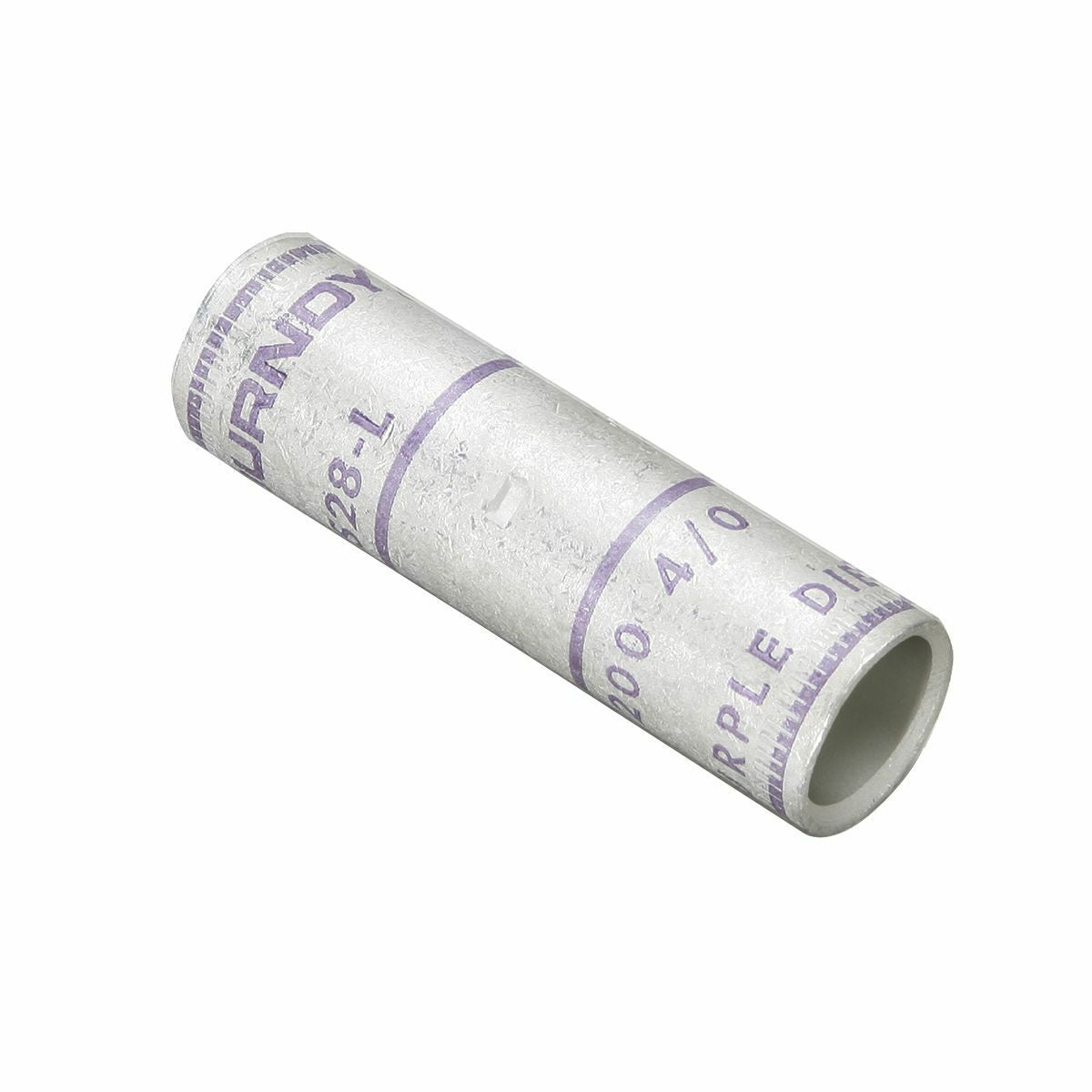

BURNDY YS28LBOX 4/0 AWG CU Compression Splice 15 Die Index

Product Description

The BURNDY YS28LBOX is a compression splice suitable for 4/0 AWG copper wires. This product is built for reliable wire splicing in high voltage applications. Ideal for installations where space is limited, it features a standard barrel design and an internal chamfer for easier wire insertion.

• Rated for voltages up to thirty-five kilovolts
• UL and CSA approved for safe operation
• Constructed from copper with a tin-plated finish

Product Highlights

This splice is essential for electricians and technicians engaged in high voltage wire splicing. It guarantees strong electrical connections under challenging conditions.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YS28LBOX
• Conductor Size: 4/0 AWG
• Voltage Rating: 35 kV
• Material: Copper
• Finish: Tin-Plated
• Die Index: 15
• Wire Strip Length: 1-1/16 inches
• Standard: UL 486A-486B
