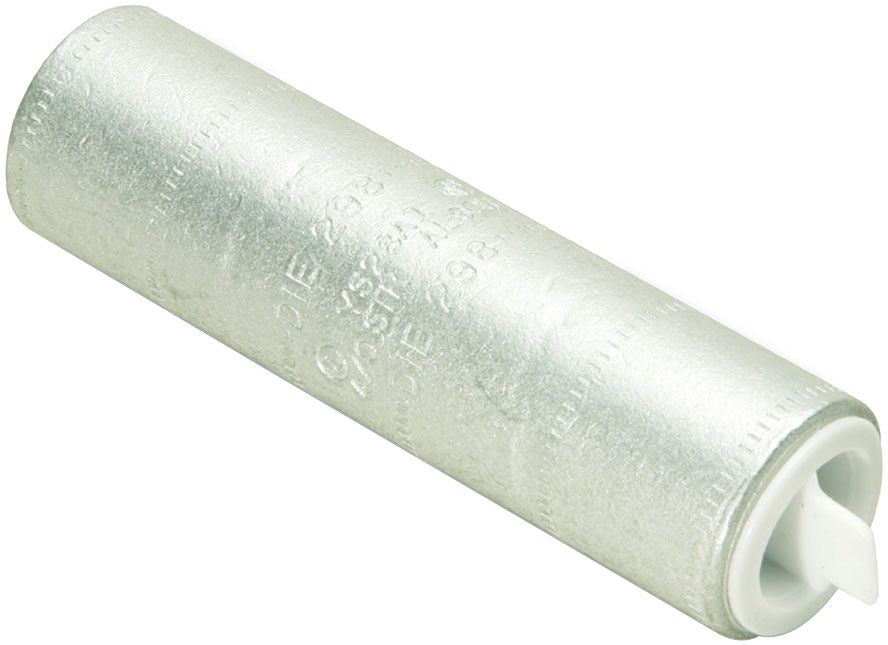

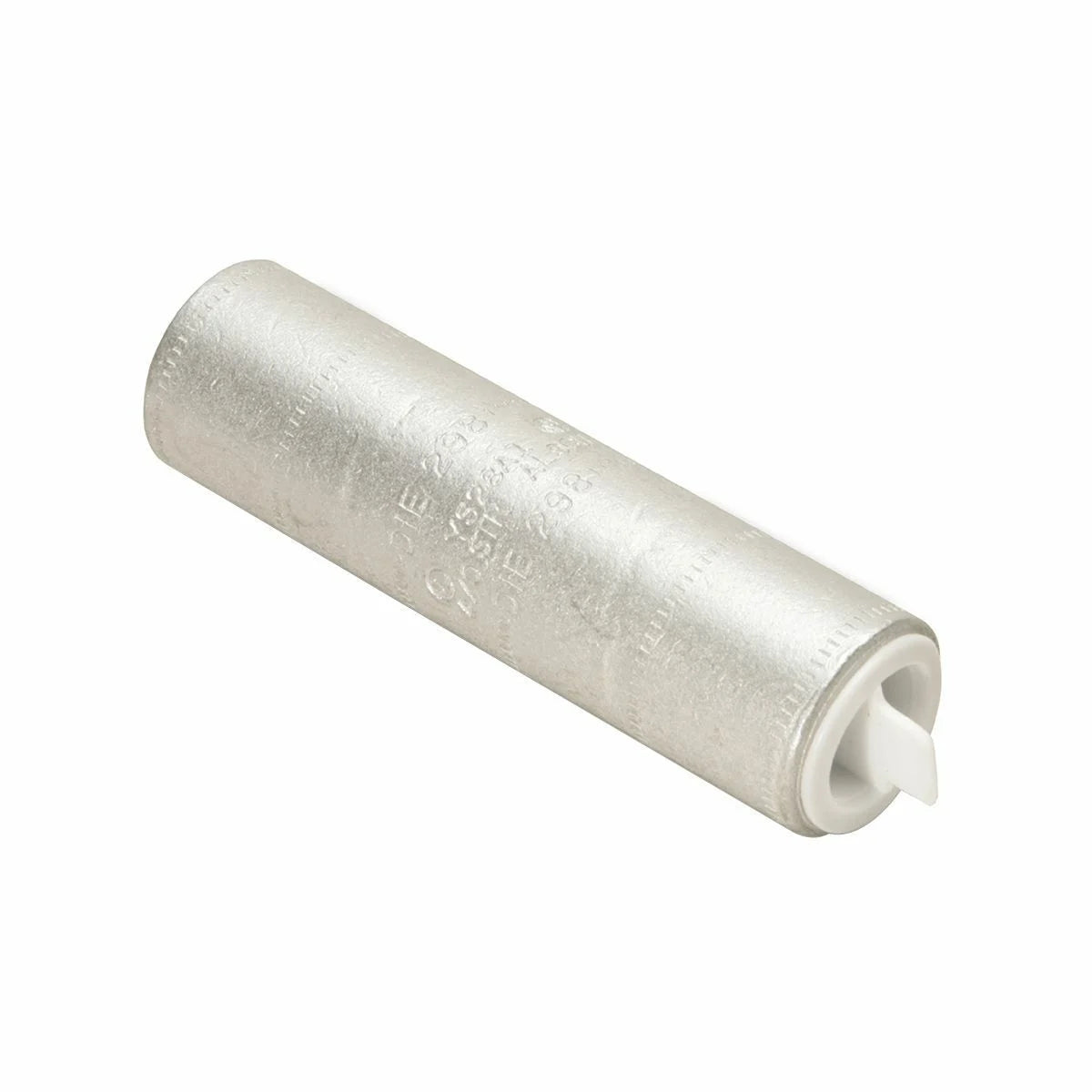

BURNDY YS28A1 Compression Cable Splice, 4/0 AWG, AL9CU, Internal Chamfer, Tin Plated, UL/CSA, 35kV

Product Description

The BURNDY YS28A1 is a compression cable splice designed for reliable wire connections. This product accommodates conductor sizes of four-aught AWG and is suitable for both aluminum and copper applications. It has a voltage rating of thirty-five kilovolts for safe and effective usage in high-voltage environments.

• Manufactured from high-conductivity aluminum.
• Tin-plated for corrosion resistance.
• UL and CSA approved for safety standards.

Product Highlights

Features heavy-duty wall thickness for low resistance and high conductivity. The pre-filled PENETROX compound aids in preventing oxidation at wire junctions. Installation is straightforward thanks to the internally beveled barrel design for easy cable entry.

Product Information

Standard Information

• Catalog Number: YS28A1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Finish: Tin-Plated
• Item Type: YS-A, Standard Barrel
• Voltage Rating: 35kV
• Temperature Rating: 194°F
• Application: Wire Splice
• Wire Strip Length: 1-5/8 inches
• Die Index: 298
