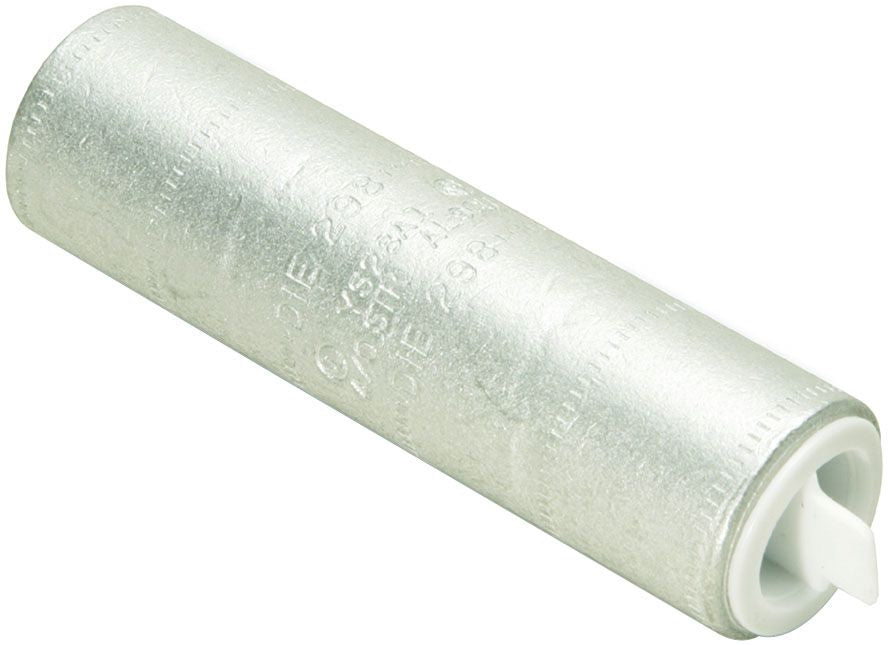

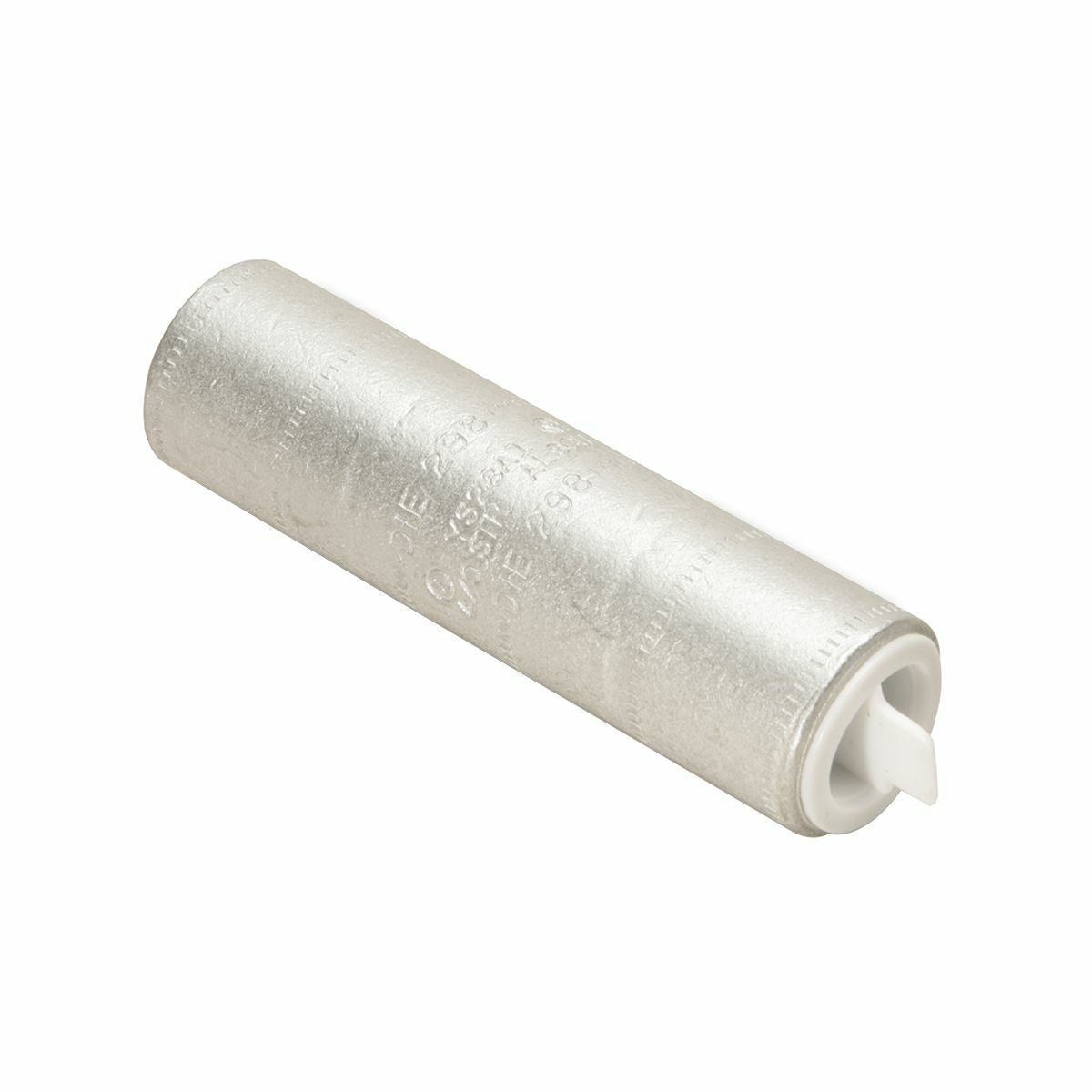

BURNDY YS27A1 3/0 AWG AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX, End Cap, UL/CSA, 90C, Up to 35kV, Ruby Color Code, 467 Die Index

Product Description

The BURNDY YS27A1 is a compression cable splice designed for use in electrical applications. This product accommodates 3/0 AWG aluminum conductors and is suitable for voltages up to thirty-five kilovolts. It features an internal chamfer and is prefilled with PENETROX for enhanced conductivity.

• Manufactured from high-conductivity wrought aluminum.
• Electro-tin plated for durable corrosion protection.
• Designed to ensure a secure connection with a solid center stop.

Product Highlights

This splice is ideal for connecting conductors in power distribution and electrical installations. It is compliant with UL and CSA standards for safety and reliability.

Product Information

Standard Information

• Catalog Number: YS27A1
• Brand: BURNDY

Technical Specifications

• Material: Aluminum
• Finish: Tin-Plated
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• Application: Wire Splice
• UPC: 781810757208
• Cross Reference Products: ASC3/0T, ASP30, 60542
• Wire Strip Length: 1.5 inches
