Burndy YS25LBOX 1/0 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, PINK Color Code, 12 or 348 Die Index

Product Description

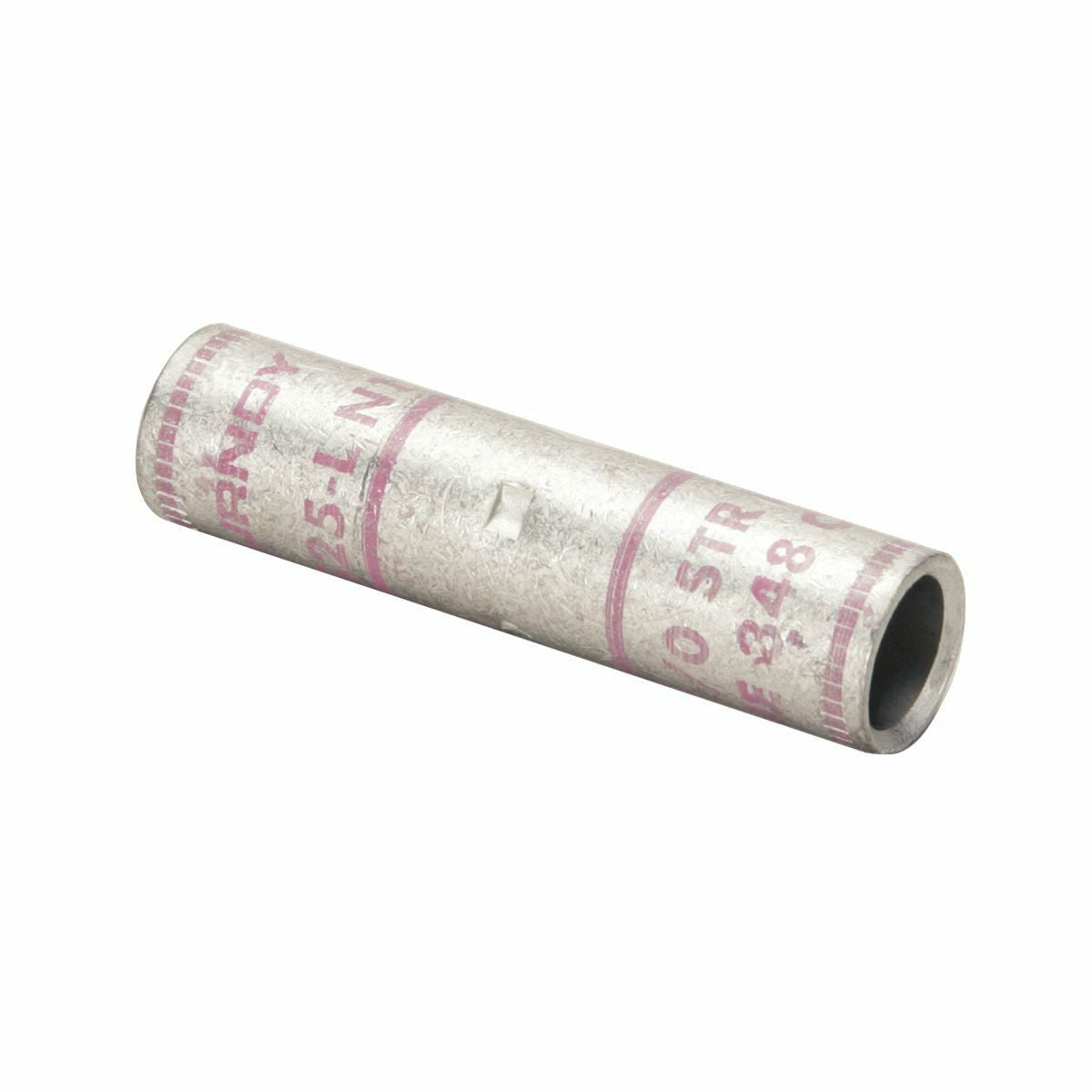

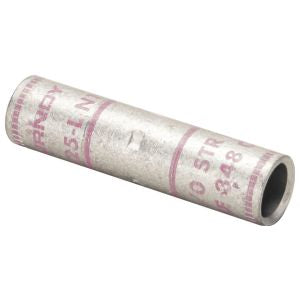

The Burndy YS25LBOX is a compression splice connector designed for use with one-ought American Wire Gauge (1/0 AWG) copper conductors. This connector features a standard barrel with an internal chamfer and is tin plated. It meets UL and CSA standards for safety and is rated for voltage up to thirty-five thousand volts. The connector has a length of two point zero eight inches and is marked with a pink color code for easy identification.

• UL and CSA listed for reliable performance
• Ideal for limited space applications due to its standard barrel length
• Constructed of high-conductivity copper

Product Highlights

The YS25LBOX splice connector is designed for high-voltage applications. Its innovative design ensures proper conductor insertion with four center conductor stops. It is compatible with several dieless tools and is suited for mechanical crimping applications.

Product Information

Standard Information

• Manufacturer: Burndy
• Sub Brand: Hylink

Technical Specifications

• Catalog Number: YS25LBOX
• Material: Copper
• Finish: Tin-Plated
• Barrel Type: Standard Barrel
• Length: 2.08 inches
• Voltage Rating: 35,000 Volts
• Temperature Rating: 90°C
• Wire Size: 1/0 AWG
