Burndy YS1CA1 AL Splice AL9CU Internal Chamfer Tin Plated Prefilled PENETROX A13 Oxide Inhibitor End Cap UL/CSA 90.C Up to 35kV

Product Description

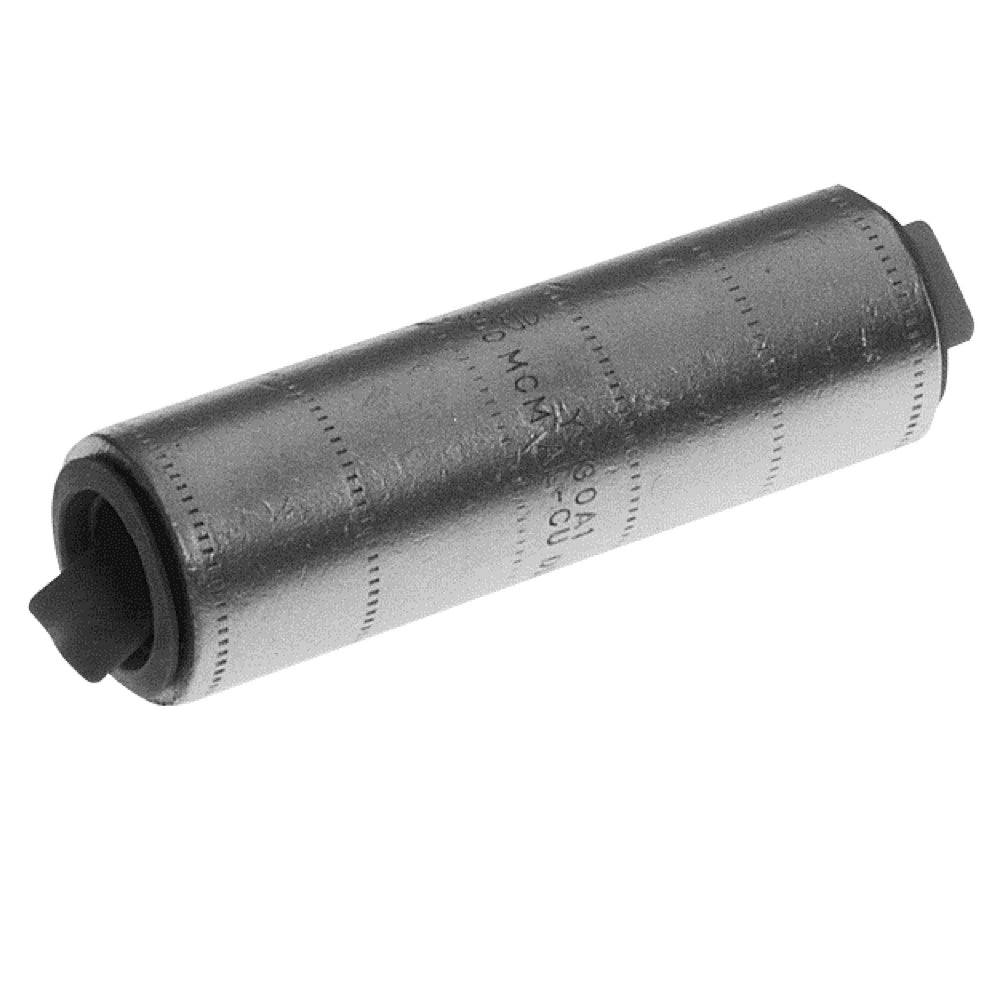

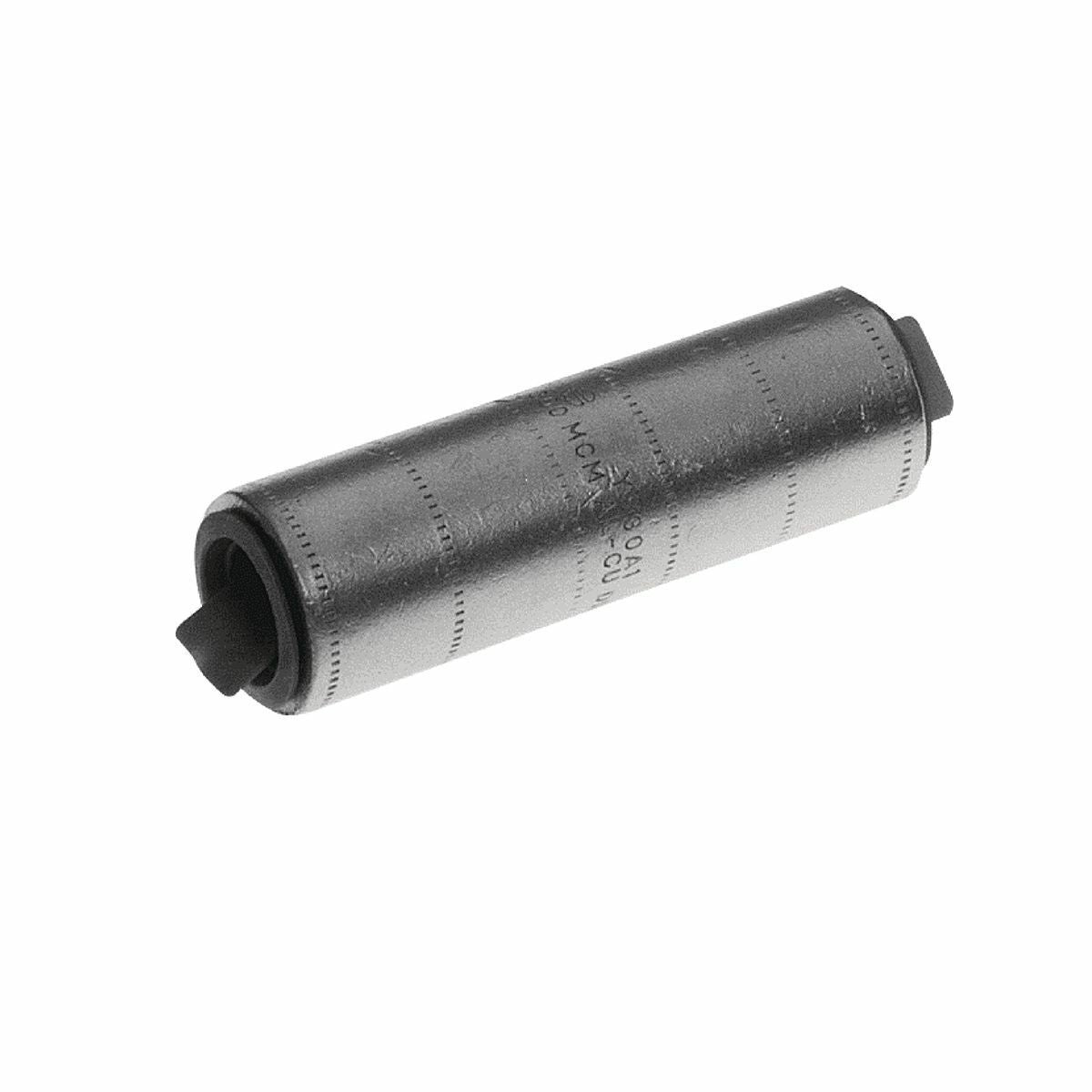

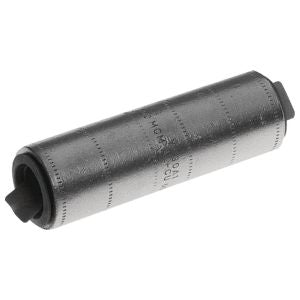

The Burndy YS1CA1 is an aluminum splice connector designed for various applications. This product is manufactured to accommodate one American Wire Gauge (AWG) wire size, making it suitable for connecting aluminum to copper conductors and for other conductor combinations. It features a standard barrel type and has a length of two point zero five inches with a diameter of zero point five four inches.

• Rated for a maximum voltage of 35 kV.
• Meets UL and CSA standards.
• Pre-filled with PENETROX oxide inhibiting compound.

Product Highlights

The YS1CA1 is known for its high conductivity and low resistance owing to its wrought aluminum construction. This splice connector provides secure and efficient connections.

Product Information

Standard Information

• Manufacturer: Burndy
• Catalog Number: YS1CA1

Technical Specifications

• Wire Size: 1 AWG
• Material: Aluminum
• Color Coding: Gold
• Plating Type: Tin - Electro Plated
• Temperature Rating: 90 degrees C
• Overall Length: 2-1/2 in
• Connection Type: Splice
• Voltage Rating: 600 Volt - 35 kV
