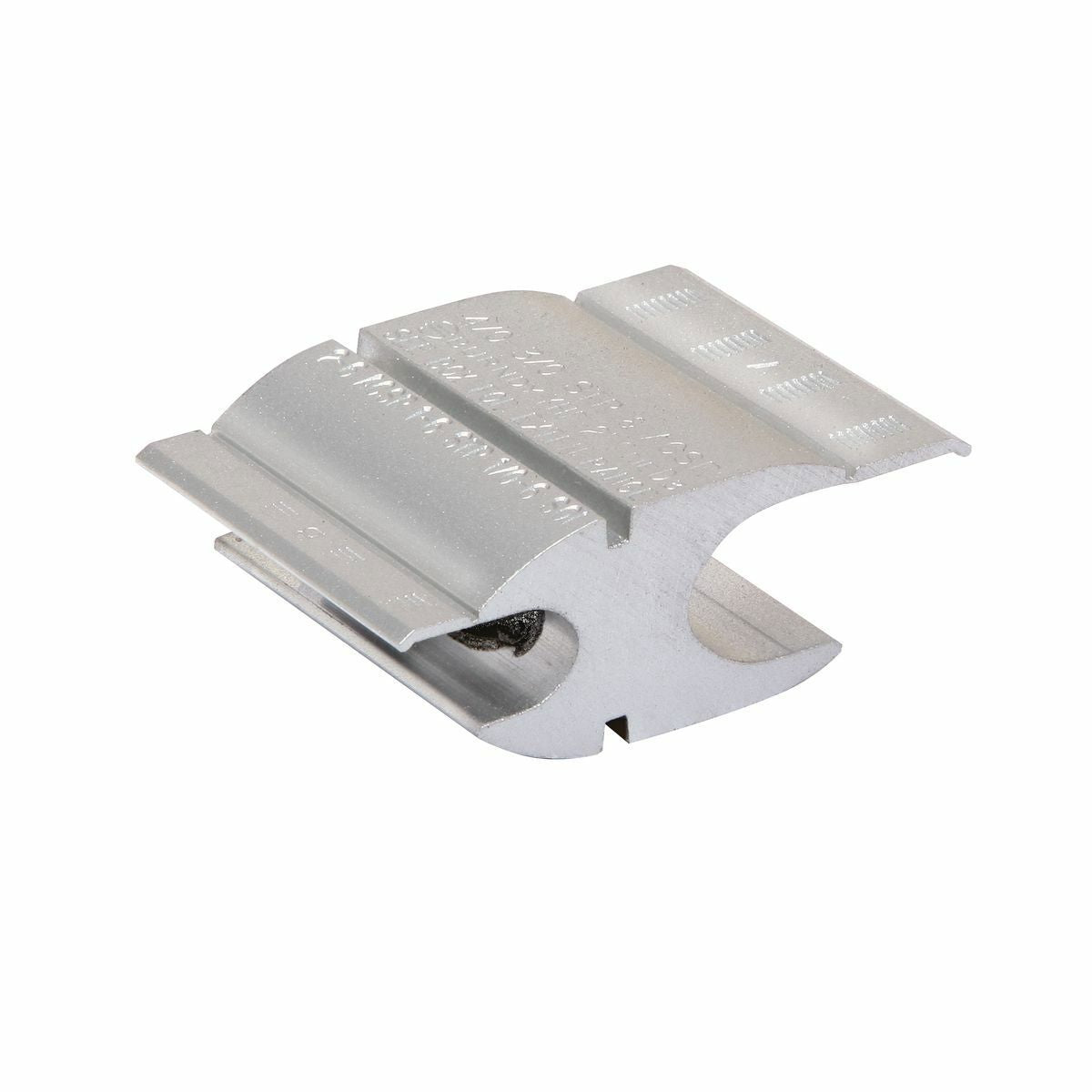

Burndy YHO100 AL Overhead Compression Tap Connector Accommodates AL CU ACSR AAAC and Steel Length 1.25 IN

Product Description

The Burndy YHO100 is an aluminum overhead compression tap connector. It is designed to accommodate aluminum, copper, ACSR, and AAAC conductors. The connector has a length of 1.25 inches and is suitable for a wide range of applications in electrical wiring. This connector features a reversible figure H shape that helps secure conductors effectively, improving efficiency during installations.

• Accommodates various conductor types: AL, CU, ACSR, AAAC, and steel.
• Features a durable aluminum construction to reduce corrosion.
• Length: 1.25 inches, ideal for overhead connections.

Product Highlights

Widely used in electrical applications, the YHO100 provides reliable connections for both run and tap conductors.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Part Number: YHO100

Technical Specifications

• Material: Aluminum
• Application: For copper, aluminum, or ACSR and compact conductors
• Catalog Number: YHO100
• Special Features: Includes bendable tabs for securing conductors, prefilled with PENETROX joint compound, and printed conductor ranges on the package.
• Country of Origin: United States
• UPC: 781810139004
• Conductor Size (Run): Ranges from 6 to 1 AWG
• Conductor Size (Tap): Ranges from 6 to 1 AWG
