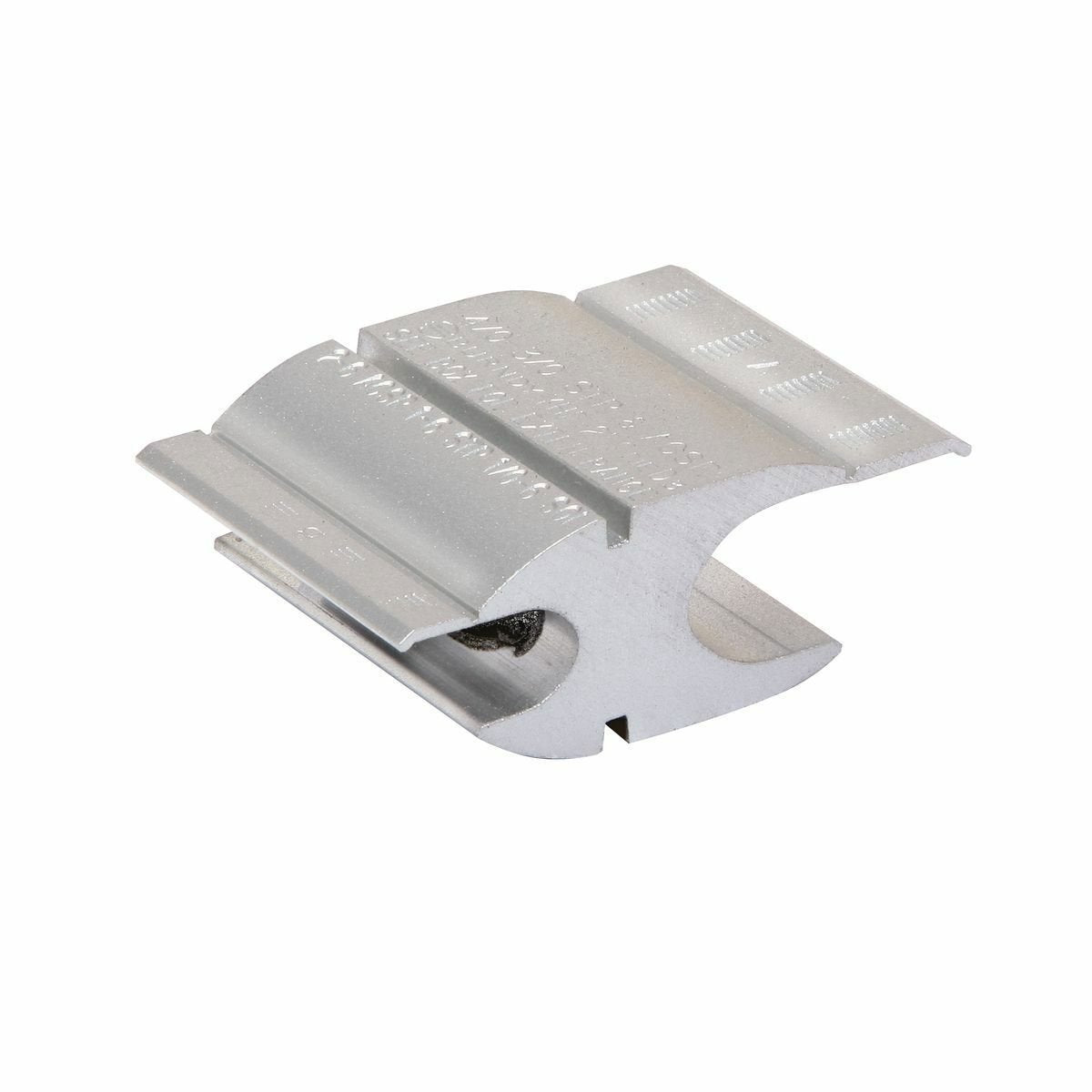

Burndy YHN550 Compression Line Tap for Copper, AL or ACSR and Compact Conductors

Product Description

The Burndy YHN550 is designed for use with copper, aluminum, or ACSR conductors. This compression line tap reliably connects conductors while maintaining performance and reducing corrosion.

• Compatible with conductor sizes from two over zero to four over zero AWG.
• Made from aluminum with features that minimize corrosion.
• Includes bendable tabs for secure connections.

Product Highlights

The YHN550 offers high versatility and reliability for electrical applications. Its design facilitates ease of use for line workers.

Product Information

Standard Information

• Brand: Burndy
• MPN: YHN550

Technical Specifications

• Catalog Number: YHN550
• Manufacturer: Burndy, a Hubbell affiliate
• Application: For copper, aluminum, or ACSR conductors
• Material: Aluminum
• Conductor Type: Aluminum stranded, copper stranded
• Die Index: N
• Installation Tool: Mechanical or hydraulic tooling
• Cable Diameter Range (tap): 0.41 - 0.505 inches
• Cable Diameter Range (run): 0.573 - 0.815 inches
• Conductor Size (tap range): 2/0 - 4/0 AWG
