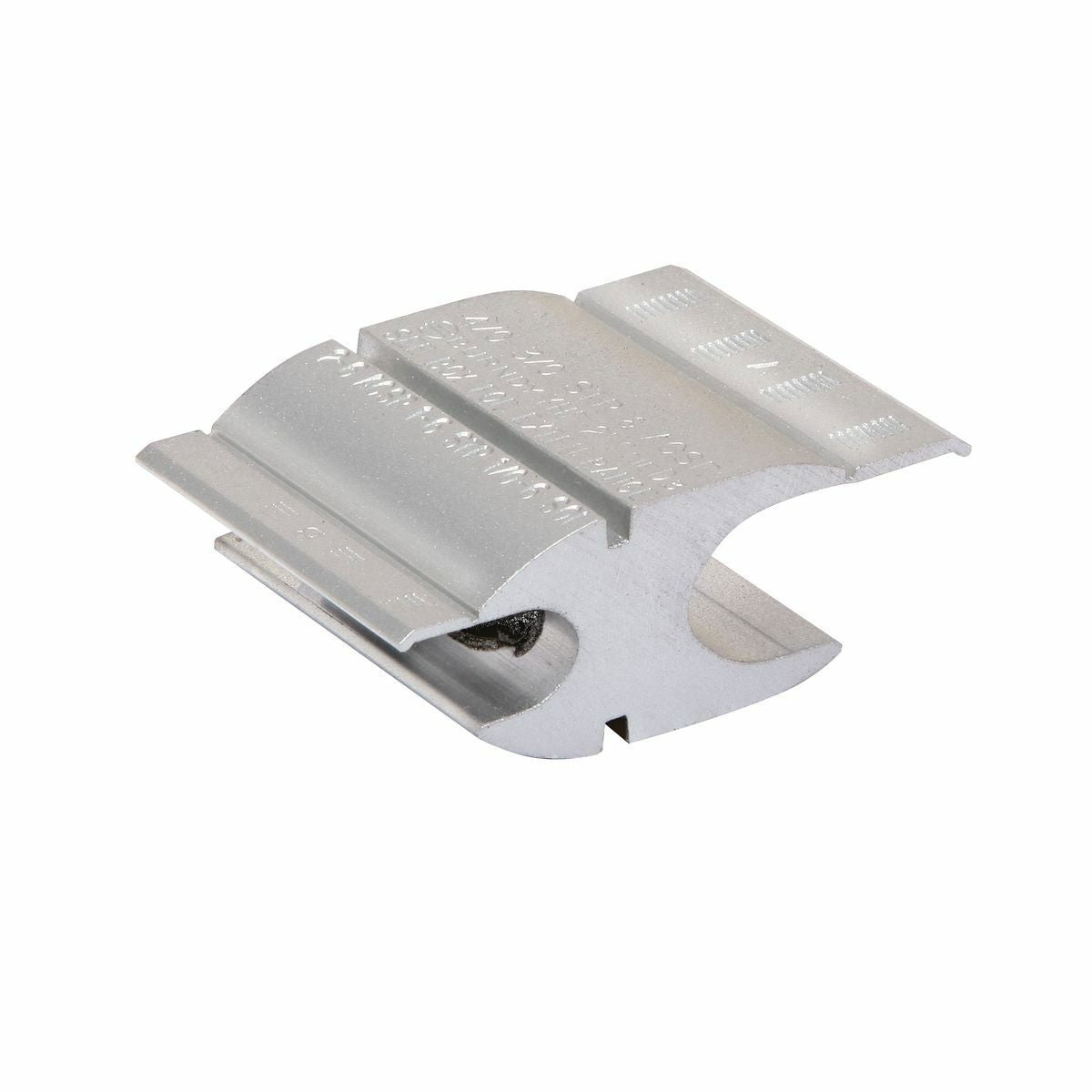

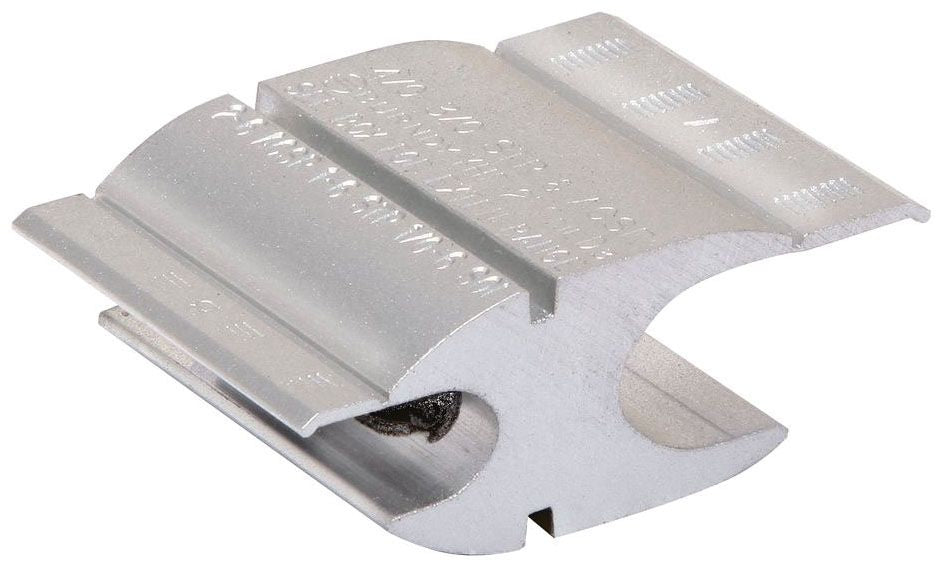

BURNDY YHN450 Compression Line Tap for Copper, AL or ACSR and Compact Conductors

Product Description

The BURNDY YHN450 is a Compression Line Tap designed for use with Copper, Aluminum, or ACSR conductors. This product allows for reliable electrical connections and is suitable for both run and tap conductors. It features a universal and reversible shape which simplifies installation and enhances functionality.

• Compatible with wire diameters ranging from zero point five two inches to zero point seven five inches.
• Made from aluminum to minimize corrosion effects.
• Easy installation with prefilled PENETROX Joint Compound for effective electrical contact.

Product Highlights

The BURNDY YHN450 line tap allows secure connections for high-performance electrical systems. It is widely used in utility and electrical contracting applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate
• Catalog Number: YHN450

Technical Specifications

• Material: Aluminum
• Application: For Copper, Aluminum or ACSR and Compact Conductors
• Conductor Diameter Range: Zero point five two inches to zero point seven five inches
• Conductor Size (run - Range): Four zero AWG - Four hundred KCMIL
• Country of Origin: Mexico
• UPC: 781810139400
• Installation Tooling: Mechanical or hydraulic
