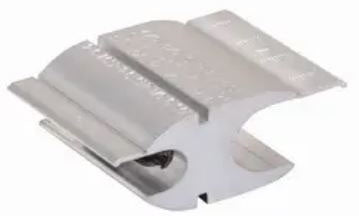

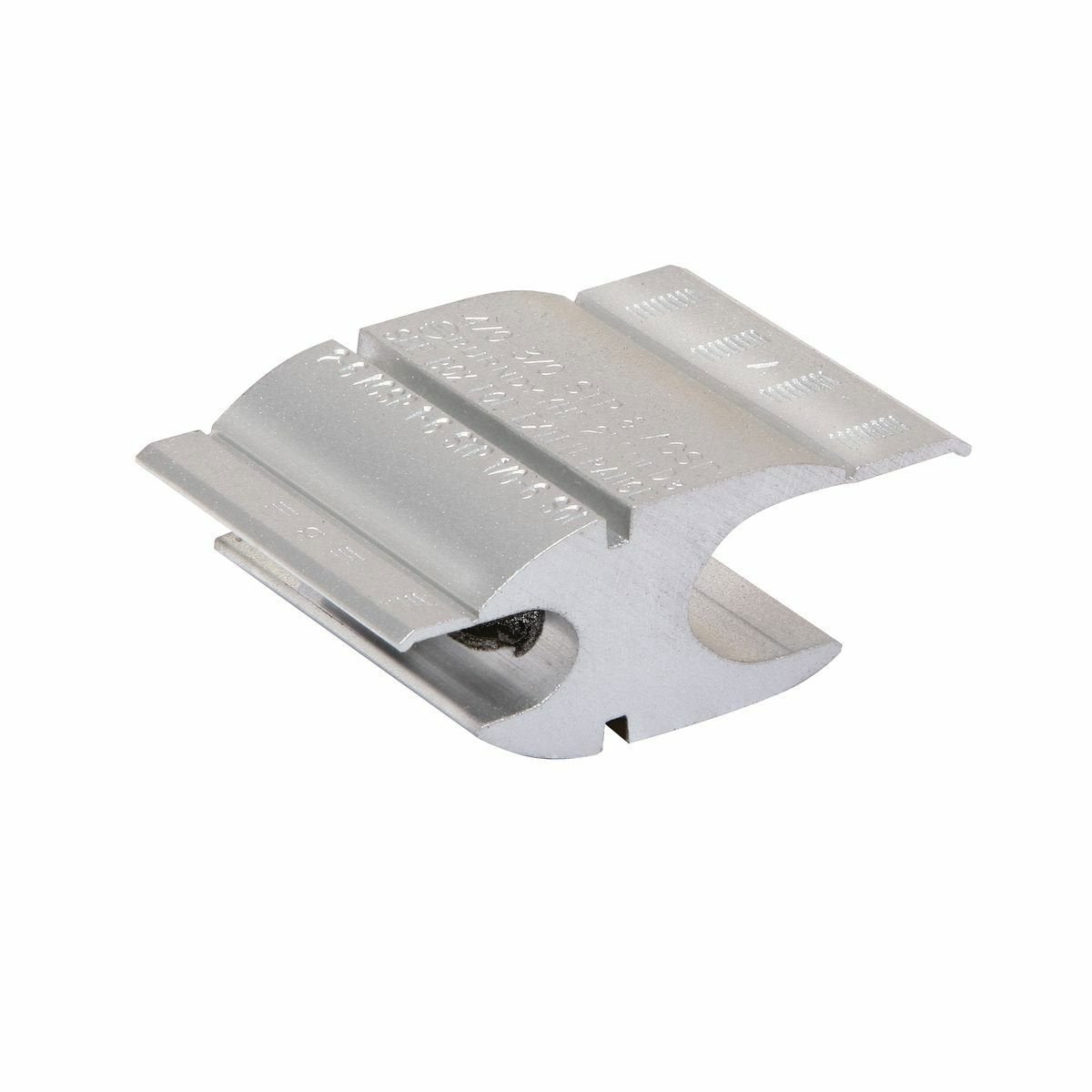

BURNDY YHD300 Compression Line Tap for Copper, AL or ACSR and Compact Conductors

Product Description

The BURNDY YHD300 is a compression line tap connector designed for copper, aluminum, ACSR, and compact conductors. This connector is suitable for a wire diameter range of zero point four seven five to zero point five six three inches.

• Compatible with various conductor types including copper and aluminum.
• Made from durable aluminum to minimize galvanic corrosion.
• Features a wide range of conductor sizes for flexibility in application.

Product Highlights

The YHD300 connector provides reliable connections, freeing the lineman's hands to work with installation tools.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YHD300
• Country of Origin: United States
• Material: Aluminum
• Application: For copper, aluminum, or ACSR and compact conductors
• Conductor Size Range: Tap: one AWG to three zero AWG; Run: two AWG to three hundred KCMIL
• Die Index: D3
• Special Features: Prefilled with PENETROX, massive design for corrosion resistance, clearly printed conductor ranges
• UPC: 781810139257
