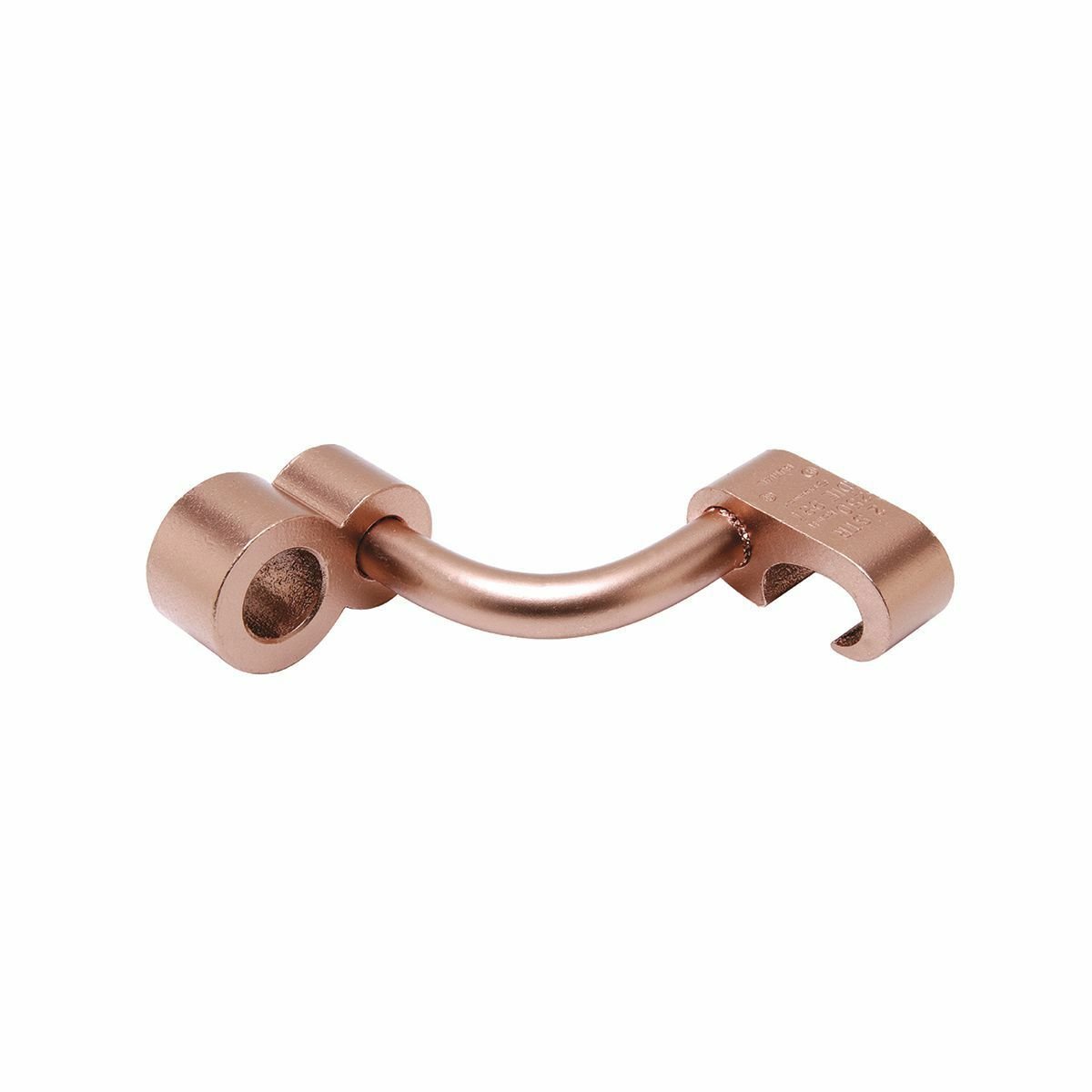

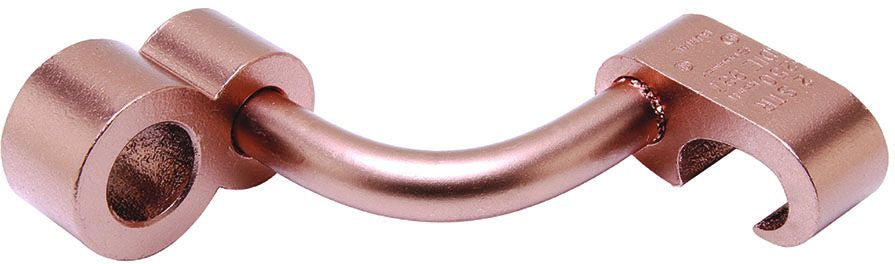

BURNDY YGLR29C58 Copper Compression Connector, Ground Rod to Grid, 2 AWG to 250 KCMIL

Product Description

The BURNDY YGLR29C58 is a copper compression connector designed for effective grounding applications. This connector links ground rods to grids with wire sizes ranging from two AWG stranded to two hundred fifty KCMIL. It is suitable for direct burial in earth and concrete, ensuring durability and reliability in various conditions.

• UL467 Listed for safety compliance
• Prefilled with PENETROX compound for enhanced conductivity
• Designed for high torque strength on ground rods

Product Highlights

This connector is ideal for grounding systems in electrical infrastructures, ensuring a secure and effective connection.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YGLR29C58
• Material: Copper
• Application: For direct burial in earth and concrete
• Ground Rod Size: 5/8 inch
• Conductor Type: Copperweld, stranded copper
• Die Index: 997 Element A, 1011 Element B
• Country of Origin: United States
