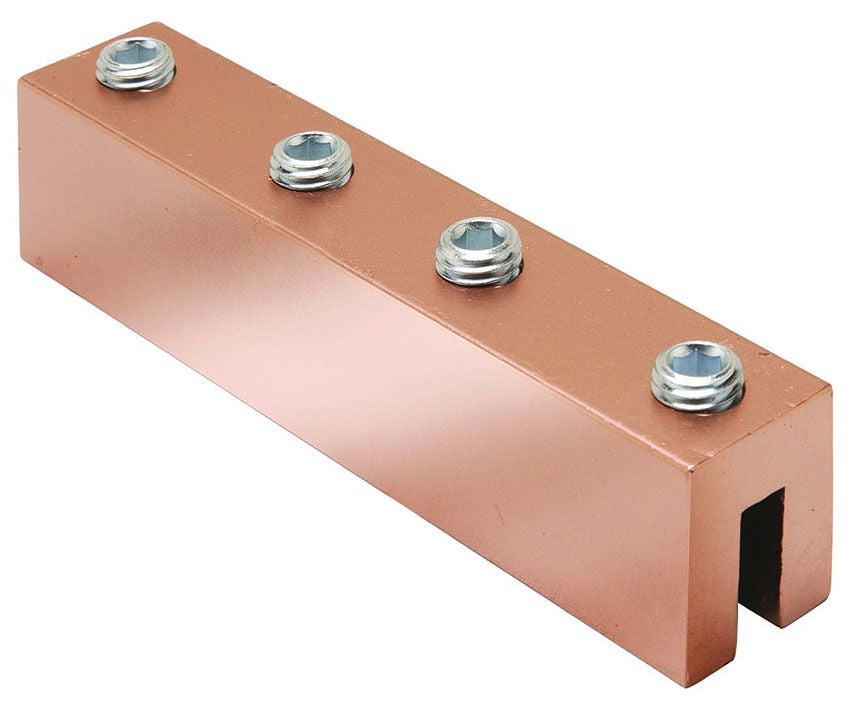

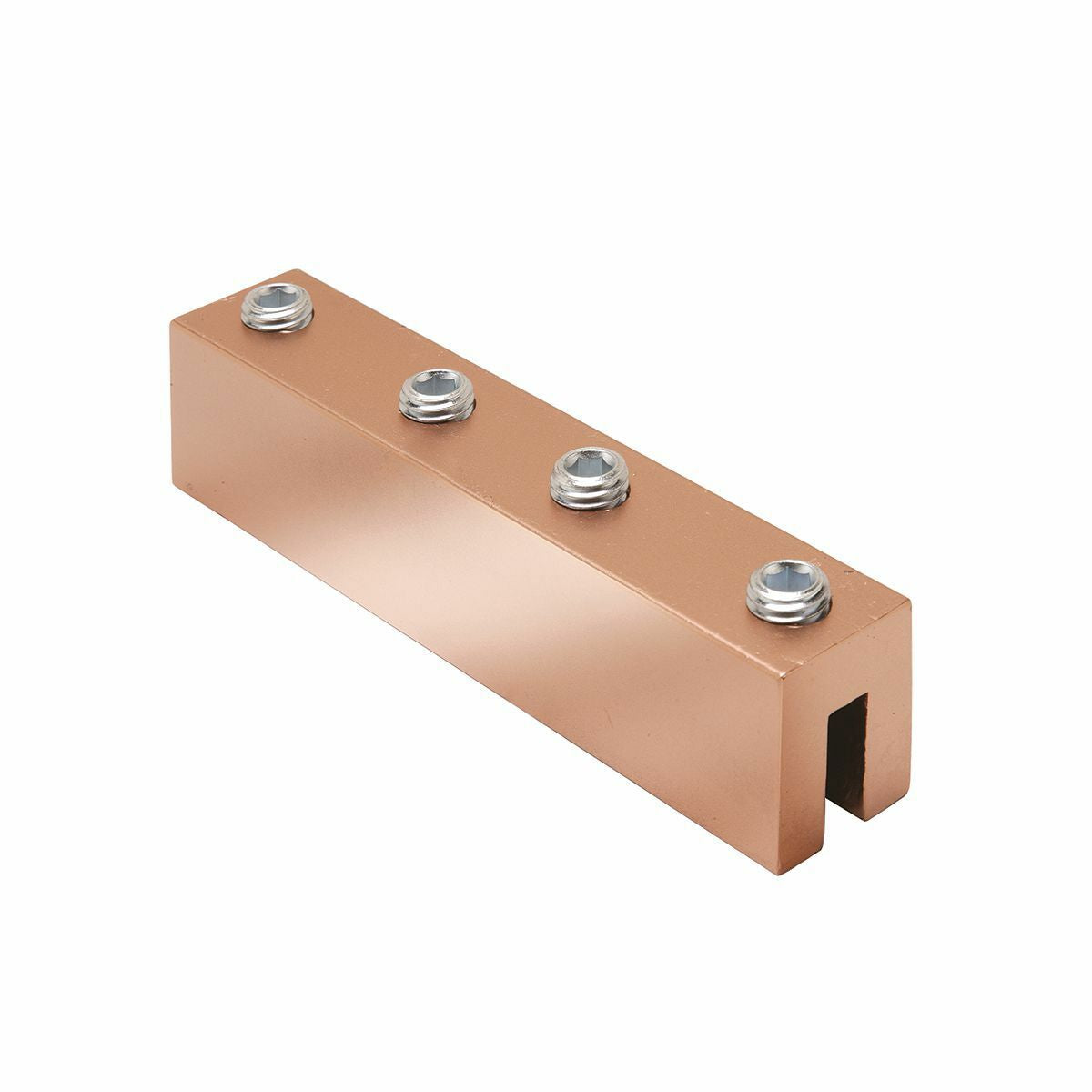

BURNDY YGIBW283382N Copper Compression Connector, Cable to Steel, 2 AWG - 4/0 AWG, Wide Flange, 0.25 - 0.338 Thickness, 2 holes, 1/2 Stud

Product Description

The BURNDY YGIBW283382N is a copper compression connector designed for connecting cables to steel. This connector is suitable for conductor sizes from two AWG to four OAWG. It features a wide flange and accommodates thicknesses ranging from 0.25 inches to 0.338 inches with two holes for mounting.

• Copper construction for high conductivity.
• Suitable for direct burial cables.
• Meets UL467 and IEEE 837 standards.

Product Highlights

This connector provides an irreversible compression ground connection. It is designed for attachment to structural steel standards or wide flange beams, ensuring a secure and lasting connection.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YGIBW283382N
• Material: Copper
• Application: For Direct Burial Cables
• Special Features: Irreversible compression, suitable for I-beam style
• Stud Size: 1/2 inch
• Thickness Range: 0.25 - 0.338 inches
• Length: 3 inches
• Standards: UL467; IEEE 837
