Product Description

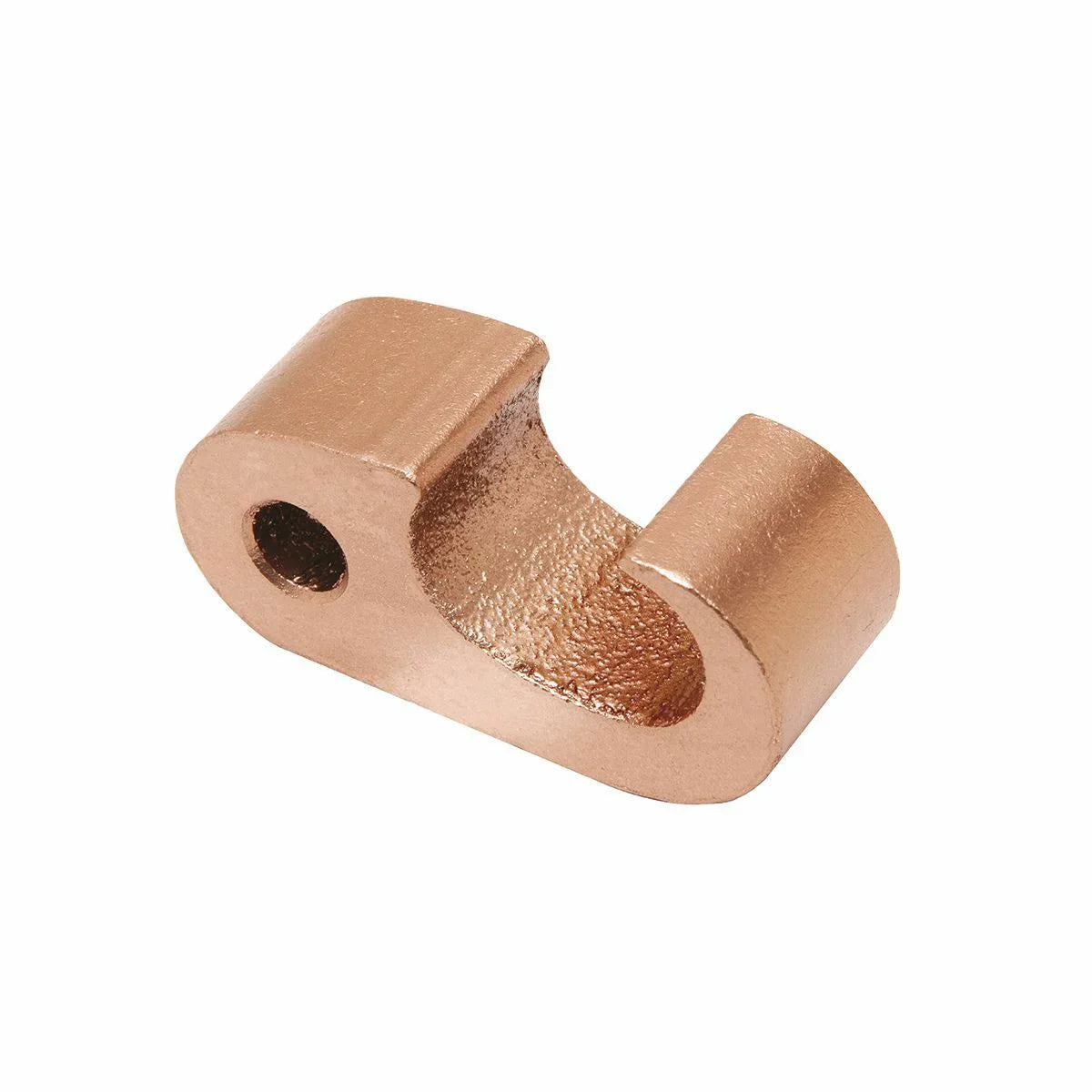

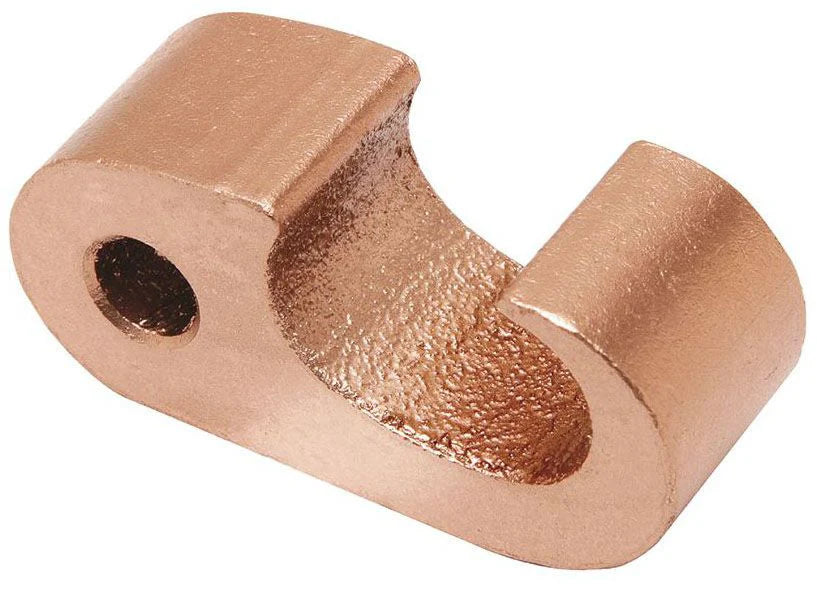

The BURNDY YGHP34C29 is a Cu Compression Ground Rod Connector designed for reliable electrical connections. This connector is suitable for connecting copper conductors with sizes from three aught (3/0 AWG) to two hundred fifty thousand circular mil (250 Kcmil). It accommodates rod diameters between five-eighths inch and three-quarters inch.
- Made from copper for enhanced conductivity.
- UL 467 listed for safety.
- Suitable for direct burial in earth and concrete.
Product Highlights
This product ensures a strong and permanent connection that can withstand harsh environmental conditions.
Product Information
Standard Information
-
Brand: BURNDY
-
Manufacturer: Burndy, a Hubbell affiliate
Technical Specifications
-
Catalog Number: YGHP34C29
-
Material: Copper
-
Application: For direct burial in earth and concrete
-
Conductor Size (tap range): 3/0 AWG - 250 Kcmil
-
Conductor Size (run range): 250 - 500 Kcmil
-
Rod Diameter: 5/8 - 3/4 inches
-
Country of Origin: United States
-
UPC: 781810220979
