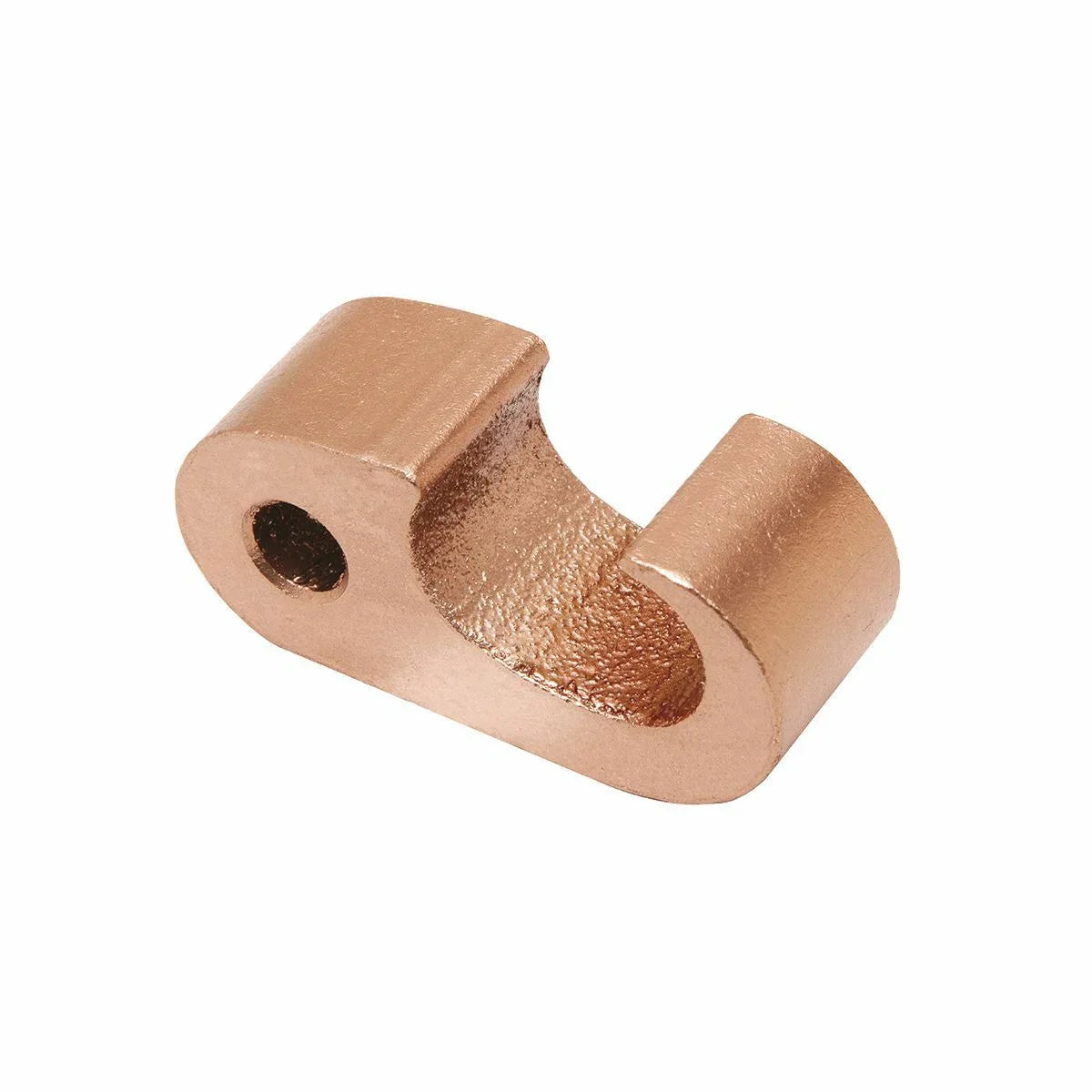

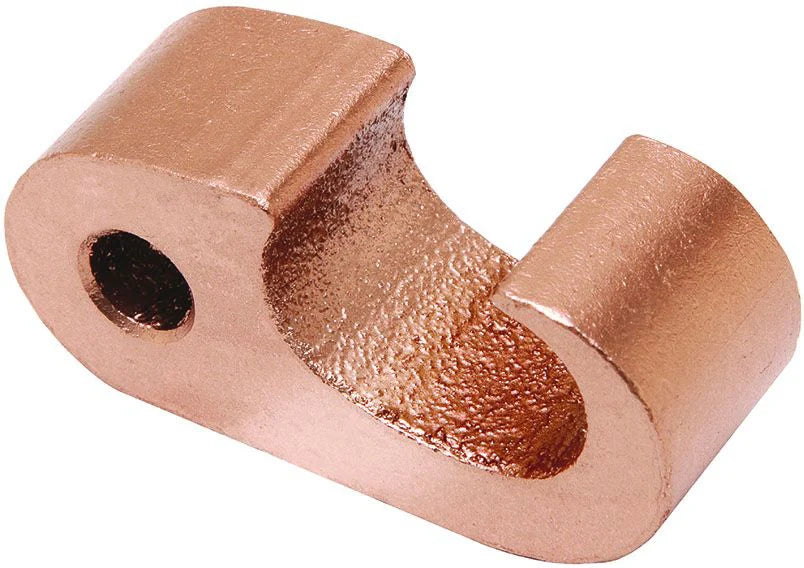

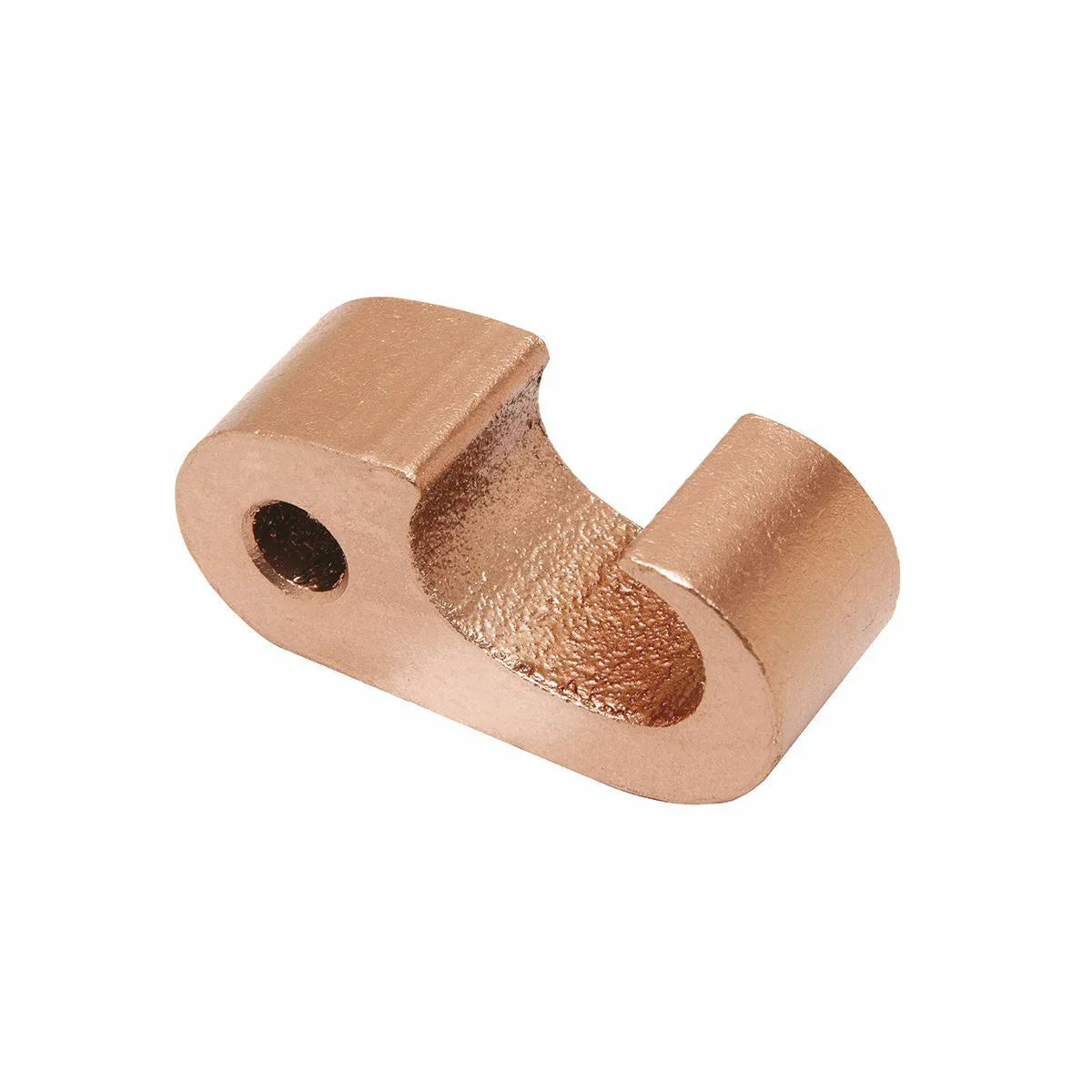

BURNDY YGHP34C2 Cu Compression Ground Rod Connector, #4 Sol - #2 Str, 5/8 - 3/4 Rod Dia.

Product Description

The BURNDY YGHP34C2 is a copper compression ground rod connector. It is designed for use with #4 solid to #2 stranded conductors and accommodates ground rods with diameters ranging from five eights inch to three quarters inch.

• Rated for direct burial in earth and concrete
• Interchangeable die sets for various conductor sizes
• UL467 listed for safety and reliability

Product Highlights

This connector features an irreversible compression tap that can be used as a tap or splice connector. It is suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YGHP34C2
• Material: Copper
• Application: For direct burial in earth and concrete
• Country of Origin: United States
• Made in USA: Yes
• Conductor Size Range (Tap): #4 AWG to #2 AWG
• Conductor Size Range (Run): 250 KCMIL to 500 KCMIL
• Special Features: Includes tools and die sets for various conductor sizes
• UPC: 781810220955
