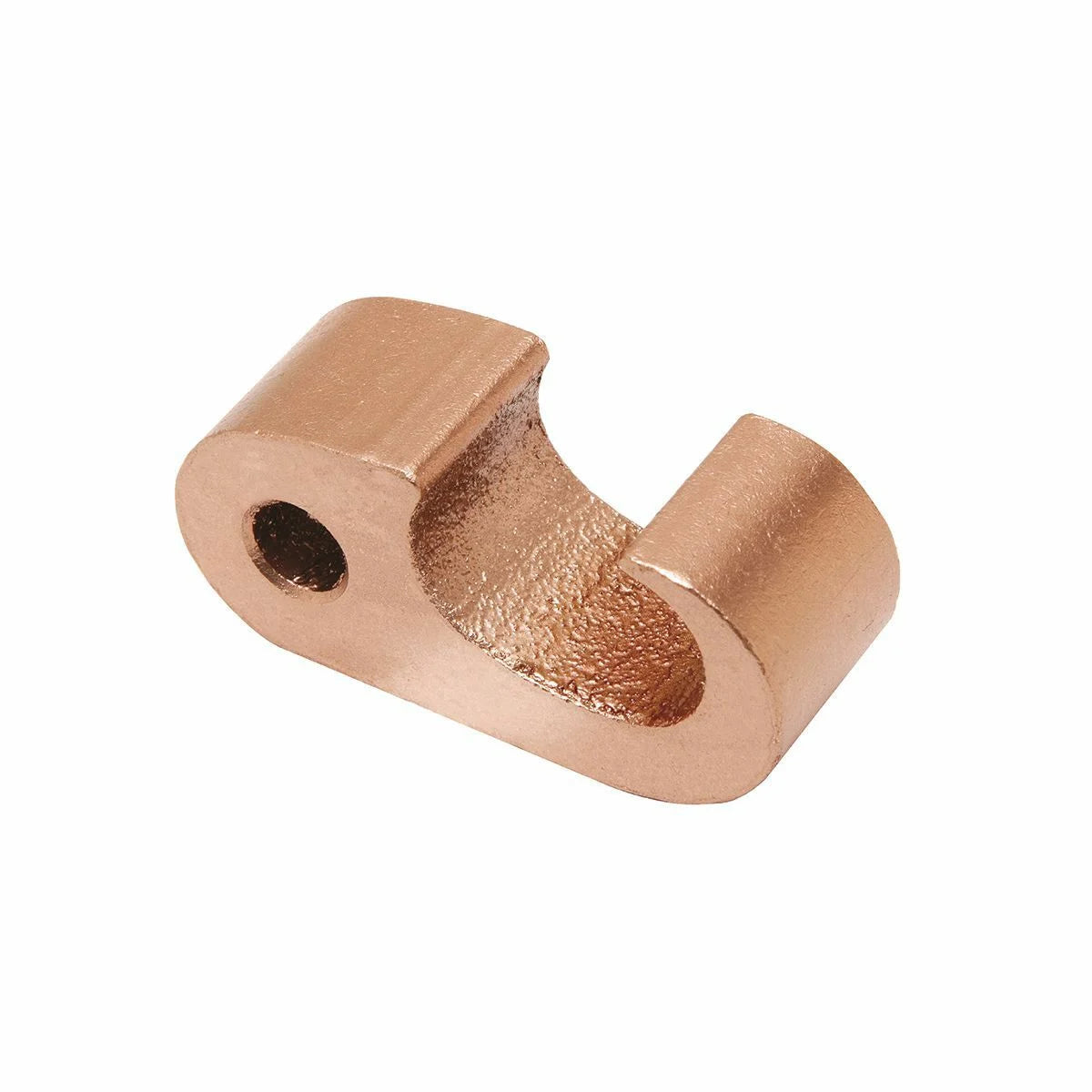

BURNDY YGHP29C29 CU Compression Ground Rod Connector 3/0 Str - 250 Kcmil 1/2 - 5/8 Rod Dia.

Product Description

The BURNDY YGHP29C29 is a copper compression ground rod connector designed for use with wire terminations. This model accommodates a conductor range from eight AWG solid to five hundred Kcmil and is suitable for direct burial applications in both earth and concrete.

• Ideal for grounding applications.
• UL467 listed for safety and reliability.
• Compatible with various rod sizes ranging from one half to five eighths inches in diameter.

Product Highlights

Highly functional ground rod connector with multiple connection options.

Product Information

Standard Information

• Brand: BURNDY
• MPN: YGHP29C29

Technical Specifications

• Catalog Number: YGHP29C29
• Manufacturer: Burndy, a Hubbell affiliate
• Application: For direct burial in earth and concrete
• Material: Copper
• Special Features: Irreversible compression design, accommodates up to five hundred Kcmil
• Country of Origin: United States
• UPC: 781810220948
• Item Type: Taps
• Cross Reference Products: GGC-4
