BURNDY YGHC34C34 Copper Compression C Connector, 300-500 kcmil (Run & Tap)

Product Description

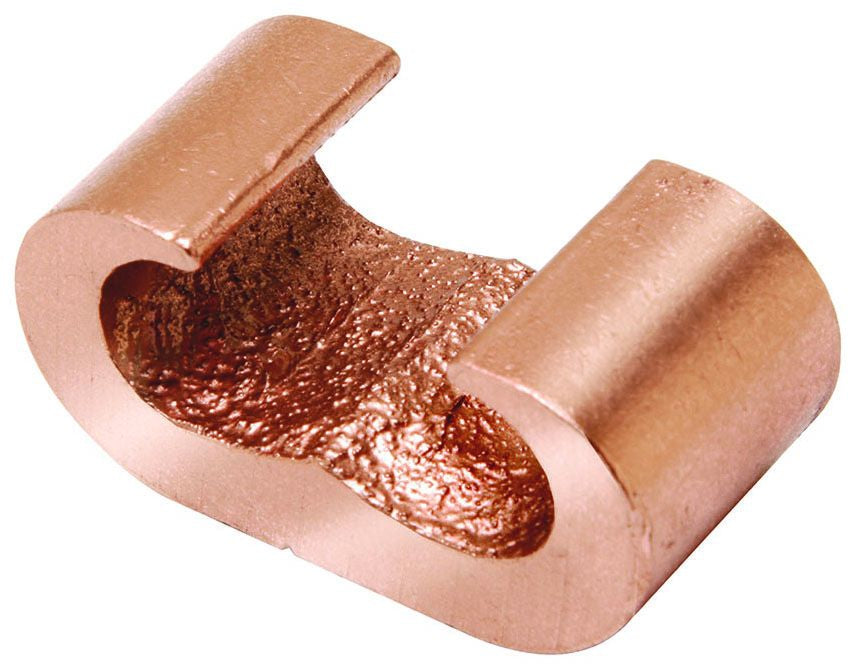

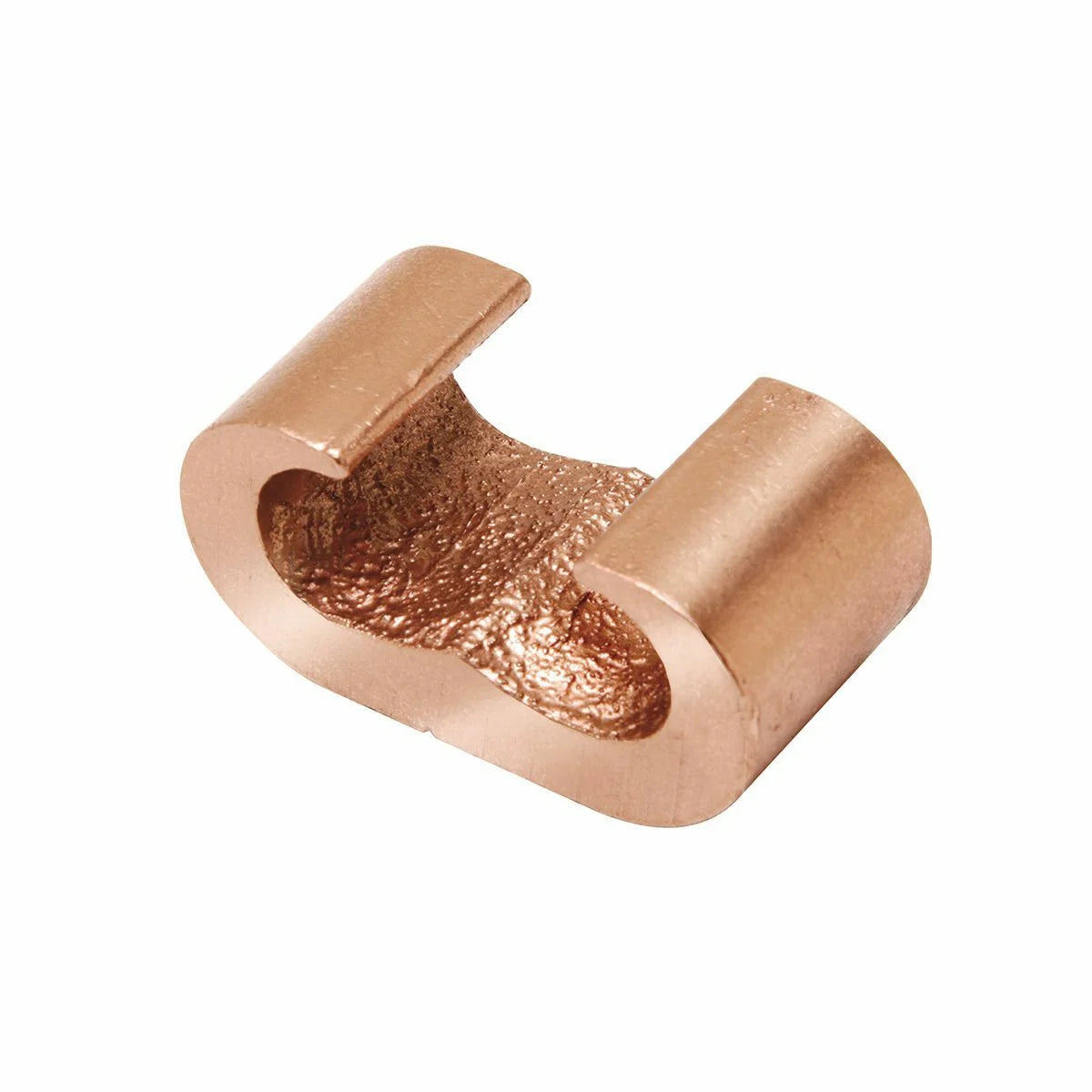

The BURNDY YGHC34C34 is a copper compression C connector designed for use with cables ranging from three hundred to five hundred kcmil. This connector is suitable for direct burial applications and supports a wide variety of cable types.

• Irreversible compression design for secure connections.
• UL467 listed for direct burial in earth or concrete.
• Compatible with multiple cable combinations including #6 AWG solid through five hundred KCMIL.

Product Highlights

Built for reliability, the YGHC34C34 connects cables effectively and is pre-filled with PENETROX compound for optimal performance.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YGHC34C34
• Material: Copper
• Application: For Direct Burial Cables
• Size Range: 300 - 500 KCMIL
• Approvals: UL 467, UL 486A/B
• Shape: C
• Die Index: 1011
• Conductor Type: Commercial stranded copper, Metric copper
