Burndy YGHC26C2 Copper Compression C Connector 1 - 2/0 AWG(Str) 3/8 Rod (Run) & 6 AWG(Sol)- 2 AWG(Str) (Tap)

Product Description

The Burndy YGHC26C2 is a copper compression C connector designed for proper connections in electrical systems. This product is engineered to accommodate a range of conductor sizes from one AWG to two over zero AWG for stranded conductors, and from six AWG solid to two AWG stranded for taps. It is suitable for use in direct burial applications.

• Manufactured by Burndy, a trusted name in connections.
• UL Listed and CSA certified for safety and reliability.
• Prefilled with PENETROX compound for optimal conductivity.

Product Highlights

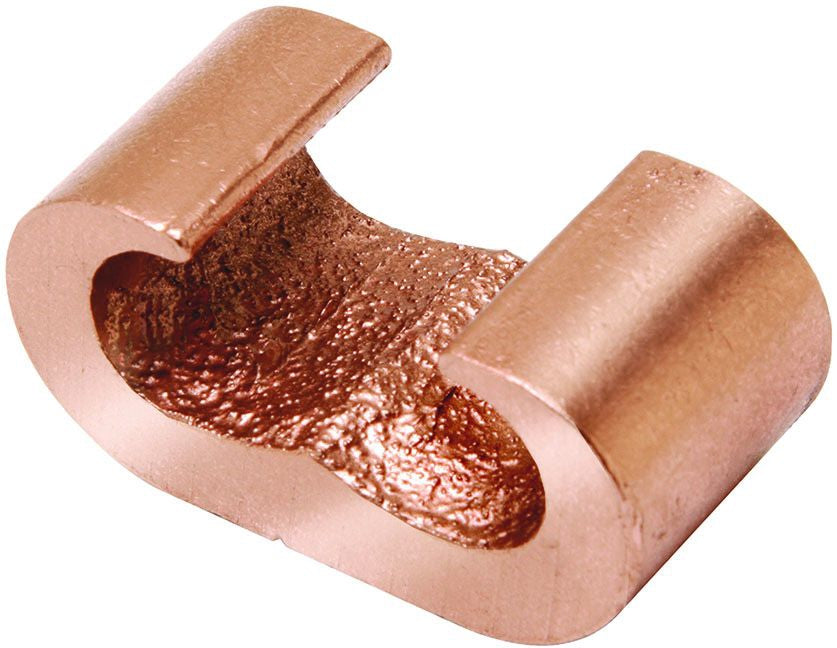

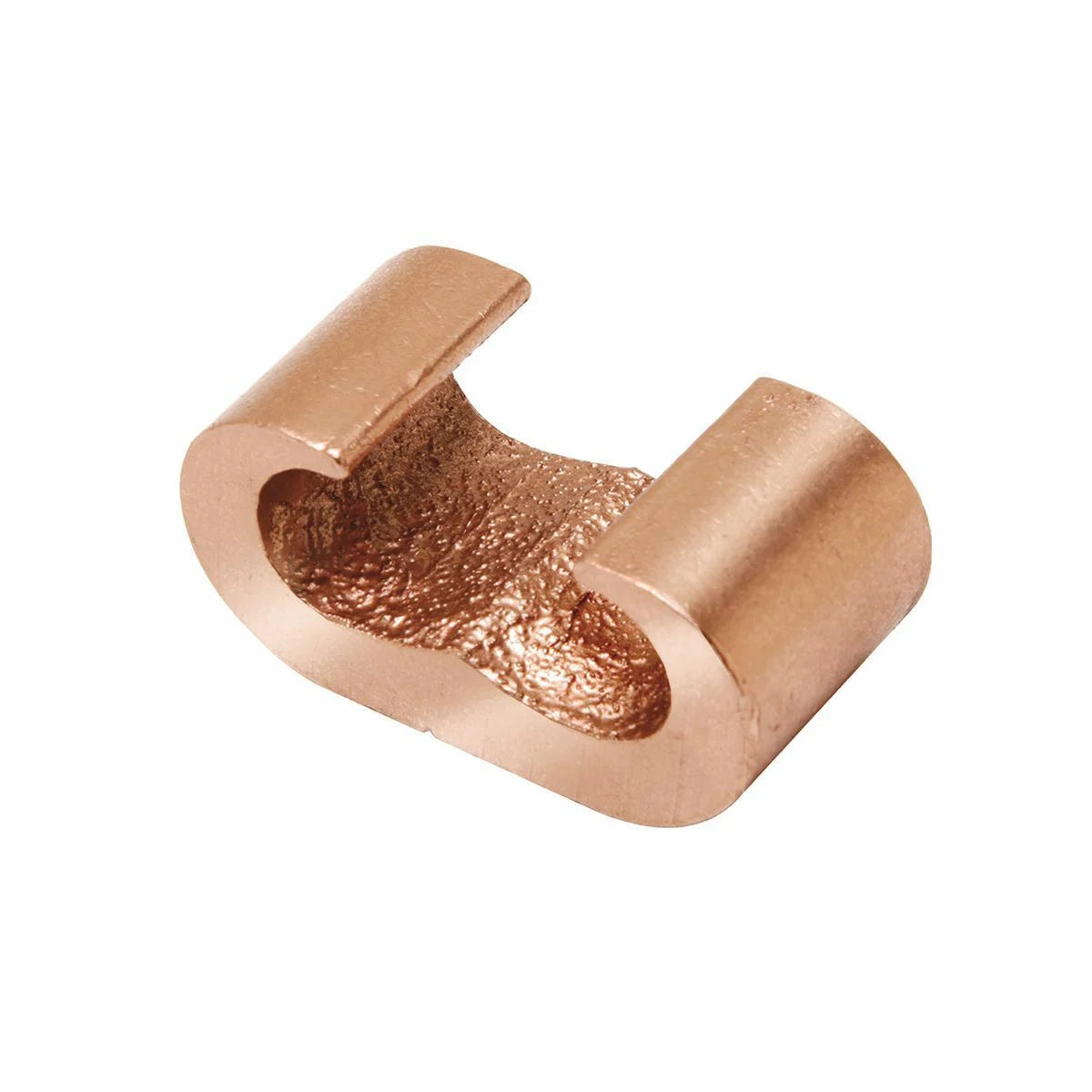

This connector is designed with a C-shaped opening that allows for easy placement of two continuous parallel cables into the conductor groove, ensuring a secure and reliable connection.

Product Information

Standard Information

• Catalog Number: YGHC26C2
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Application: For direct burial cables
• Material: Copper
• Approval: UL 96/467, CSA
• Rod Size: 3/8 inch
• Item Type: Taps
• Country of Origin: United States
• Special Features: Irreversible compression connections, accommodates various cable combinations
• Cross Reference Products: CTP202, BC202
