BURNDY YGHA342N Copper Compression Lug Heavy Duty 2 Hole w/ Inspection Probe Hole 500 kcmil

Product Description

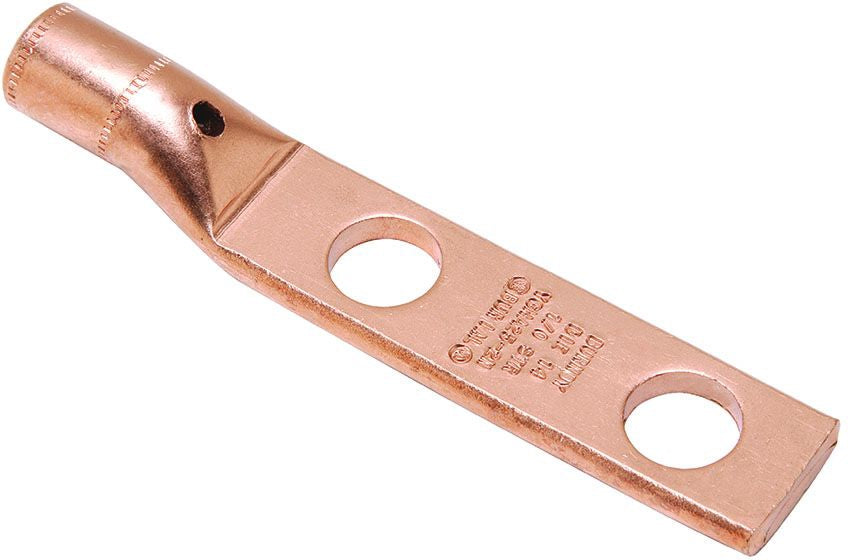

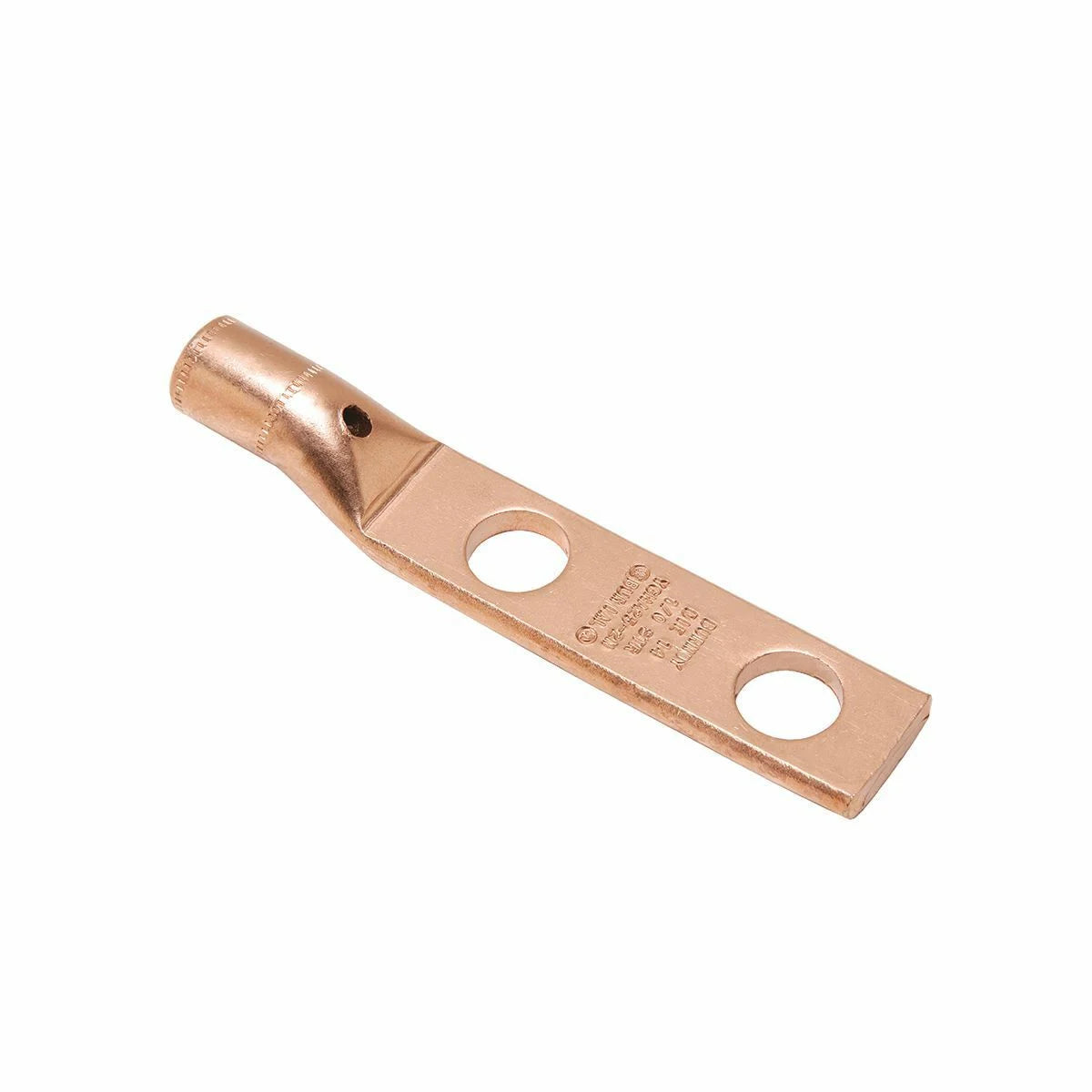

The BURNDY YGHA342N is a copper compression lug designed for applications requiring strong and reliable connections. This product features a heavy-duty construction with two holes and an inspection probe hole. Ideal for grounding applications and direct burial in earth or concrete, the lug accommodates conductor sizes up to five hundred kcmil.

• Heavy-duty copper construction
• UL467 and UL486A listed
• Includes inspection probe hole

Product Highlights

This lug is suitable for high mechanical stress situations and meets industry standards, ensuring safe operation in various environments.

Product Information

Standard Information

• Catalog Number: YGHA342N
• Brand: BURNDY

Technical Specifications

• Material: Copper
• Application: For direct burial in earth or concrete, grounding applications
• Size: Conductor size 500 kcmil
• Number of Pad Holes: 2
• Pad Hole Spacing: 1.75 inches
• Stud Size: 1/2 inches
• Overall Length: 5.42 inches
• Country of Origin: United States
