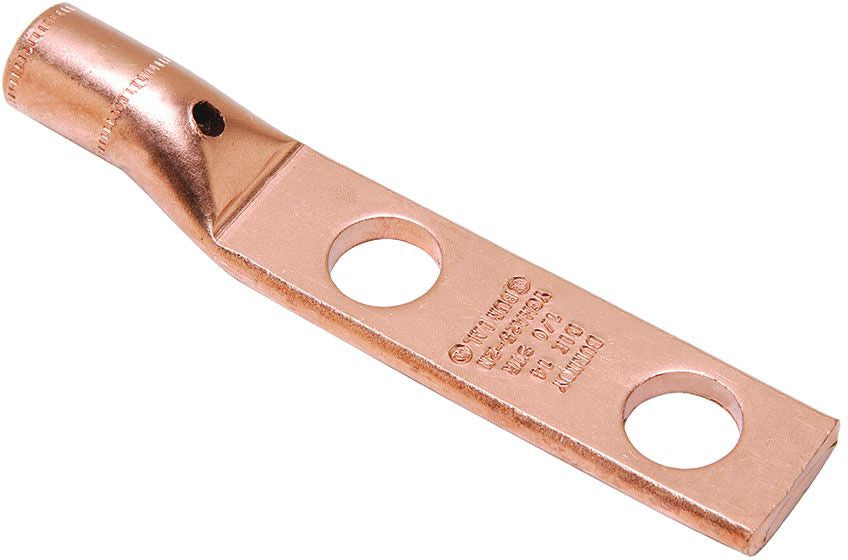

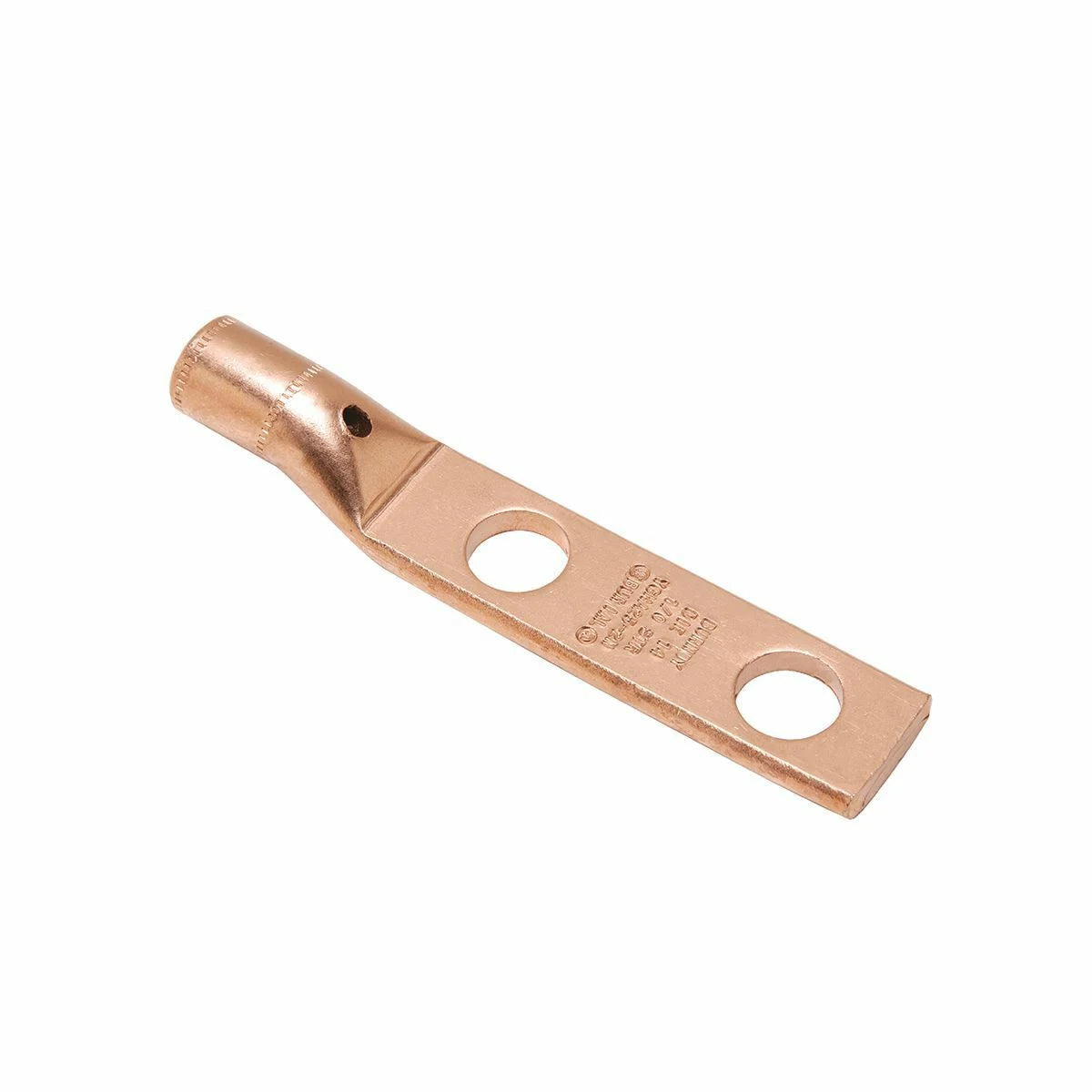

BURNDY YGHA262N Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe, 2/0 AWG, 1/2 Stud, 1-3/4 Stud Hole Spacing

Product Description

The BURNDY YGHA262N is a heavy-duty copper compression lug designed for secure connections in grounding applications. This product features two holes for mounting and includes an inspection probe for proper cable insertion.

• Heavy-duty construction suitable for high mechanical stress
• UL467 and UL486A listed for safe use in grounding applications
• Designed for direct burial in earth or concrete

Product Highlights

The BURNDY YGHA262N ensures reliable electrical connections and is widely used in grounding installations due to its robust design and features.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YGHA262N
• Material: Copper
• Application: For direct burial in earth or concrete, grounding applications
• Special Features: Heavy-duty HYLUG irreversible compression terminal; inspection probe hole; prefilled with PENETROX compound
• Standard Compliance: UL467; UL486A-486B; IEEE 837
• Die Index: 15
• Stud Size: 1/2 inch
• Pad Size: 3 inches long by 0.97 inches wide
