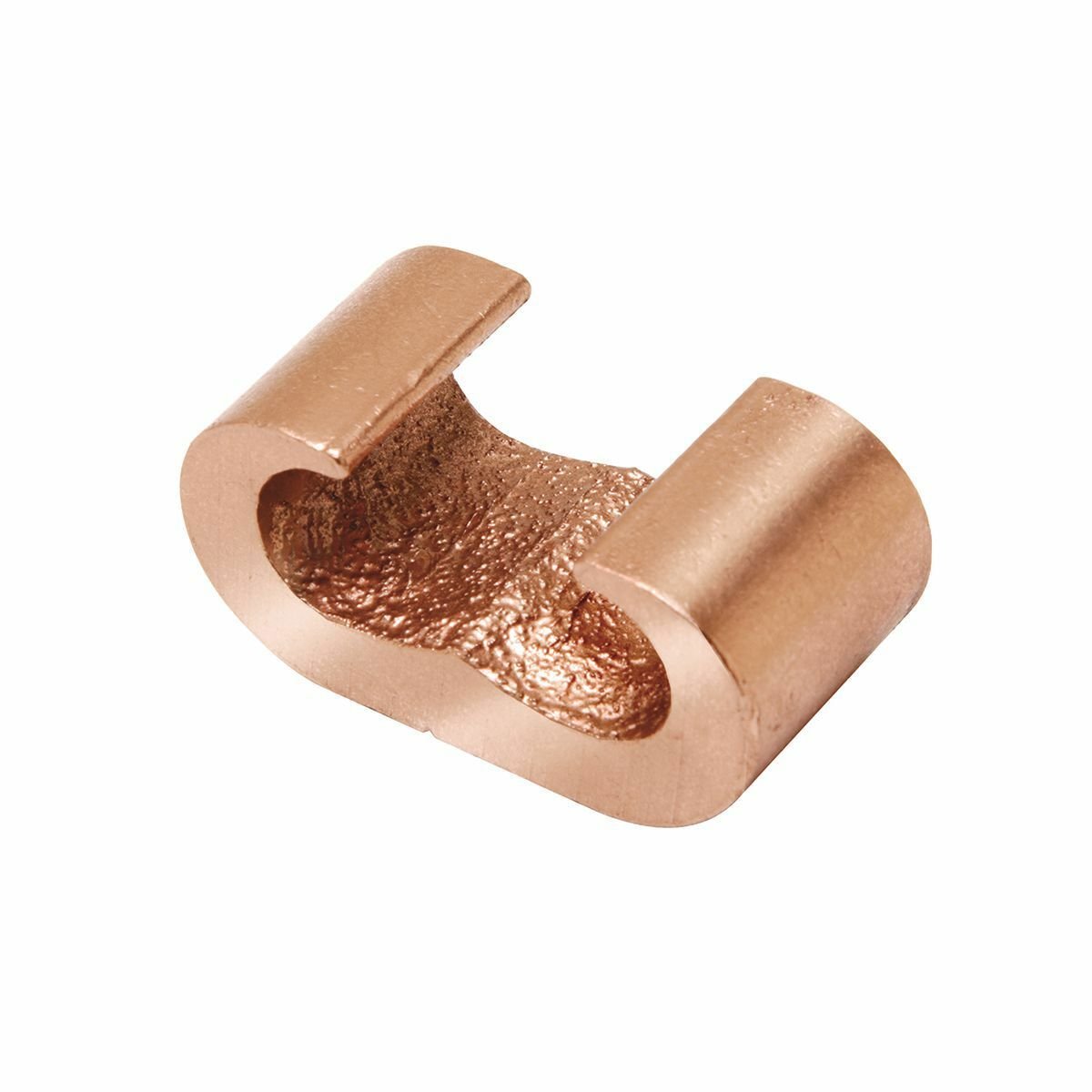

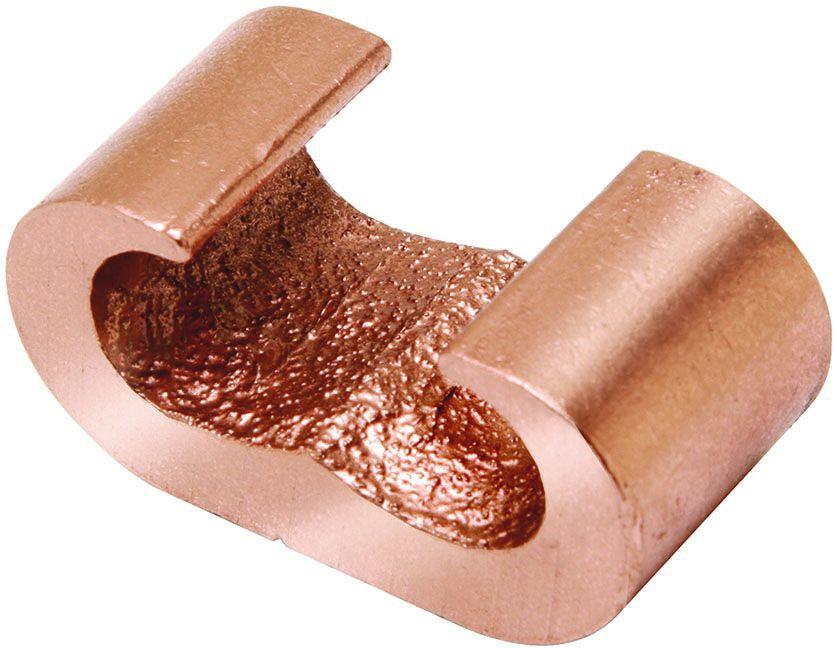

Burndy YGC6C6 Copper Crimpit Compression C Connector .62 In L 6 Sol 6 Sol Run 6 Sol 6 Sol Tap

Product Description

The Burndy YGC6C6 is a copper crimpit compression C connector. It is designed for maximum run conductor size of six AWG solid or stranded wire and can also accommodate tap connections of the same size. This connector is suited for direct burial in earth or concrete, making it ideal for grounding applications.

• UL467 listed for direct burial use.
• Prefilled with PENETROX E2 oxide inhibitor.
• Compatible with several tools and die sets for proper crimping.

Product Highlights

This connector provides reliable electrical connections and is built to withstand environmental exposure during burial.

Product Information

Standard Information

• Catalog Number: YGC6C6
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Country of Origin: United States
• Application: For direct burial in earth or concrete
• Made in USA: Yes
• Brand: Burndy
• Sub Brand: Hyground, Crimpit
• Standard: UL467
• UPC: 781810102626
