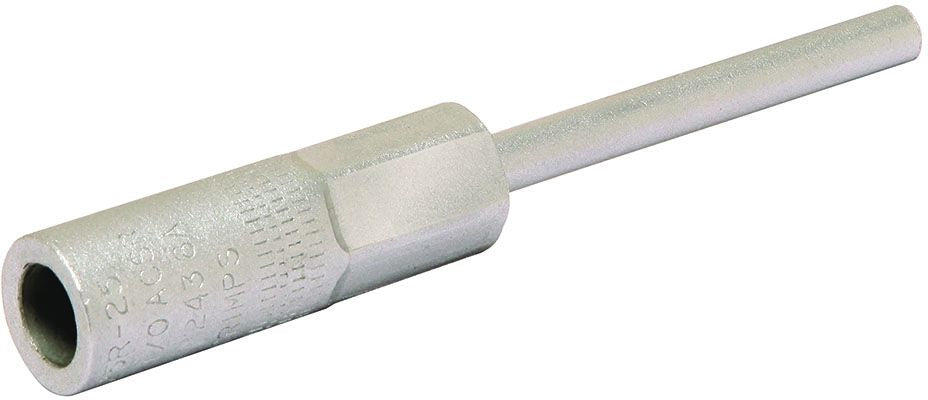

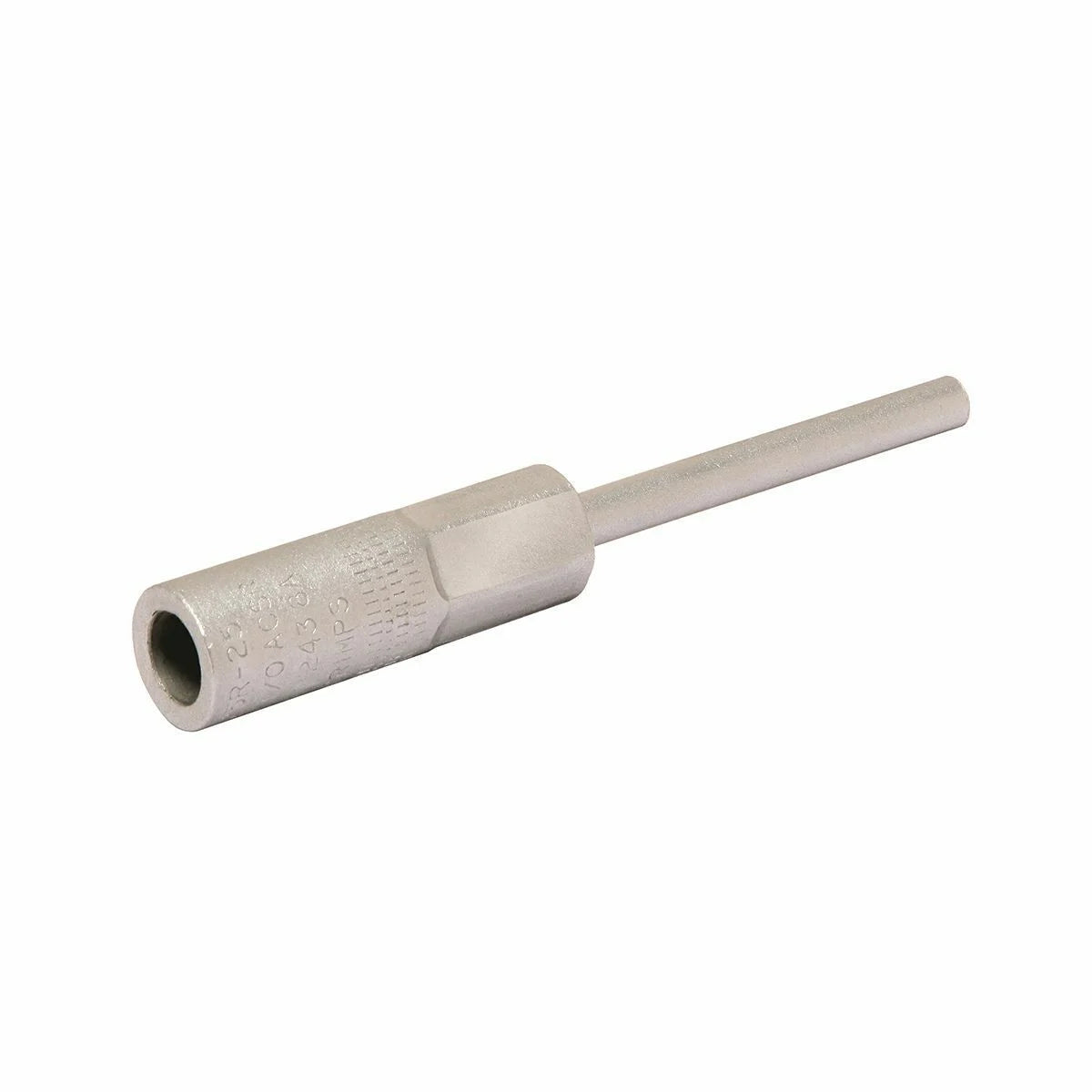

Burndy YE2R25 Terminal Plug for AL and ACSR 4.62 in Length

Product Description

The Burndy YE2R25 is a terminal plug designed for terminating aluminum or ACSR cable in various applications like cut-outs and transformers. This product is made from aluminum and features a tin-plated copper plug. It is suited for use with #1-#2 aluminum and #2 ACSR cables.

• Length: 4.62 inches
• Plug may be bent for easier insertion
• Die index: BG or 243

Product Highlights

The terminal plug accommodates different cable sizes and is pre-filled with joint compound for better conductivity.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YE2R25
• Material: Aluminum
• Application: For terminating aluminum or ACSR cable at cut-out, transformer, and arrestor
• Plug Diameter: 2 AWG Solid
• Plug Length: 2.5 inches
• UPC: 781810154106
• Special Features: Pre-filled terminals with joint compound, can accommodate various tools
