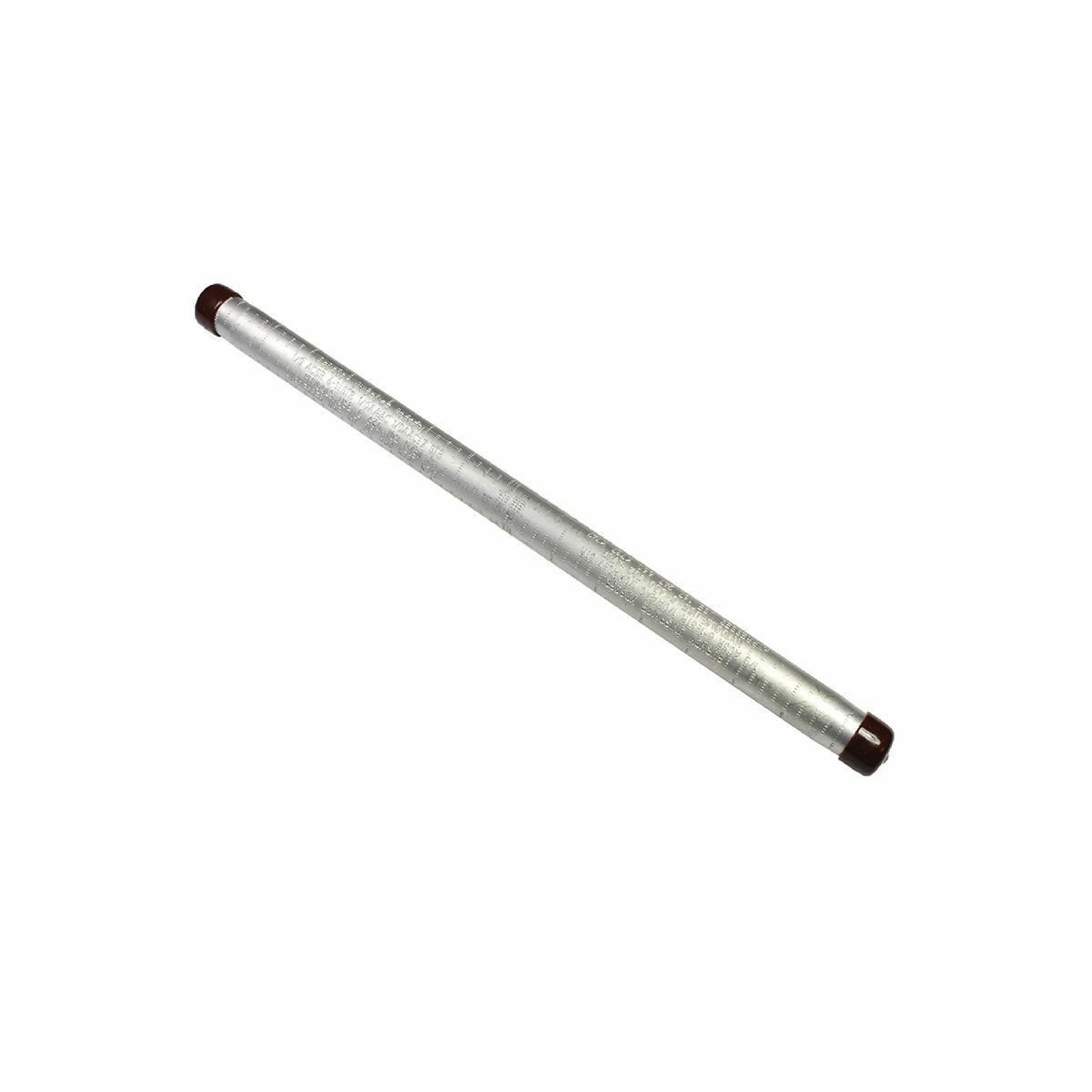

Burndy YDS4RL al Overhead Compression Splice - Single Sleeve Full Tension, Accommodates: AAC, ACSR and AAC, 11-7/8 in L

Product Description

The BURNDY YDS4RL is an aluminum overhead compression splice, a single-sleeve full-tension connector that accommodates AAC, ACSR, and AAC conductors. It features a single-sleeve design for splicing ACSR, simplifying the process like splicing all aluminum conductors. This splice is pre-filled with PENETROX joint compound and capped. It is suitable for ACSR, aluminum, 6201, and 5005 conductors.

• Single-Sleeve Aluminum UNISPLICE Designed To Splice ACSR As Simply As All Aluminum
• Pre-Filled With PENETROX Joint Compound And Capped
• Eliminates Strand Stripping

Product Highlights

Simplifies hot-line splicing with electrical and mechanical performance equal to two-piece sleeves. It eliminates strand stripping and the need for separate steel sleeves.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YDS4RL
• Country of Origin: USA

Technical Specifications

• Catalog Number: YDS4RL
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Sub Brand: UNISPLICE
• Country of Origin: United States
• Made in USA: Yes
• Application: For ACSR, Aluminum, 6201 And 5005 Conductors
• Material: Aluminum
• UPC: 781810820643
• GTIN: 00781810820643
• Item Type: YDS-RL
• Type: YDS-RL
• ACSR Conductor Size: 4 AWG
• AL/CU Conductor Size: 4 AWG
• AAC Conductor Size: 48.69 KCMIL
• Die Index: BG/243/687
• Body Material: Aluminum
• Approval: RUS
• RoHS Compatible: True
• Applications: For ACSR, Aluminum, 6201 and 5005 Conductors
• Conductor Size: 4 AWG (7-1) ACSR, (6-1) 6201, 5005, AAC, 4 (7) AWG
• Connection Type: Splice
• Contact Material: Aluminum
• Plated?: No
• Plating Type: Unplated
• Overall Length: 11.06 in
• Width: 0.67 in
• Buy American Compliant: Y
• CSA: No
• EU RoHS Indicator: Yes
• Plated: N
• Prefilled Oxide Inhibitor: Y
• Trade Name: UNISPLICE™
• Dimension - B Length inch: 11.06 in
• Dimension - L Length Overall mm: 281 mm
• Dimension - Length Overall inch: 11.06 in
• Dimension - Outside Diameter inch: 0.67 in
• Conductor - AAAC 5005 Size: 48.69 (7) kcmil
• Conductor - AAAC 5005 Size Range: 48.69 (7) kcmil
• Conductor - AAAC 6201 Size: 48.69 (7) kcmil
• Conductor - AAAC 6201 Size Range: 48.69 (7) kcmil
• Conductor - ACSR Str Size: 4 (6/1) Swan AWG;4 (7/1) Swanate AWG
• Conductor - ACSR Str Size Range: 4 (6/1) Swan AWG-4 (7/1) Swanate AWG
• Conductor - AL Str Size: 4 AWG
• Conductor - AL Str Size Range: 4 AWG
• Conductor Type: ACSR C Str-Size AL C Str-Size
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: No
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Standards - RoHS Compliance Status: CM
• UL Listed: No
• Number of Ports: 2
• Termination Type: Compression
• Manufacturer Part Number: YDS4RL
• Product Series: YDS-RL/YDS-LT
• Family Series: Burndy Terminals, YDS-RL/YDS-LT Series
• Description: 4 ACSR 1 PIECE SPLICE
• Terminal Type: Butt Connector
• Height: 0.67 Inch
