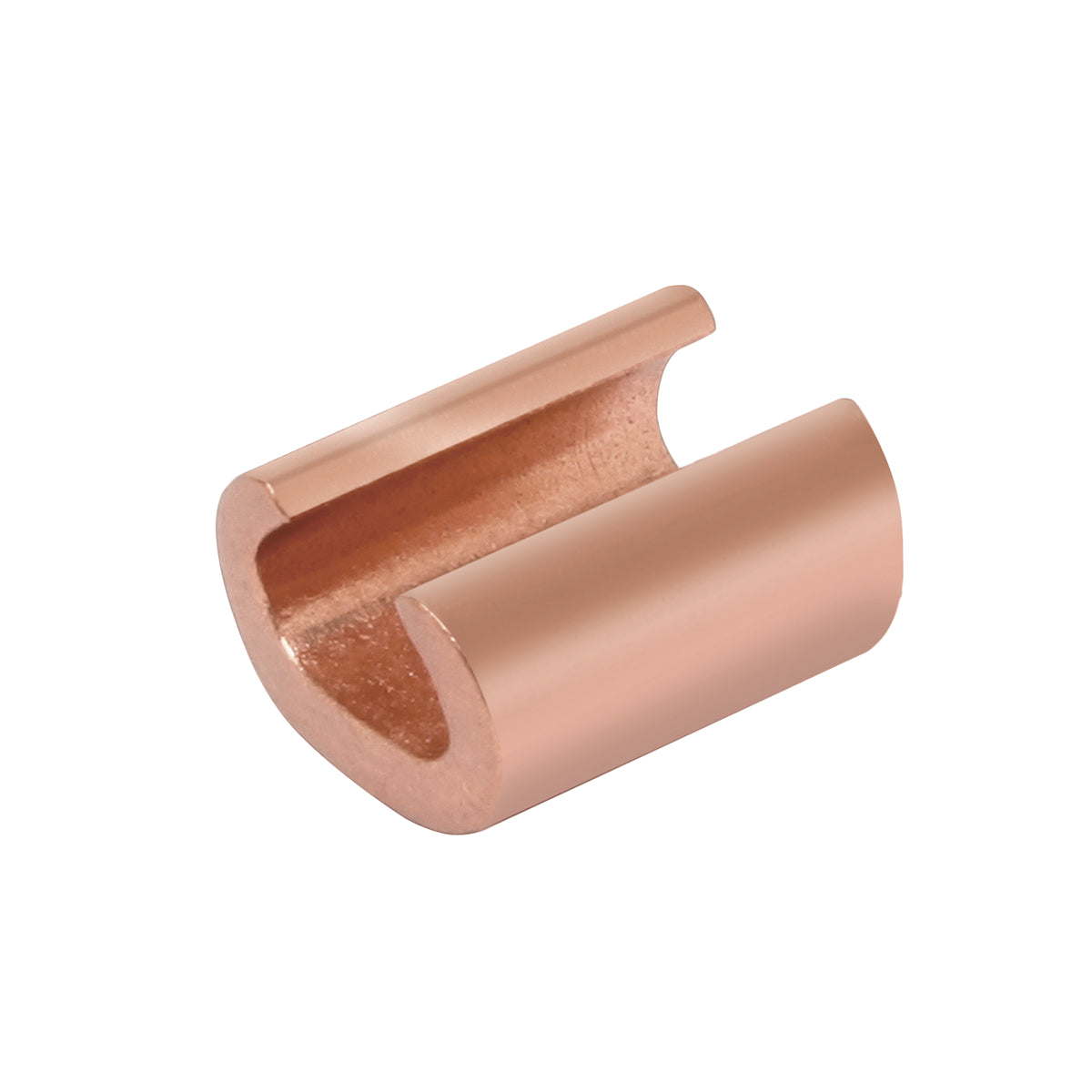

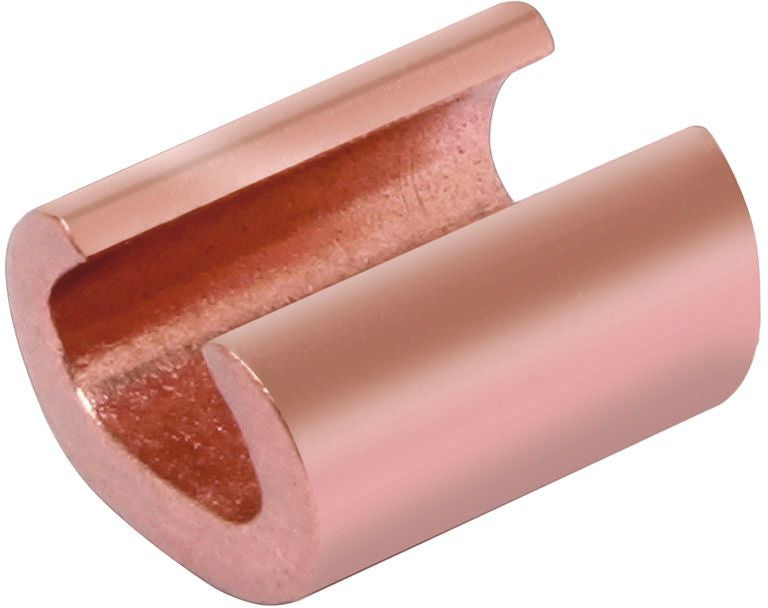

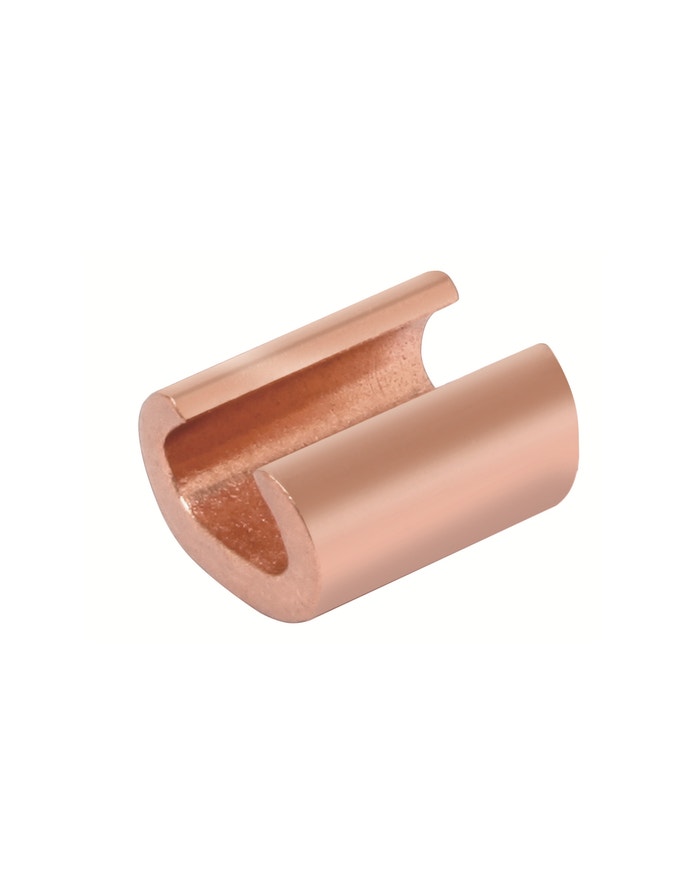

Burndy YC8C8 CU Compression C Shape Compression Connector 600 Volts to 35 Kv

Product Description

The BURNDY YC8C8 CU Compression C Shape Compression Connector is designed for making tap or parallel copper connections, accommodating a voltage range of 600 Volts to 35 Kv. Constructed from high conductivity wrought copper, this connector provides low resistance and excellent electrical conductivity. Its compact size allows for easy taping and insulation.

• Lowers inventory requirements with range-taking connector.
• Ensures low resistance and excellent electrical conductivity due to high conductivity wrought copper.
• Facilitates easy taping and insulation of connections with its compact size.

Product Highlights

This copper compression C-tap connector ensures reliable electrical connections with its range-taking design and compact size.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YC8C8
• Country of Origin: USA

Technical Specifications

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate
• MPN: YC8C8
• Sub Brand: Crimpit™
• Type: Parallel
• Material: Copper
• Voltage: 600-35000 Volt
• Conductor Size: 8 AWG
• Tap Size: 8, 10 AWG
• Conductor Type: Cu C Sol-Size
• Shape: C
• Length: 0.5 Inch
• Width: 2.63 in
• Height: 0.46 Inch
• Overall Length: 0.50 in
• Temperature Rating: 90 degrees C
• Finish: Copper
• Plated?: No
• Plating Type: Unplated
• Country of Origin: USA
• Buy American Compliant: Y
• CSA: No
• Standard: UL 486A;UL486B
• UPC: 781810114506
• GTIN: 00781810114506
• Application: For Making Tap Or Parallel Copper Connections
• Die Index: 162
• UL Listed: Yes
• EU RoHS Indicator: Yes
• Standards - Industry Standards Met: UL 486A;UL486B
• Standards - RoHS Compliance Status: CM
• Trade Name: CRIMPIT™
• Conductor - Copper Solid Run: 8 AWG
• Conductor - Copper Solid Tap: 10 AWG;9 AWG;8 AWG
• Conductor - Copper Solid Tap Range: 10 Sol. - 8 Str.
• Conductor - Copper Str Run: 8 AWG
• Conductor - Copper Str Tap Range: 10 Sol. - 8 Str.
