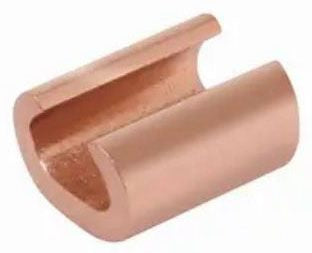

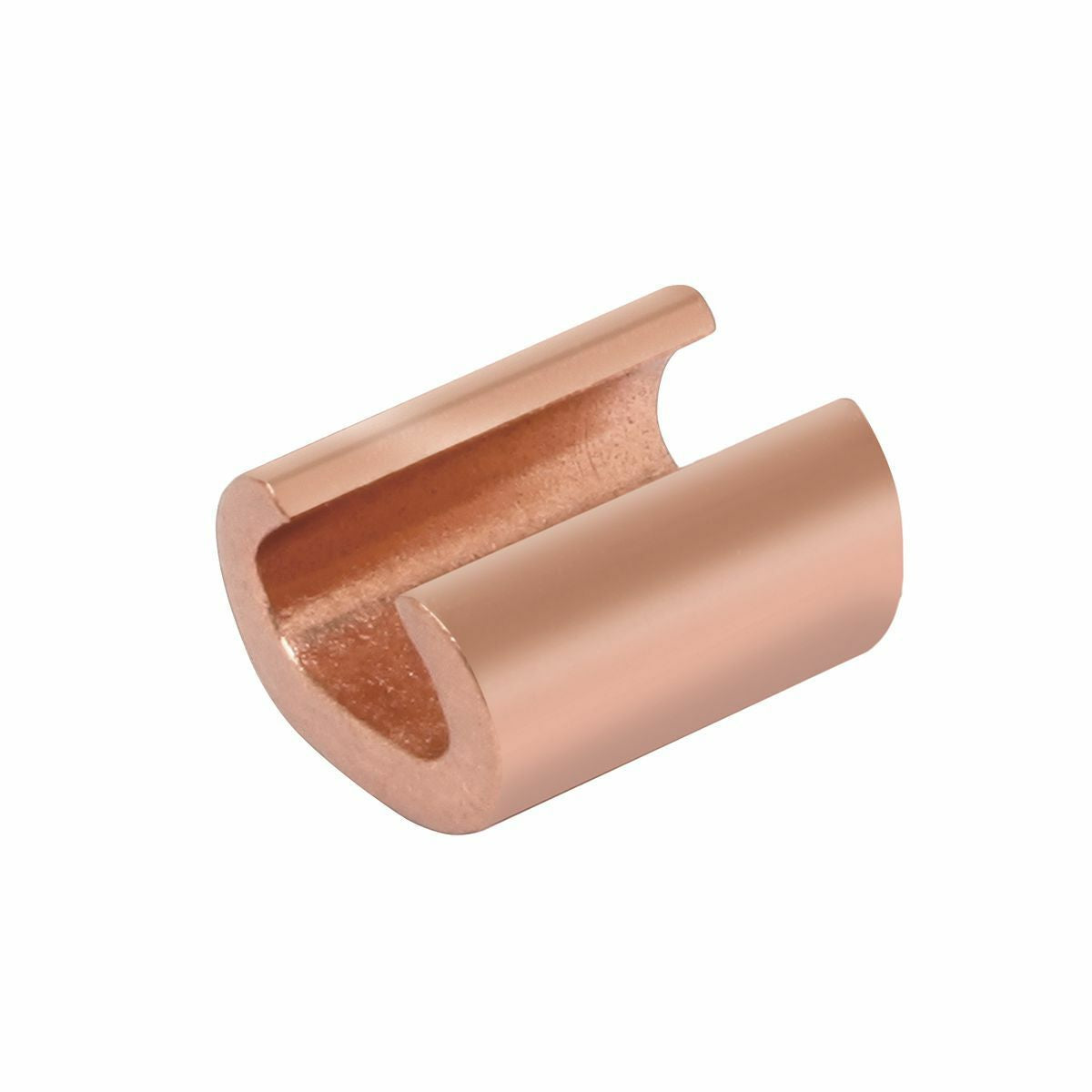

BURNDY YC4C4 CU Compression C Shape Compression Connector 600 Volts to 35 Kv 6 Sol - 4 Str

Product Description

The BURNDY YC4C4 is a CU compression C shape compression connector designed for electrical applications involving copper conductors. It can handle voltage ratings from six hundred volts to thirty-five kilovolts. This connector is suitable for both run and tap connections with a minimum run conductor size of six AWG solid and four AWG stranded.

• Voltage Rating: 600V to 35kV
• Conductor Material: Copper
• UL Approved: UL 486A; UL 486B

Product Highlights

This product is made in the USA and features a compact design that simplifies insulation and taping. Its range-taking capability reduces inventory requirements.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Catalog Number: YC4C4

Technical Specifications

• Application: For connections with copper conductors
• Special Features: Low resistance, excellent conductivity, economical design
• Country of Origin: United States
• Made in USA: Yes
• Conductor Size (Run): 6 AWG Solid - 4 AWG Stranded
• Conductor Type: Commercial Stranded Copper
• Cross Reference Products: ULT-5-Z
