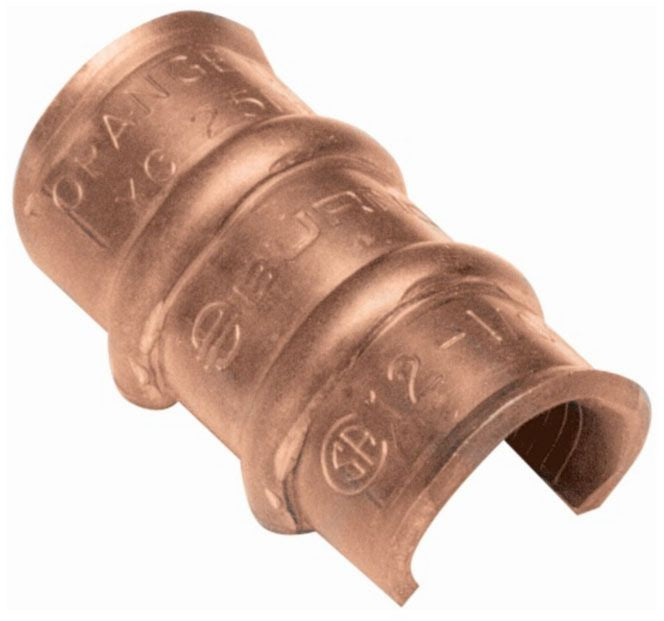

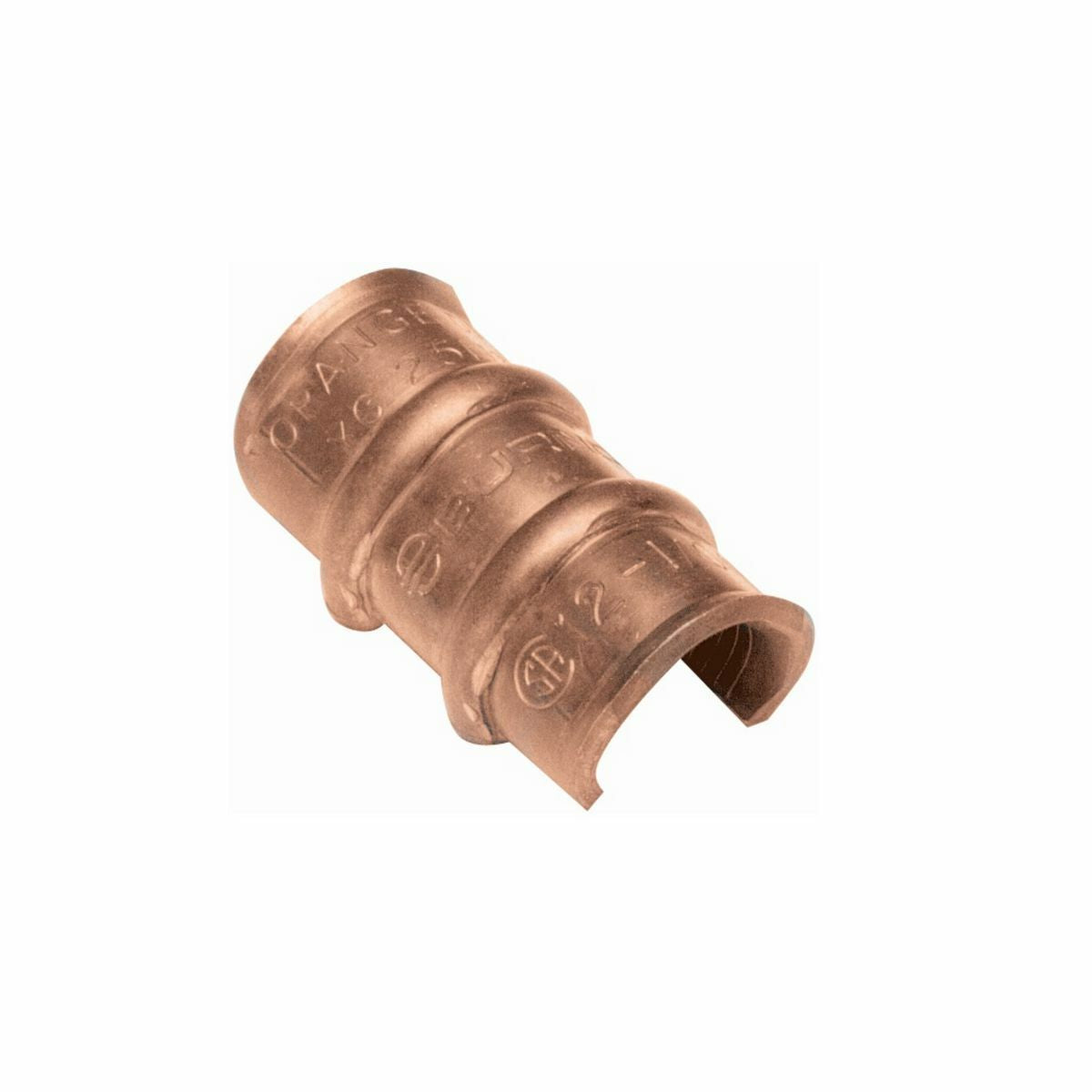

BURNDY YC2L12 Copper Compression C Tap, Thin Wall, 4 AWG (Run), 4 AWG (Tap)

Product Description

The BURNDY YC2L12 is a copper compression C tap designed for electrical wire connections. This tap is suitable for parallel connections and provides efficient wire tapping with reliable performance. The YC2L12 handles conductors ranging from four AWG for the run to twelve AWG for the tap. Its tin-plated finish ensures excellent conductivity and durability.

• Manufactured from high conductivity wrought copper.
• Compact design eases insulation and taping of connections.
• Engineered for low resistance and high pull-out values.

Product Highlights

This product is ideal for electricians seeking efficient and reliable wire connections. The design minimizes inventory requirements and is compliant with UL 486A-486B standards.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YC2L12
• Application: Wire Tap
• Material: Copper
• Finish: Tin-Plated
• Temperature Rating: 194
• Wire Strip Length: 1-3/16 inch
• Cross Reference Products: TWCTR2T12, CT-106
• UPC: 781810040157
