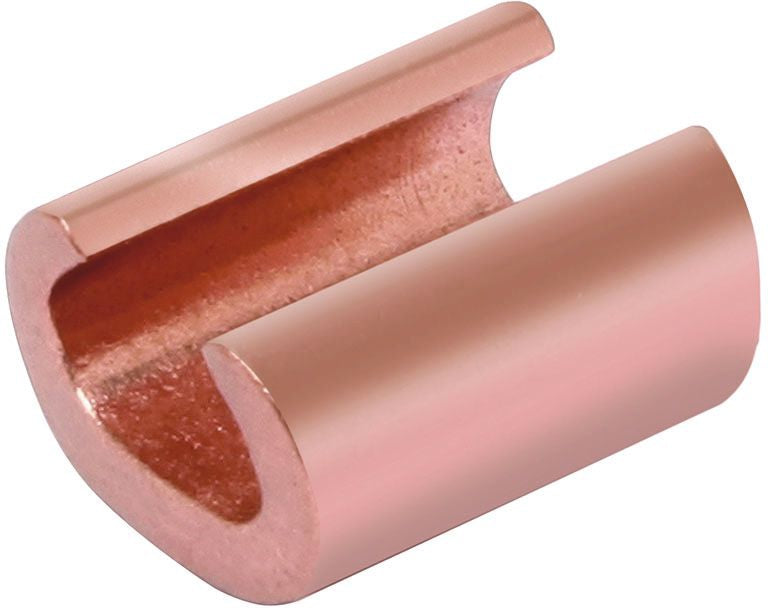

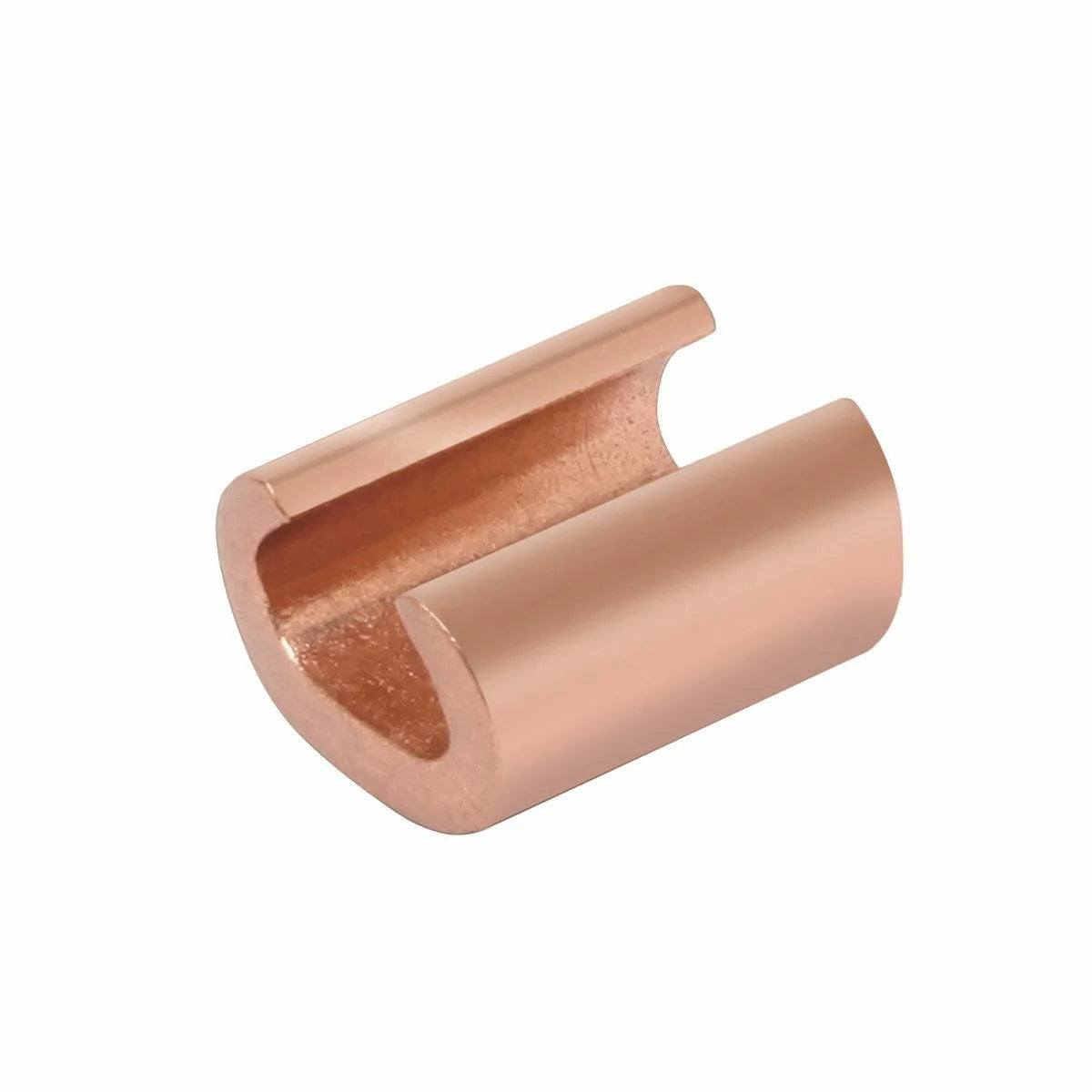

BURNDY YC2C4 CU Compression C Shape Compression Connector, 600 Volts to 35 Kv, Run: 2 Sol. - 2 Str., Tap: 8 Sol. - 4 Str.

Product Description

The BURNDY YC2C4 is a CU compression C shape compression connector rated for voltages up to 35 kilovolts. It is designed for use in high-quality copper wire terminations, suitable for a range of applications. This connector accommodates two solid conductors and two stranded conductors, making it versatile for various wiring tasks.

• Voltage Rating: 600 Volts to 35 Kilovolts
• Material: High conductivity wrought copper
• Application: Ideal for tap or parallel connections of copper conductors

Product Highlights

This product lowers inventory requirements with its range-taking capability and ensures effective electrical conductivity.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Catalog Number: YC2C4
• Conductor Size (Run): 2 AWG Solid - 2 AWG Stranded
• Conductor Size (Tap): 8 AWG Solid, 4 AWG Stranded
• Shape: C
• Standard: UL 486A; UL 486B
• UPC: 781810112250
• Cross Reference Products: ULT-6-Z
