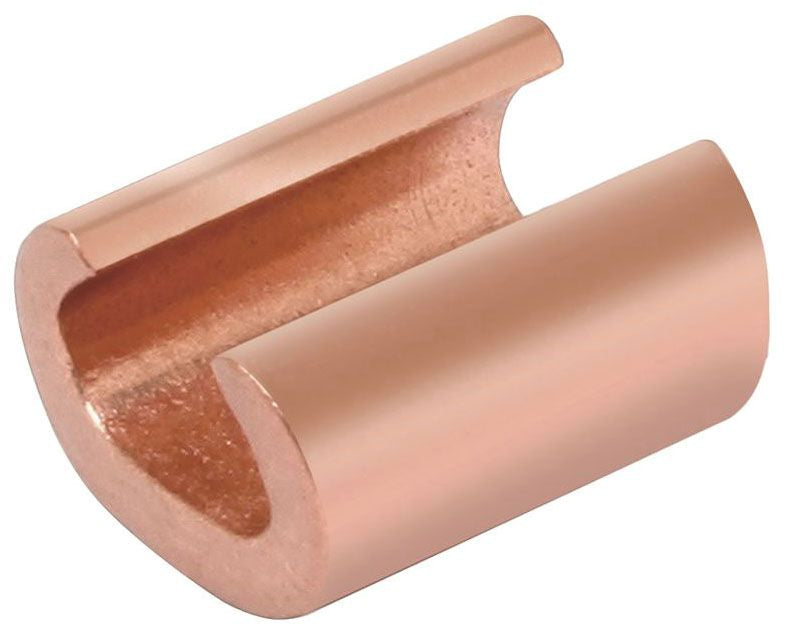

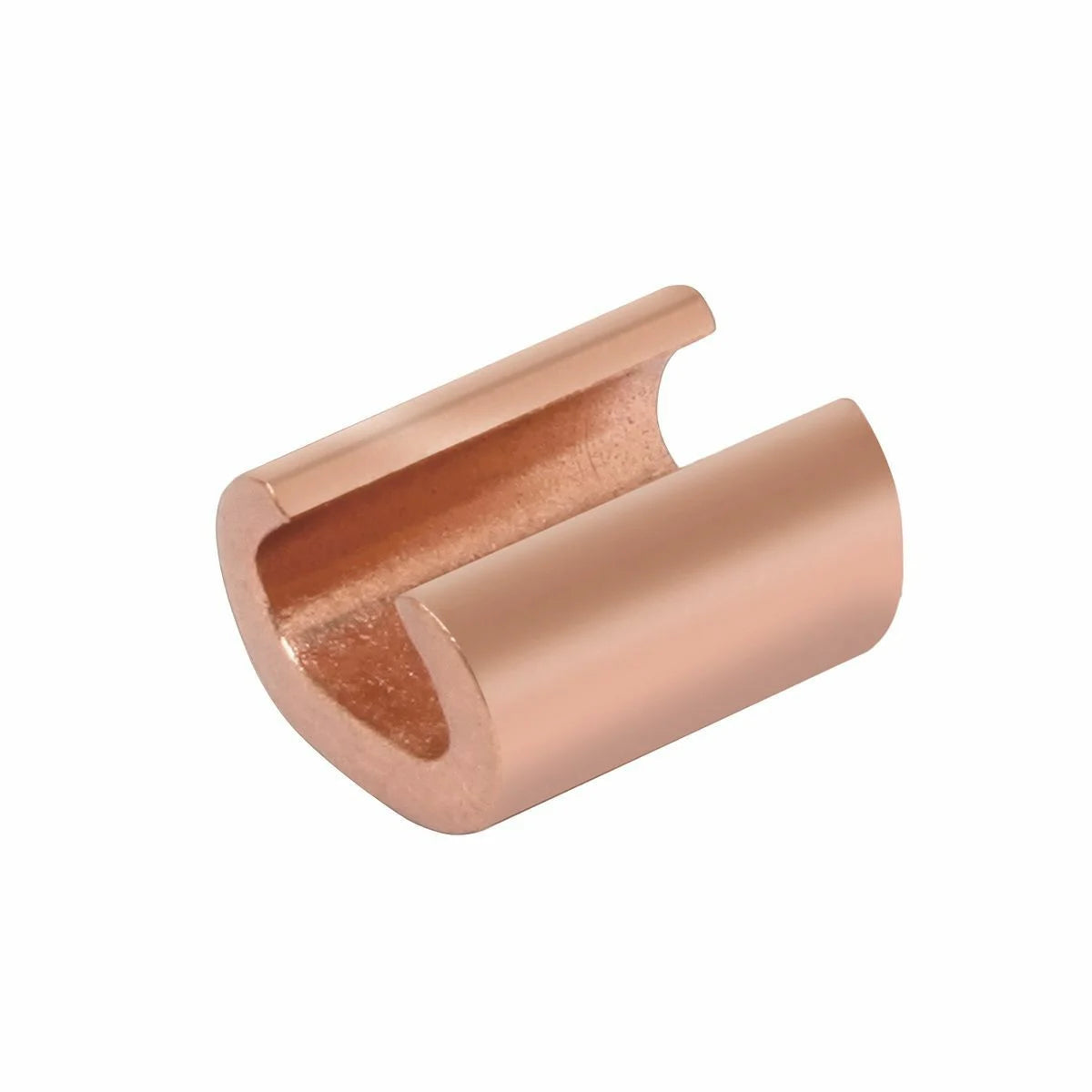

Burndy YC28C28 CU Compression C Shape Compression Connector 600 Volts to 35 Kv 3/0 Str. - 4/0 Str.

Product Description

The Burndy YC28C28 is a CU compression C shape compression connector suitable for applications requiring a voltage rating of six hundred volts to thirty-five kilovolts. This connector is designed to accommodate conductor sizes ranging from three aught to four aught stranded copper. It is ideal for making tap and parallel copper connections in commercial electrical installations. The product is made from high conductivity wrought copper, ensuring excellent electrical conductivity.

• Voltage rating: 600 volts to 35 kilovolts
• Conductor sizes: 3/0 AWG to 4/0 AWG
• Manufactured in the USA by Burndy, a Hubbell affiliate

Product Highlights

This connector features a range-taking design that reduces inventory requirements while maintaining a compact size. It is easy to tape and insulate, helping create reliable connections.

Product Information

Standard Information

• Catalog Number: YC28C28
• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Application: For making tap or parallel copper connections
• Country of Origin: United States
• Special Features: Range-taking connector that lowers inventory requirements, compact size for easy insulation, high conductivity for low resistance
• Standard: UL 486A; UL 486B
• UPC: 781810116302
• Cross Reference Products: ULT-12-Z
