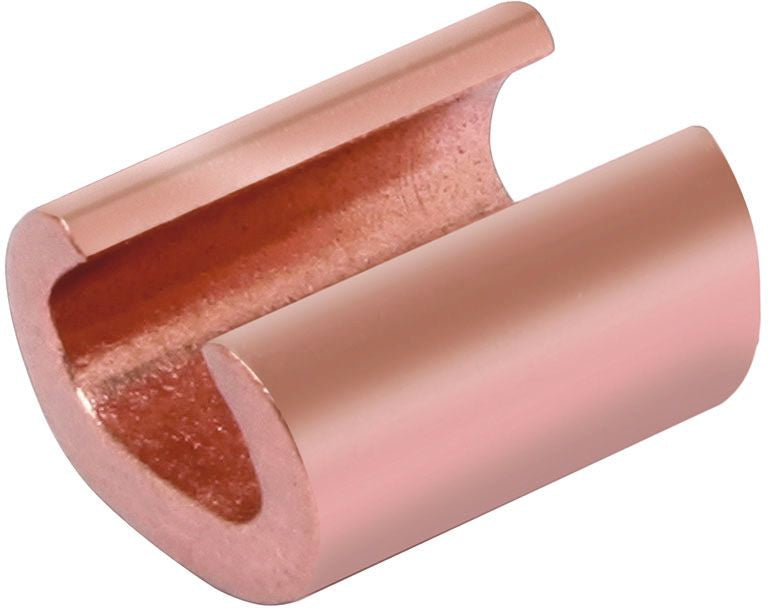

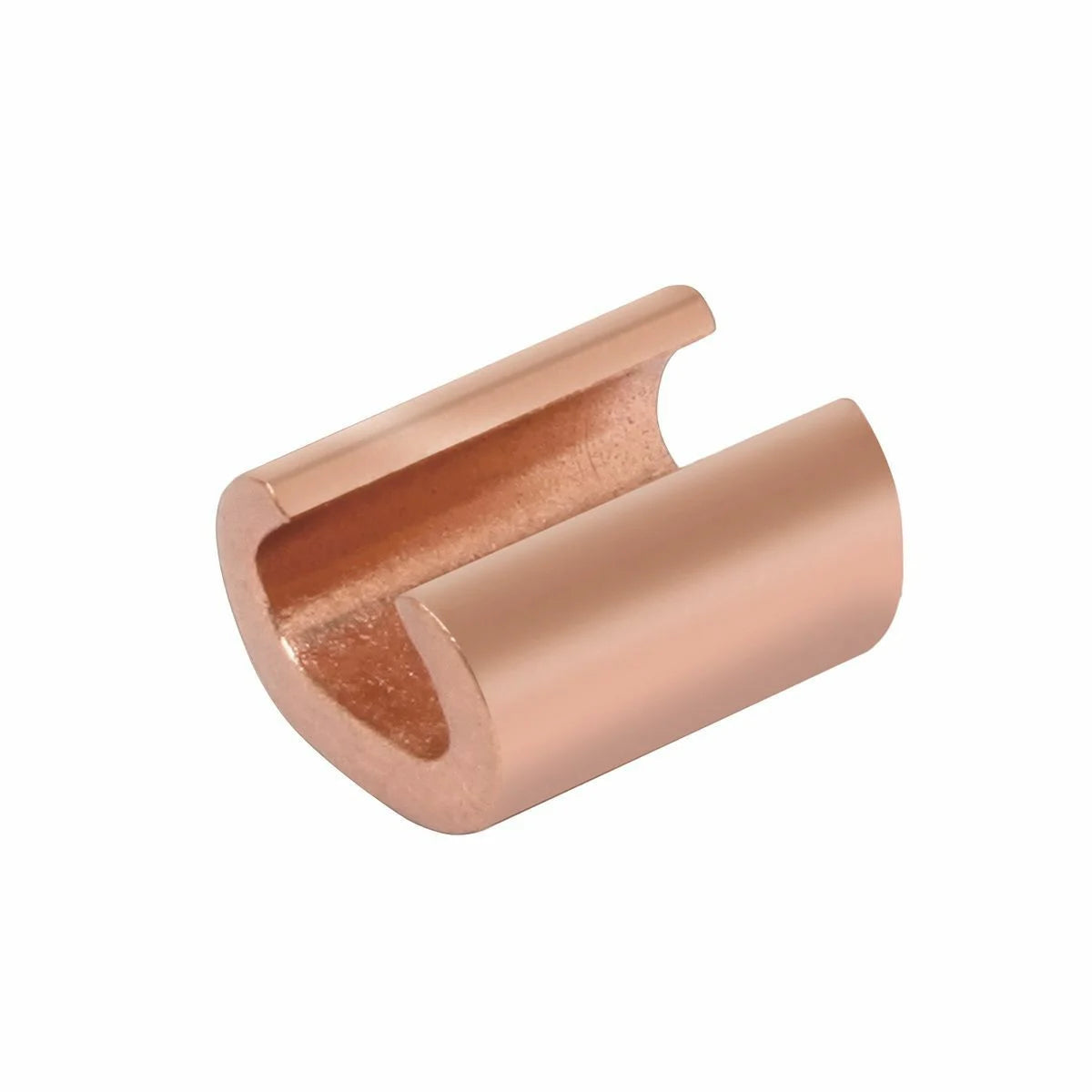

BURNDY YC28C26 CU Compression C Shape Compression Connector, 600 Volts to 35 Kv, Run: 3/0 Str. - 4/0 Str., Tap: 1/0 Str. - 2/0 Str.

Product Description

The BURNDY YC28C26 is a CU Compression C Shape compression connector designed for safe and reliable electrical connections. This connector operates at voltages from six hundred volts to thirty-five kilovolts. It is suitable for a range of applications including tap or parallel copper connections.

• Voltage rating: six hundred volts to thirty-five kilovolts
• Conductor material: copper
• Connector size compatibility for run: three over zero stranded to four over zero stranded

Product Highlights

The YC28C26 is built from high conductivity wrought copper, ensuring low resistance and excellent electrical performance. This connector is ideal for situations where space and inventory management are critical.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate
• UPC: 781810116005
• Country of Origin: United States

Technical Specifications

• Catalog Number: YC28C26
• Application: For making tap or parallel copper connections
• Material: Copper
• Special Features: Range-taking connector, compact size, low installed cost
• Conductor Size (run): three over zero to four over zero AWG
• Conductor Size (tap): one over zero to two over zero AWG
• Standards: UL 486A; UL 486B
