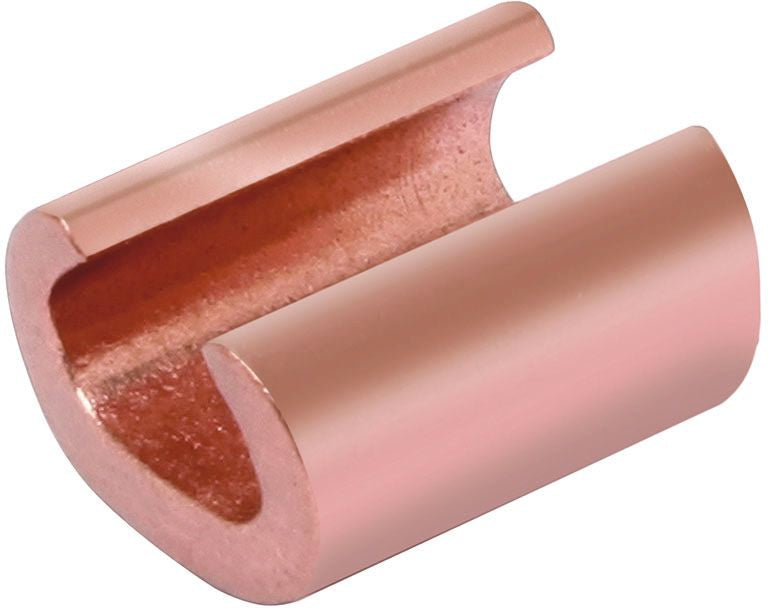

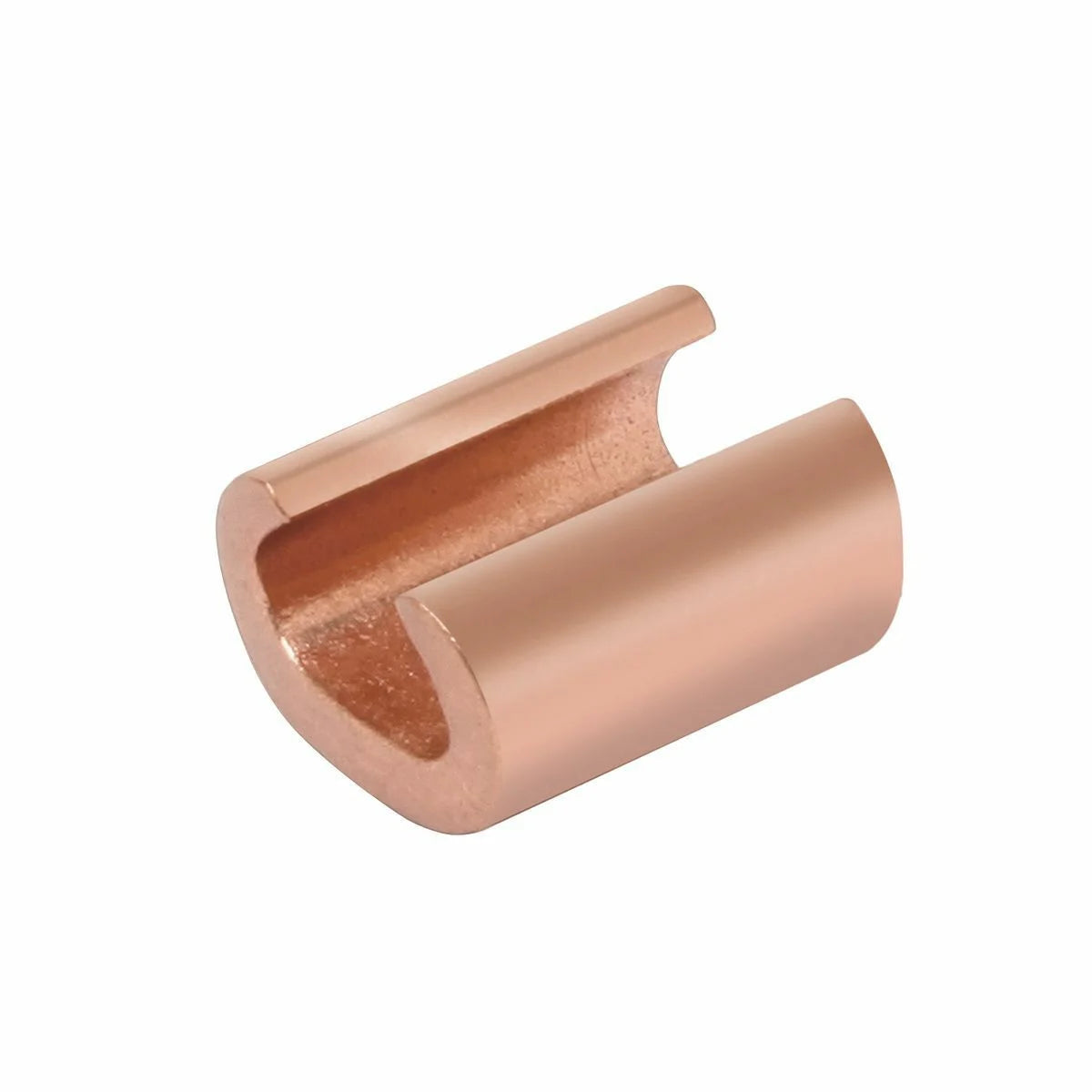

BURNDY YC28C2 CU Compression C Shape Compression Connector, 600 Volts to 35 Kv, Run: 3/0 Str. - 4/0 Str., Tap: 6 Sol. - 2 Str.

Product Description

The BURNDY YC28C2 is a CU compression C shape compression connector designed for strong electrical connections. This connector is rated for 600 volts up to 35 kilovolts and can accommodate a range of wire sizes. It is ideal for tap and parallel copper connections, making it a reliable choice for electricians and contractors.

• Application: Suitable for making tap or parallel copper connections
• Material: Crafted from high conductivity wrought copper for excellent performance
• Compatibility: Works with various stranded copper sizes

Product Highlights

This connector lowers inventory requirements due to its range-taking design. Its compact size facilitates easy tape and insulation processes. The high conductivity material ensures low resistance and superior electrical conductivity.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YC28C2
• Country of Origin: United States
• Application: For making tap or parallel copper connections
• Material: Copper
• Special Features: Range-taking, compact size, suitable for various conductor sizes
• Standards: UL 486A; UL 486B
• Conductor Size (Run): 3/0 to 4/0 AWG
• Conductor Size (Tap): 6 to 2 AWG
