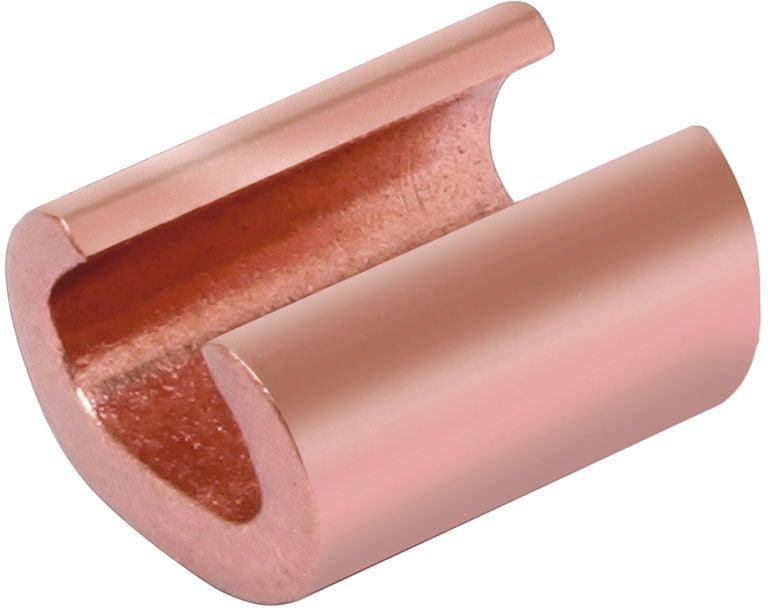

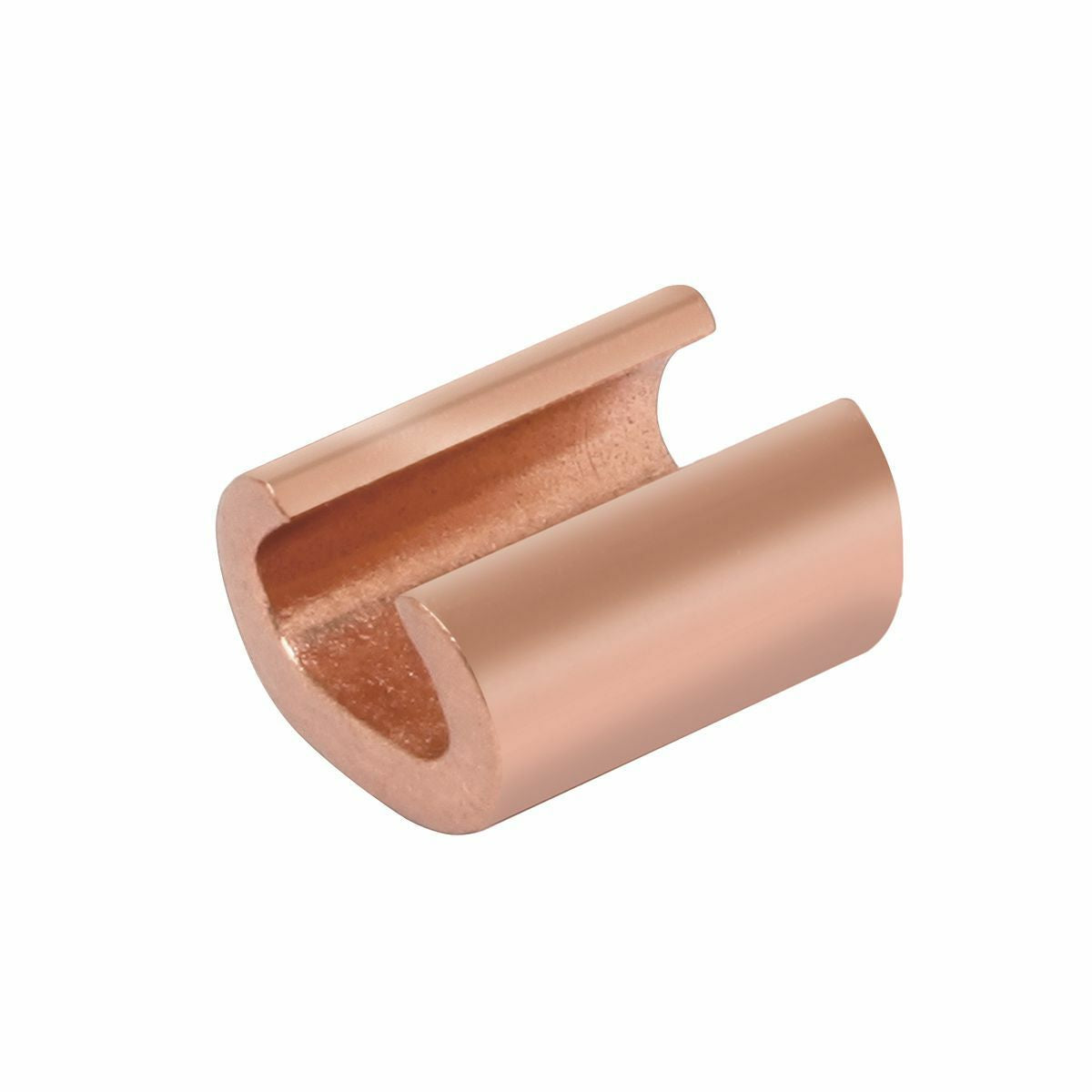

BURNDY YC26C2 CU Compression C Shape Compression Connector 600 Volts to 35 Kv Run: 1/0 Str. - 2/0 Str. Tap: 8 Sol. - 2 Str.

Product Description

The BURNDY YC26C2 is a CU compression C shape compression connector designed for use in electrical applications requiring a voltage rating of six hundred volts to thirty-five kilovolts. This connector accommodates a wide range of conductor sizes, making it versatile for various installations.

• Voltage Rating: 600 Volts to 35 Kilovolts
• Material: Copper
• Application: For making tap or parallel copper connections

Product Highlights

This connector features a range-taking design, which reduces inventory requirements. It is also compact, facilitating easy taping and insulation. The high conductivity wrought copper ensures low resistance, providing excellent electrical performance.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY

Technical Specifications

• Catalog Number: YC26C2
• Application: For making tap or parallel copper connections
• Conductor Type: Commercial stranded copper
• Conductor Size (Run): 1/0 - 2/0 AWG
• Conductor Size (Tap): 8 - 2 AWG
• Special Features: Range-taking connector, low installed cost
• Standards: UL 486A; UL 486B
• Made in USA: Yes
