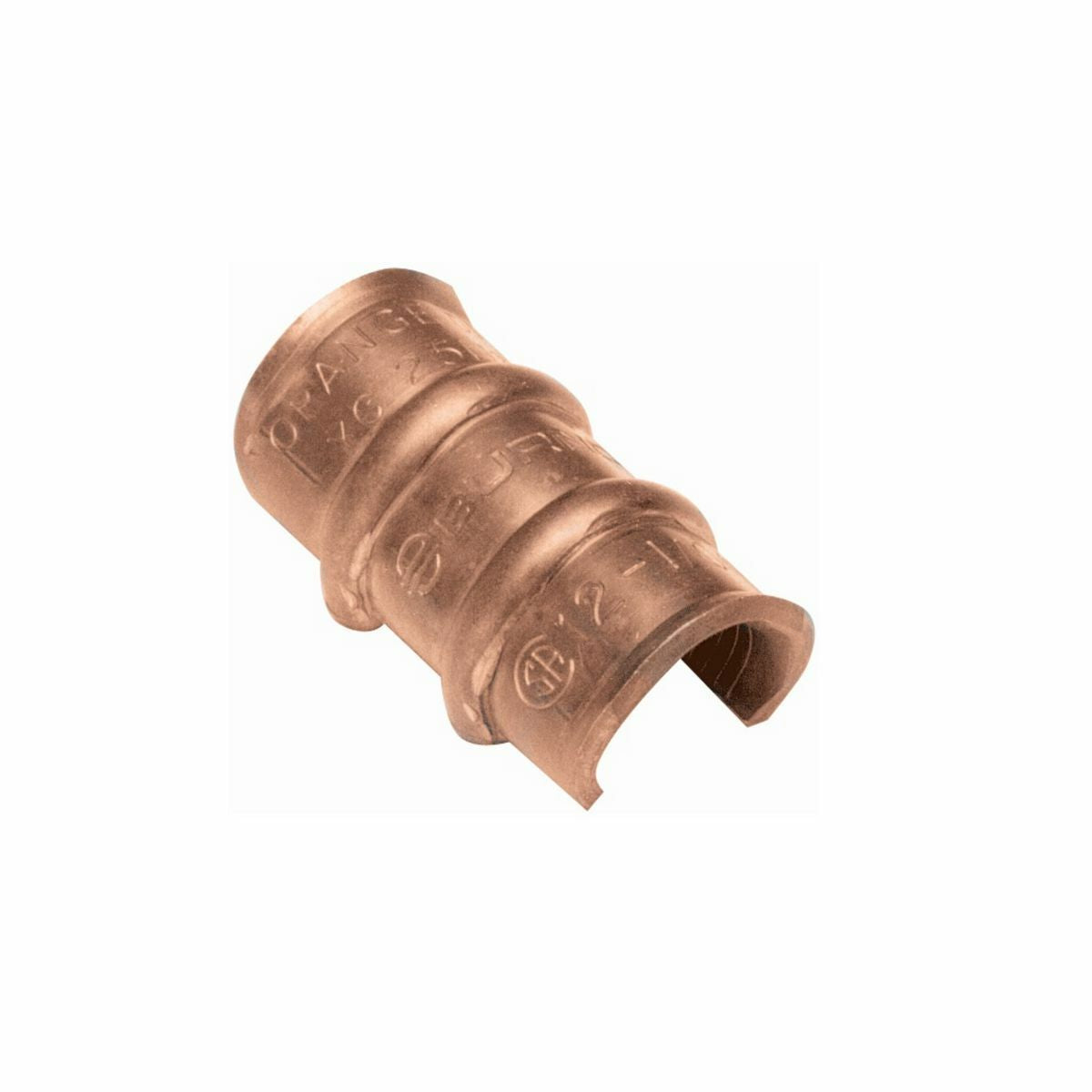

Burndy YC25L12 Copper Compression C Tap, Thin Wall, 1 AWG (Run), 4-3 AWG (Tap)

Product Description

The Burndy YC25L12 is a copper compression C tap connector designed for reliable electrical connections. This connector fits one AWG run and taps from four to three AWG. Ideal for various electrical applications, its design ensures a secure connection in wire tap configurations.

• Made from high conductivity copper for low resistance.
• UL and CSA approved for safety and compliance.
• Features reinforced ribs for enhanced mechanical strength.

Product Highlights

This connector is compact and easy to tape and insulate. It is perfect for making copper tap and parallel connections from fourteen to three AWG, lowering inventory requirements.

Product Information

Standard Information

• Brand: Burndy
• Sub Brand: Crimpit

Technical Specifications

• Material: Copper
• Finish: Tin-Plated
• Voltage Rating: 600 V
• Temperature Rating: 194 degrees C
• Tap Sizes: 12, 10, 8, 6, 5, 4, 3, 2 AWG
• Dimensions: 1.75 inches length, 0.62 inches width, 0.09 inches height
• Die Index: 14
• Country of Origin: USA
