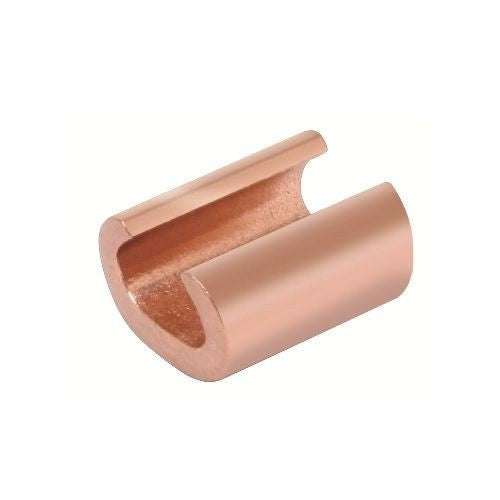

Burndy YC10C10 CRIMPIT Copper C-Shape Connector

Product Description

The BURNDY YC10C10 is a range-taking compression tap connector made of pure copper, designed for copper-to-copper applications and deadending. This CRIMPIT connector lowers inventory requirements with its range-taking capability. Its compact size allows for easy taping and insulation, while the high conductivity wrought copper ensures low resistance and excellent electrical conductivity.

• Made of pure copper
• Used for copper to copper applications and deadending
• Compact size, easy to tape and insulate connection

Product Highlights

High conductivity wrought copper provides low resistance and excellent electrical conductivity.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YC10C10

Technical Specifications

• Application: For Range Of Copper And Making Tap Or Parallel Copper Connections
• Catalog Number: YC10C10
• Die Index: 238
• EU RoHS Indicator: Yes
• Material: Copper
• Plated: N
• Plating Type: Unplated
• Sub Brand: CRIMPIT
• Trade Name: CRIMPIT
• Type: YC-C Series
• UPC: 781810114605
• UPC 14 Digit GTIN: 00781810114605
• Conductor - Copper Str Run Range: 12 Sol. - 10 Str
• Conductor - Copper Str Tap Range: 12 Sol. 10 Str
• Conductor Type: Cu C Sol-Size
• Industry Standard(s): UL 486A UL486B
• Standards - Industry Standards Met: UL 486A;UL486B
• Standards - RoHS Compliance Status: CM
• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 90
• Tap Size: 12 to 10
• Finish: Plain Copper Plated
