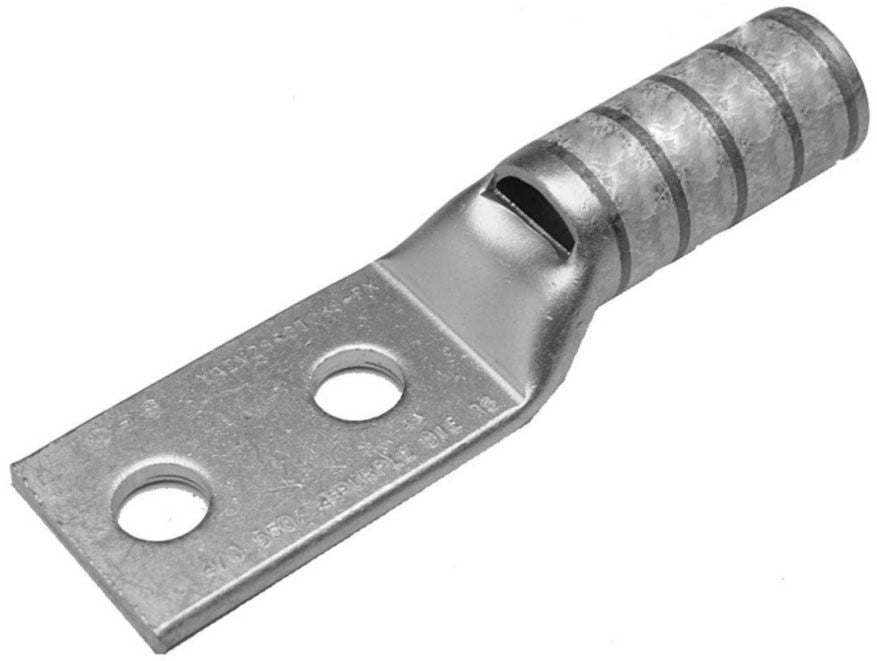

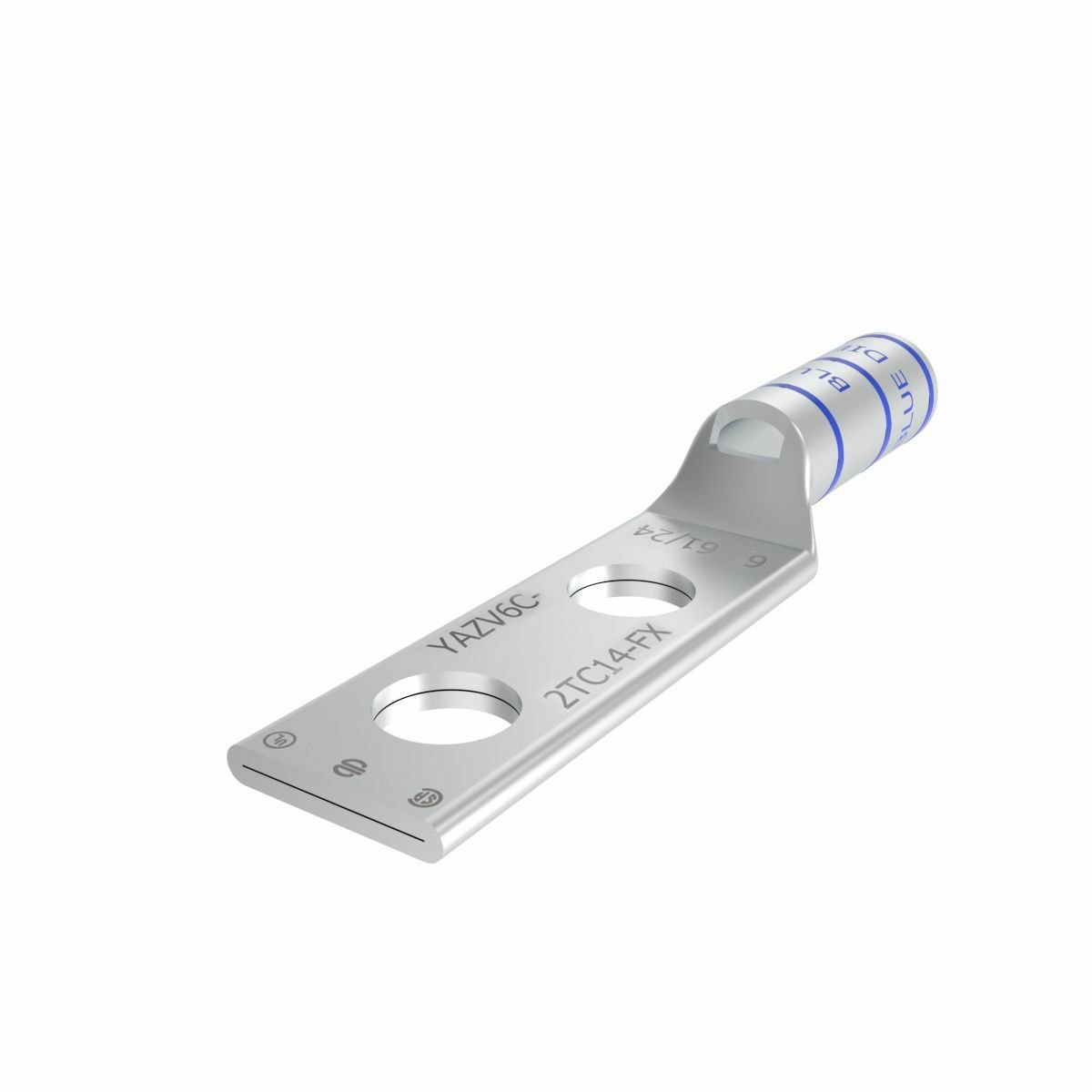

BURNDY YAZV6C2TC14FX Copper Compression Lug 2 Hole w/ Inspection Window 6 Flex 1/4 Stud 5/8 Stud Hole Spacing

Product Description

The Burndy YAZV6C2TC14FX is a copper compression lug designed for wire termination. This long barrel compression lug features two holes and an inspection window, making it suitable for various applications in electrical systems.

• Material: Copper, electro-tin plated
• Rated for voltages up to thirty-five kilovolts
• Wire strip length of one and three-sixteenth inches

Product Highlights

Ideal for securing electrical connections safely and efficiently.

Product Information

Standard Information

• Catalog Number: YAZV6C2TC14FX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Wire Size: 6 AWG
• Pad Size: 0.48 inches wide by 0.08 inches thick
• Pad Hole Spacing: 5/8 inches
• Temperature Rating: 90 degrees Celsius
• Special Features: UL Listed, features an inspection window
• Country of Origin: United States
