Burndy YAZ8C2TC14FX 8 Flex G,H,I,K,M,DLO 8 AWG CU Two Hole 1/4 Stud Size

Product Description

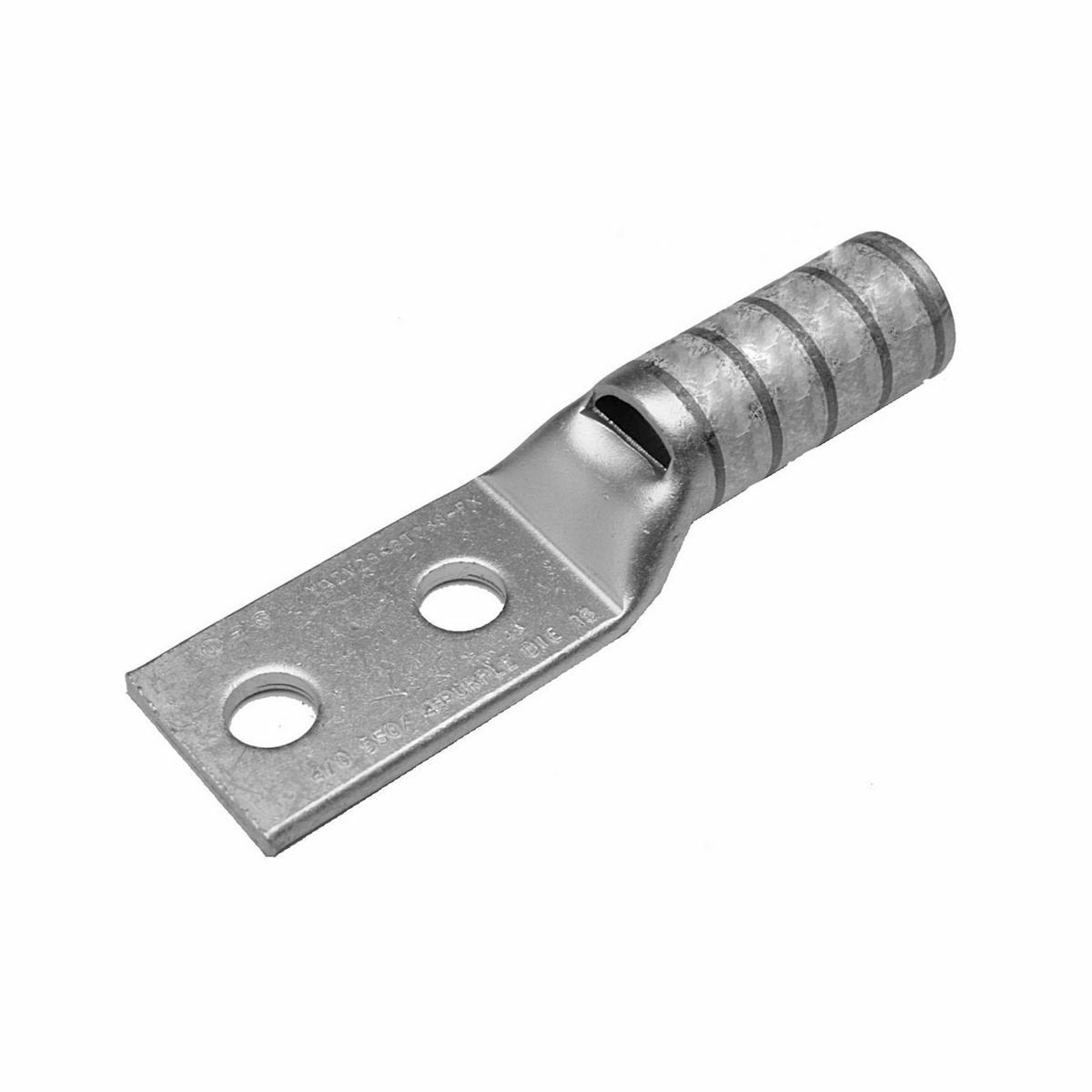

The Burndy YAZ8C2TC14FX is a copper cable lug designed for effective wire termination. It accommodates conductors sized eight AWG, including flexible and solid variants. With a long barrel, this lug provides reliable performance in demanding electrical applications.

• Voltage rating of 600 volts to 35 kilovolts
• UL and CSA listed for safety and compliance
• Inspection window for ease of use

Product Highlights

This product is optimized for use in environments requiring high-quality connections. It features an electro-tin plated finish for enhanced durability, ensuring long-lasting performance.

Product Information

Standard Information

• Catalog Number: YAZ8C2TC14FX
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Country of Origin: United States
• Application: Wire Termination
• Die Index: 49
• Temperature Rating: 90 degrees Celsius
• Wire Strip Length: 1 inch
• Pad Size: 0.44 inch wide by 0.08 inch thick
• Stud Size: 1/4 inch
