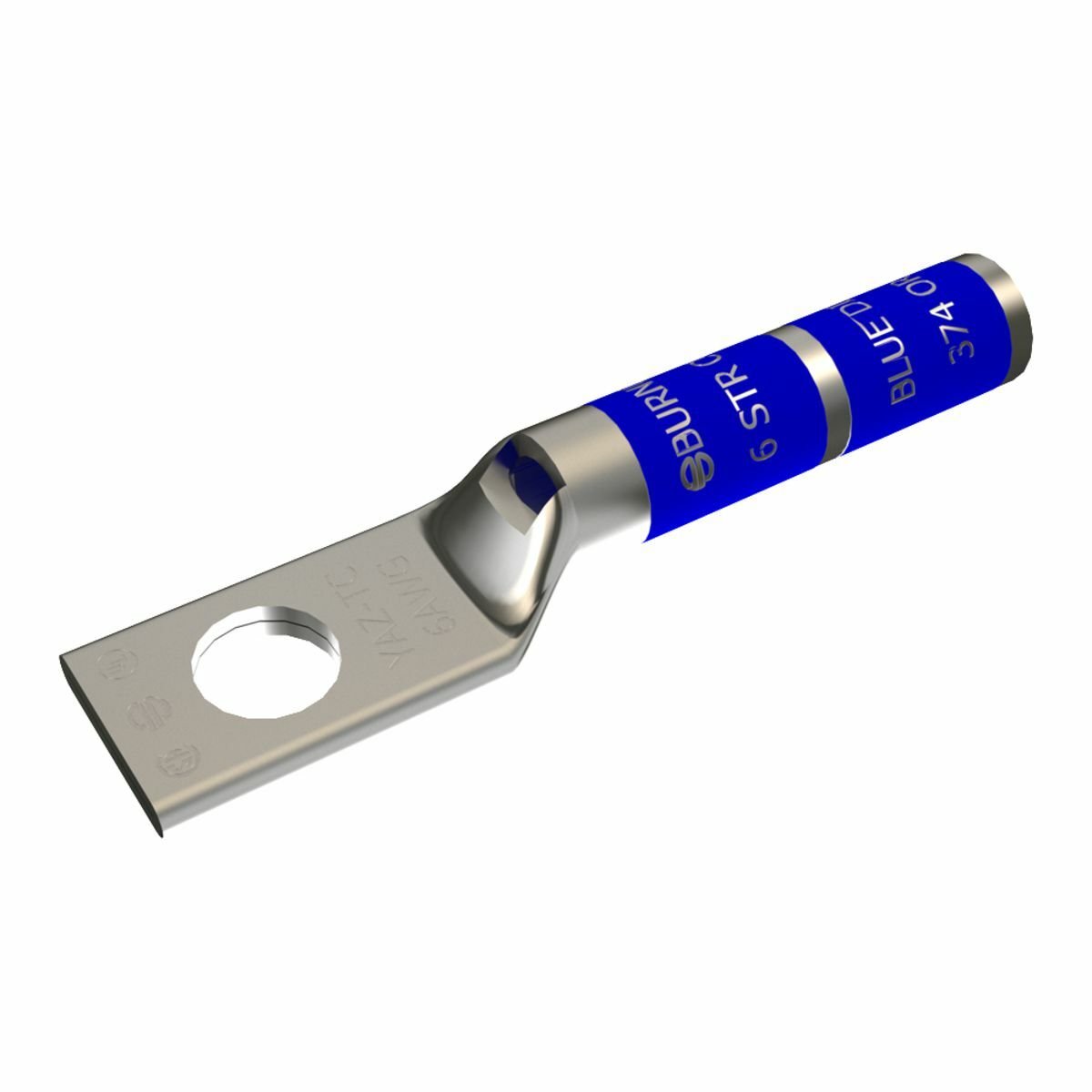

BURNDY YAZ6CTC14 6 AWG CU One Hole 1/4 Stud Size Long Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV Blue Color Code 7 or 374 Die Index

Product Description

The BURNDY YAZ6CTC14 is a compression terminal designed for high-performance wire termination. This component is rated for voltages up to thirty-five kilovolts and is ideal for applications requiring reliable electrical connections. It features a long barrel with an inspection window to simplify installation and ensure proper wire insertion.

• Rated for 600 volts to 35 kV
• Constructed from copper and electro-tin plated
• Supports wire stripping lengths of one and three-sixteenth inches

Product Highlights

This terminal is UL and CSA approved, ensuring compliance with safety and performance standards. The blue color code and die index allow for easy identification in various installations.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Catalog Number: YAZ6CTC14
• Made in USA: Yes

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• Application: Wire Termination
• Stud Size: 1/4 inch
• Cross Reference Products: CLWS-6-14
• Special Features: Inspection window, Long barrel
