BURNDY YAZ6C2TC38 6 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, Blue Color Code, 7 or 374 Die Index

Product Description

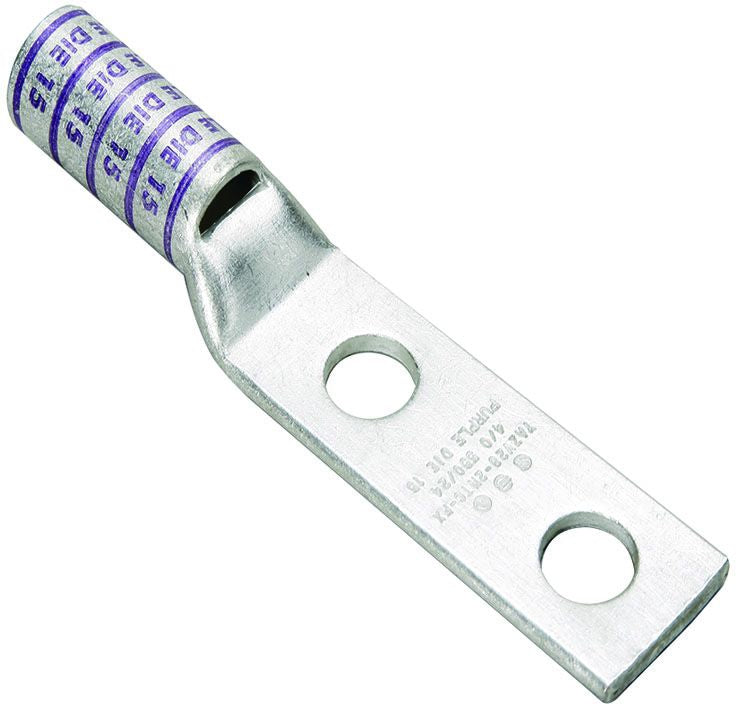

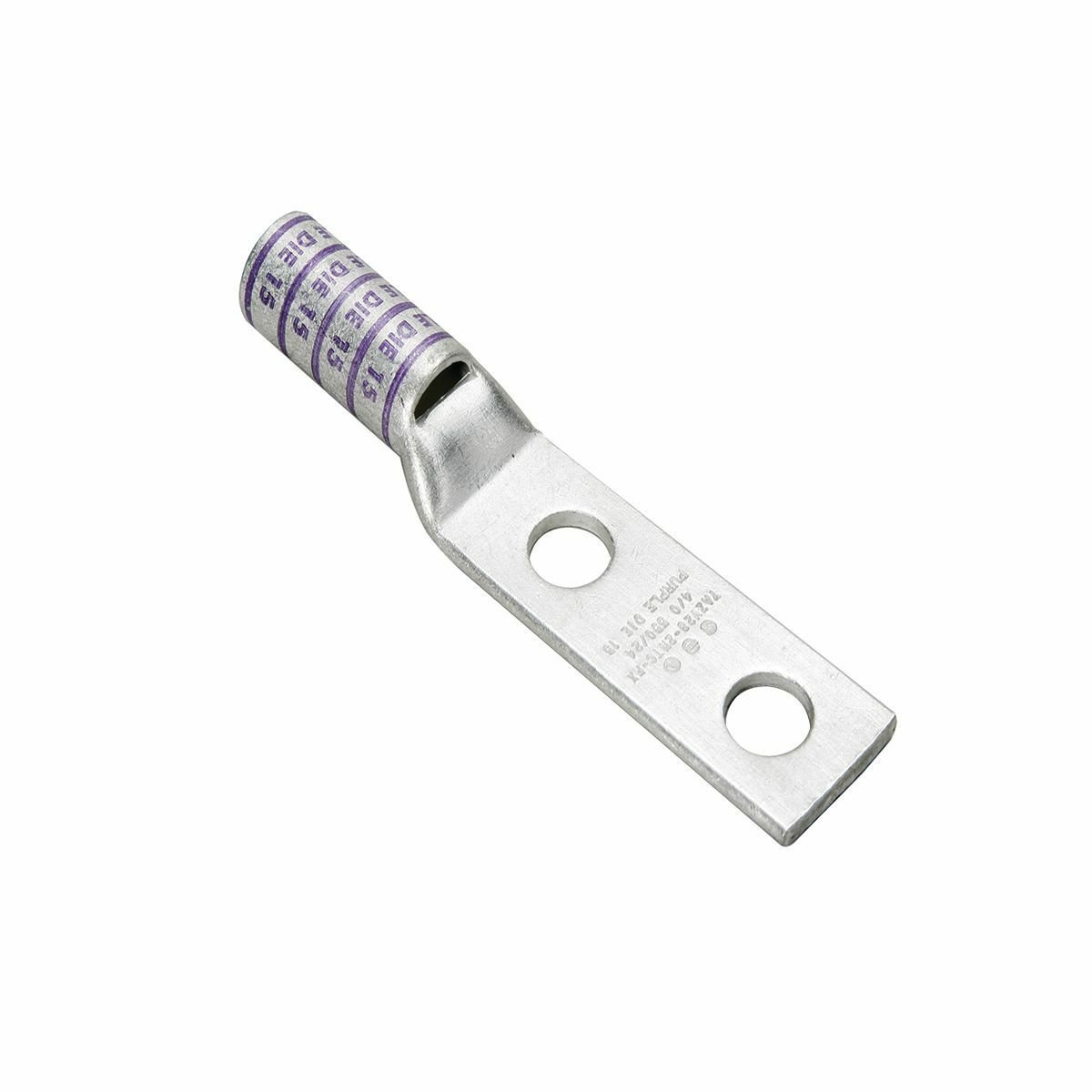

The BURNDY YAZ6C2TC38 is a compression terminal designed for wire termination in various electrical applications. This model features a copper construction and is UL and CSA listed, ensuring quality and safety. Its design includes a long barrel and an inspection window that allows for easier connectivity and inspection.

• UL Listed for temperature rating of 90°C.
• Rated for voltage capacity up to 35kV.
• Includes a built-in inspection window for enhanced usability.

Product Highlights

This terminal is ideal for connecting electrical wires in both commercial and industrial settings. It accommodates wire strip lengths of one and three-sixteenths inches and is designed for easy installation with straight tongue angles.

Product Information

Standard Information

• Catalog Number: YAZ6C2TC38
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Pad Size: 0.58 inches width x 0.06 inches thickness
• Stud Size: 3/8 inches
• Die Index: 7 or 374
• Wire Gauge: 6 AWG
• Barrel Type: Long, skived, straight
• Voltage Rating: 35 kV
• Country of Origin: United States
• Application: Wire Termination
• UPC: 781810224298
