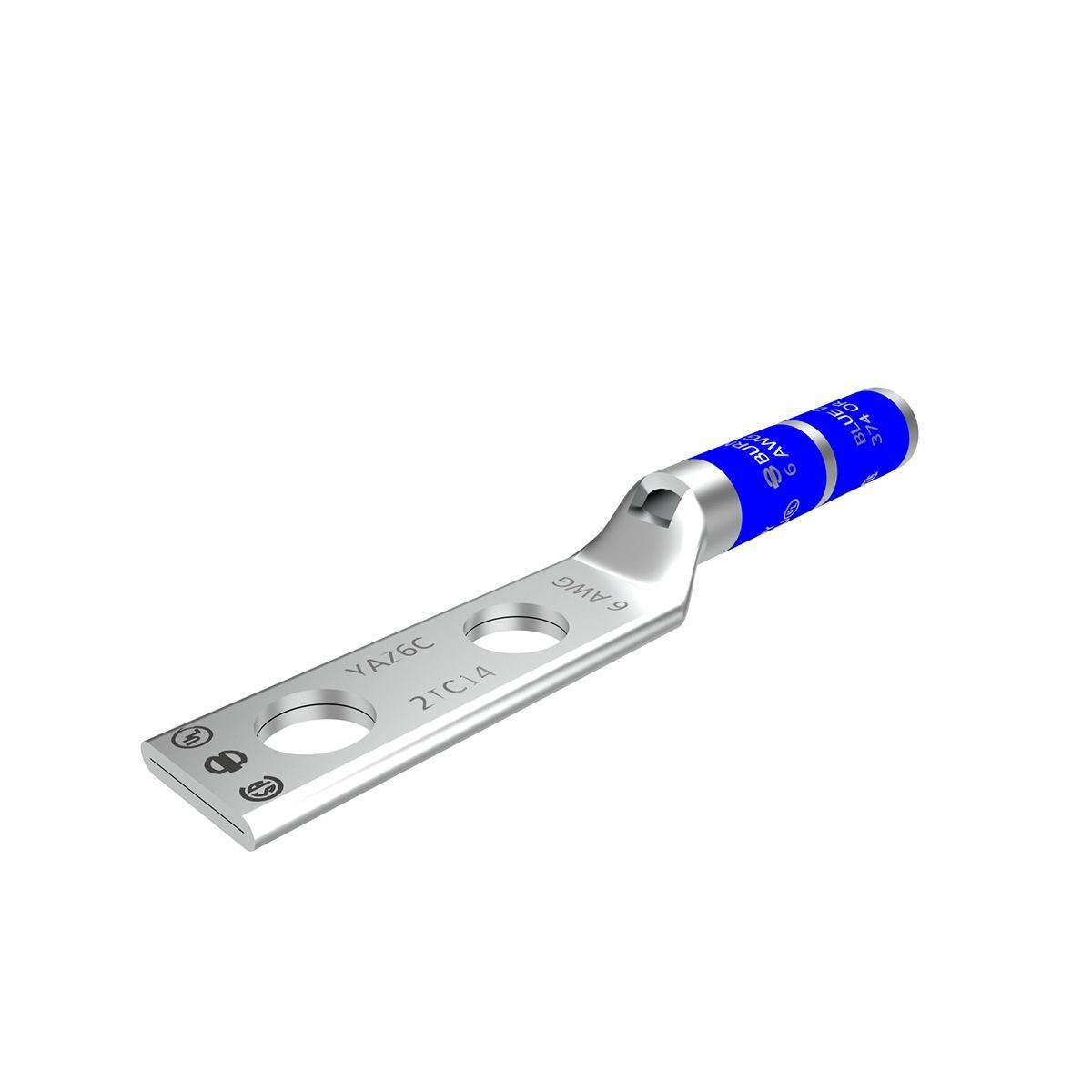

BURNDY YAZ6C2TC14 Copper Compression Lug 2 Hole 6 AWG 1/4 Stud 5/8 Stud Hole Spacing

Product Description

The BURNDY YAZ6C2TC14 is a copper compression lug designed for wire termination applications. This product features two holes with an inspection window and is suitable for six AWG wire. The lug accommodates a one-quarter inch stud with five-eighths inch hole spacing. The long barrel design allows for a strong connection and reliable performance.

• UL listed for safety and compliance.
• Made in the USA with high-quality copper.
• Designed for applications requiring wire termination.

Product Highlights

The BURNDY YAZ6C2TC14 copper compression lug offers durability and ease of use for electricians and technicians working with various wire installations.

Product Information

Standard Information

• Catalog Number: YAZ6C2TC14
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Application: Wire Termination
• Country of Origin: United States
• Special Features: UL Listed, 90 degrees Celsius, 600 V - 35 kV, with inspection window
• Wire Strip Length: 1-3/16 inches
• Sub Brand: HYLUG
• UPC: 781810223208
