Burndy YAZ4C2TC38 4 AWG CU Two Hole 3/8 Stud Size Long Barrel 8 or 346 Die Index

Product Description

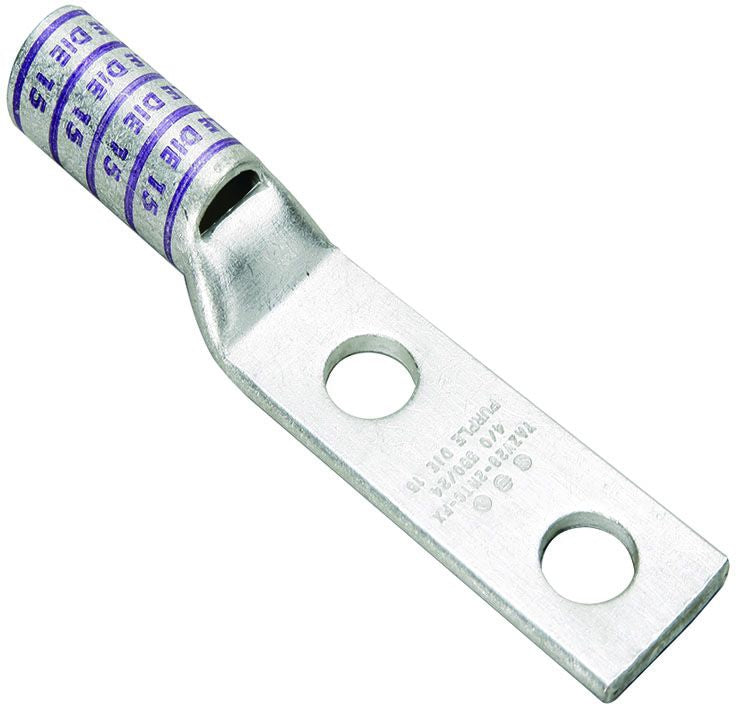

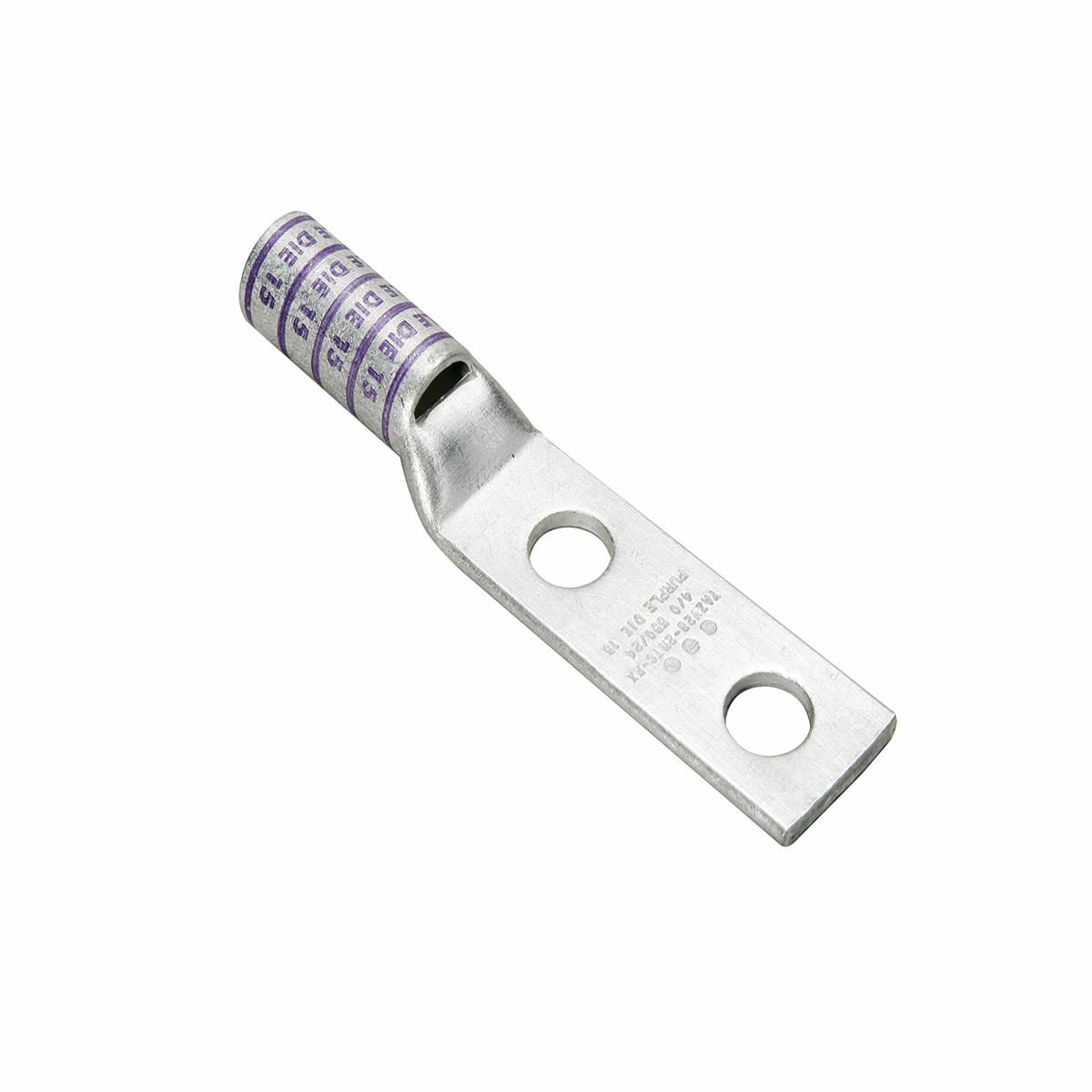

The Burndy YAZ4C2TC38 is a two-hole compression terminal designed for secure wire terminations. This terminal is constructed from copper and is suitable for various electrical applications, operating with a voltage rating of up to thirty-five kilovolts. It features a long barrel design with an inspection window, making it easy to confirm proper wire placement.

• UL Listed for safety and reliability
• Temperature rated for ninety degrees Celsius
• Long barrel suitable for use with stranded copper conductors

Product Highlights

This terminal provides reliable connections in electrical installations and is compatible with various die sets. Its design allows for easy handling and features a robust electro-tin plated finish to resist corrosion.

Product Information

Standard Information

• Catalog Number: YAZ4C2TC38
• Manufacturer: Burndy, a Hubbell affiliate
• Brand: Burndy
• Country of Origin: United States
• Material: Copper
• Application: Wire Termination
• Voltage Rating: 35 kV

Technical Specifications

• Pad Size: 0.58 inches wide, 0.08 inches thick
• Number of Pad Holes: 2
• Pad Hole Spacing: 1 inch
• Stud Size: 3/8 inch
• Wire Strip Length: 1-3/16 inches
• Die Index: 8
• Standard: UL 486A-486B
