BURNDY YAZ342NTCFX 350 kcmil G,H,I,K,M,373 DLO CU Two Hole 1-3/4 Hole Spacing Long Barrel Inspection Window Internal Chamfer

Product Description

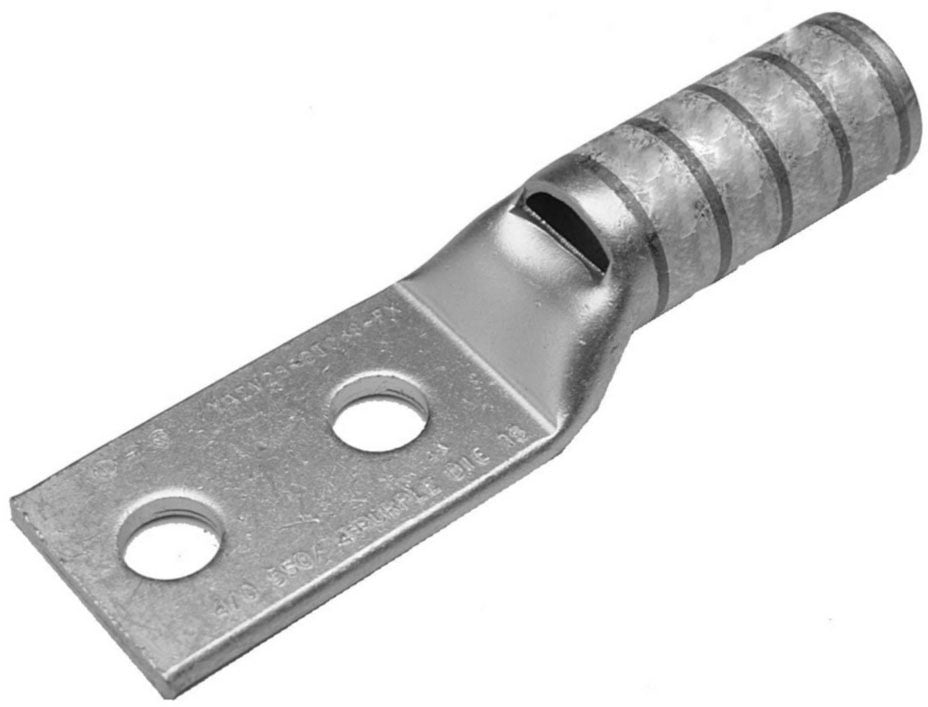

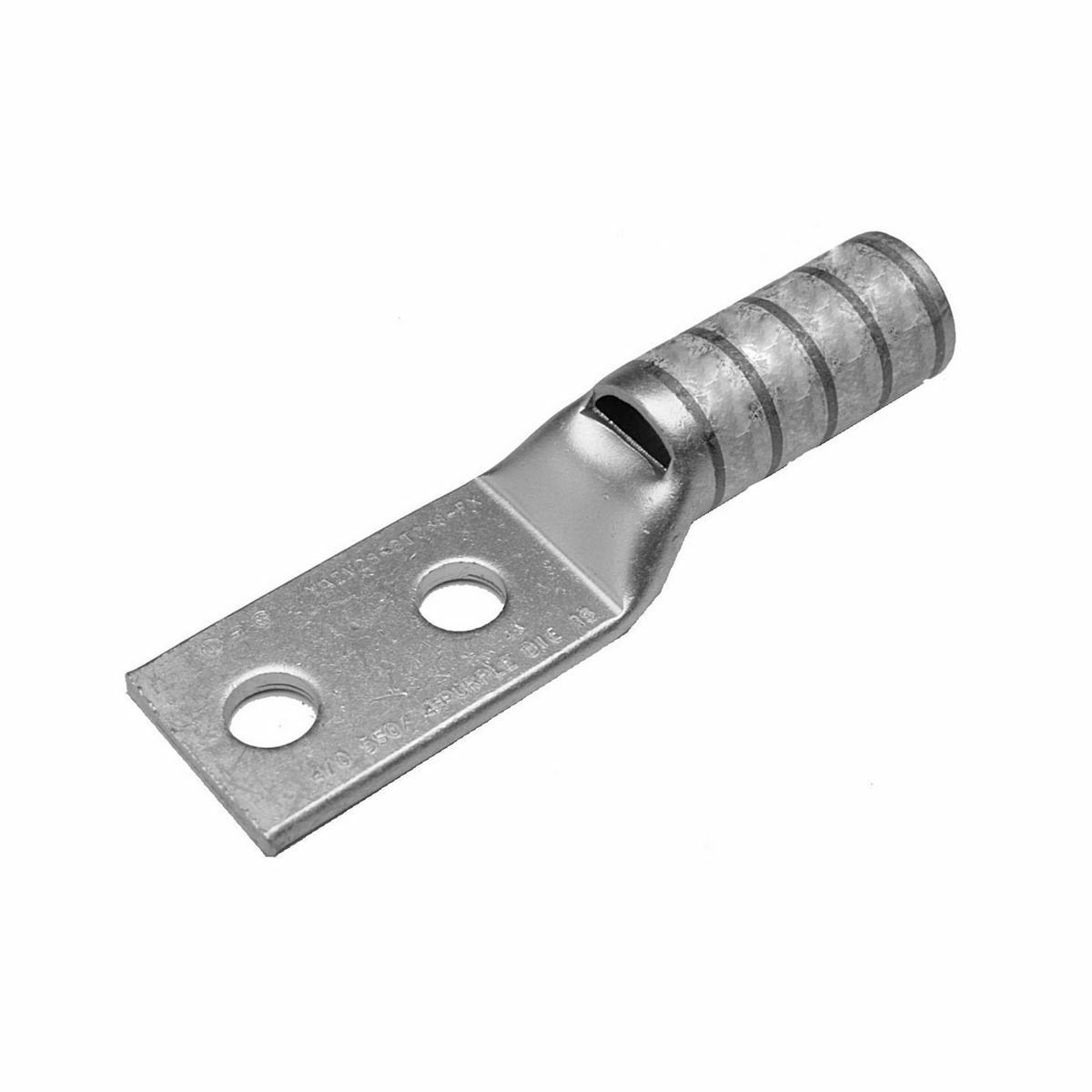

The Burndy YAZ342NTCFX is a compression cable lug designed for wire termination applications. This lug can accommodate a conductor size of 350 KCMIL and is suitable for use with copper materials. It features a long barrel for effective compression, making it ideal for reliable connections in various electrical setups.

• Voltage rating of 600 V to 35 kV
• UL Listed, suitable for temperature ratings up to 90 degrees Celsius
• Includes an inspection window for added convenience

Product Highlights

This product is built to achieve optimal electrical conductivity and durability, making it a preferred choice for trade professionals.

Product Information

Standard Information

• Brand: Burndy
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YAZ342NTCFX
• Material: Copper
• Item Type: Long Barrel, Skive
• Voltage Rating: 35 kV
• Pad Size: 1.55 inches wide, 0.23 inches thick
• Barrel Length: 2.25 inches
• Wire Strip Length: 2-5/16 inches
