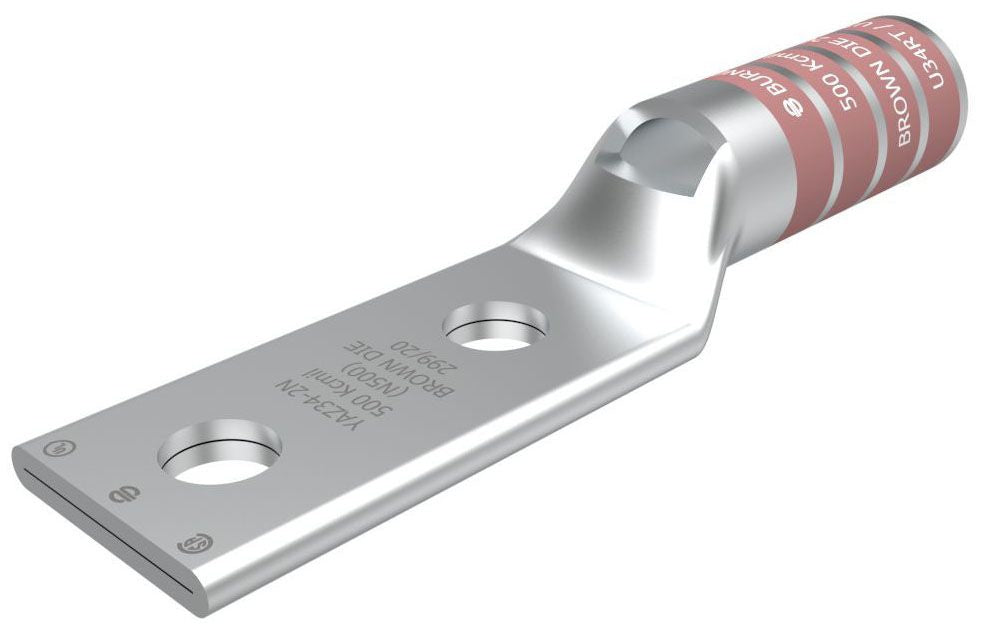

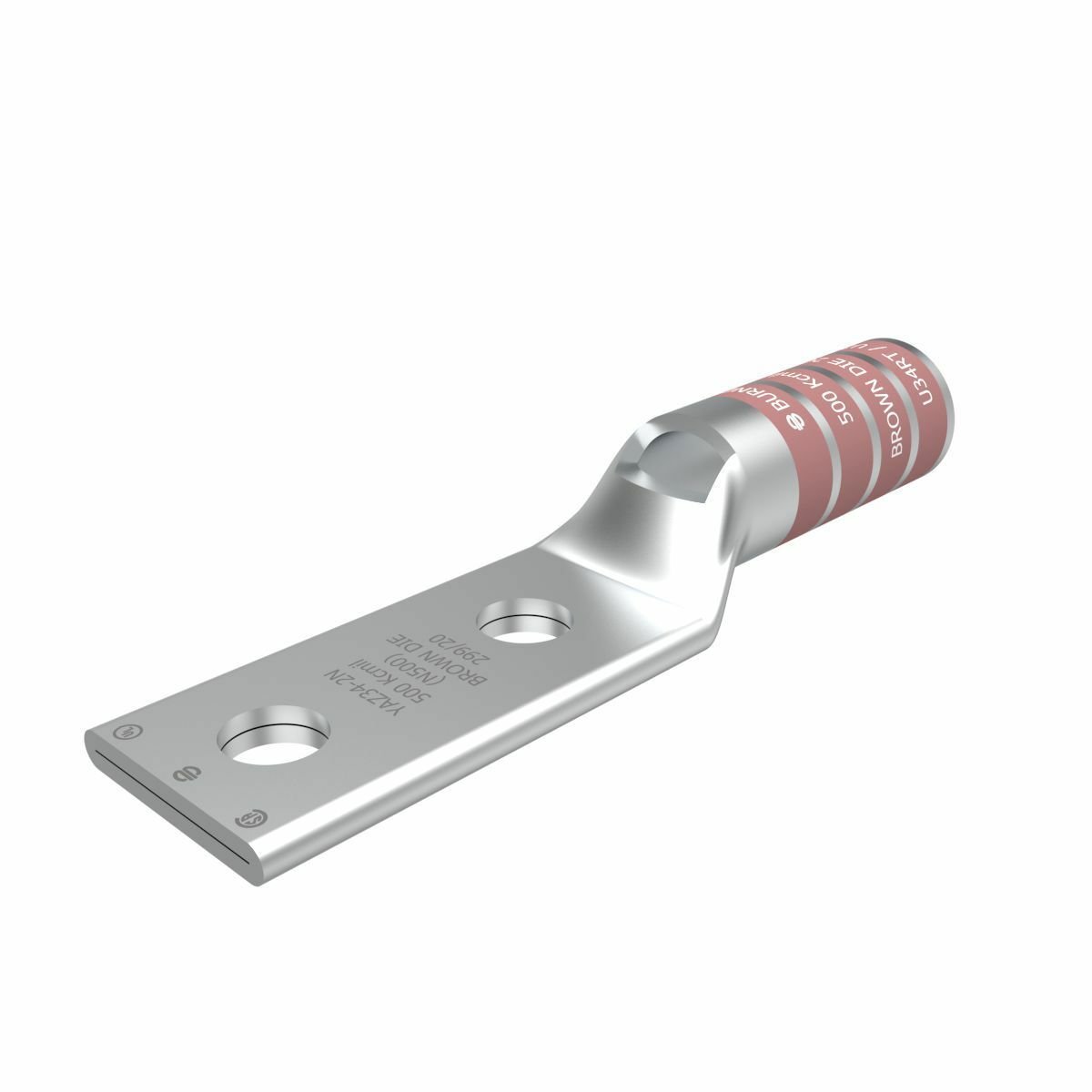

Burndy YAZ342N 500 kcmil CU Two Hole 1/2 Stud Size 1-3/4 Hole Spacing Long Barrel Inspection Window Internal Chamfer

Product Description

The Burndy YAZ342N is a compression cable lug designed for effective wire termination. This product accommodates a conductor size of five hundred kcmil, making it suitable for high electrical demands. It features a long barrel design with a straight tongue that ensures reliable connections.

• Voltage rating up to thirty-five kilovolts
• UL and CSA approved for safety
• Made in the USA with copper material

Product Highlights

The YAZ342N provides secure and stable electrical connections, essential for reliable operation in various applications.

Product Information

Standard Information

• Catalog Number: YAZ342N
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Conductor Material: Copper
• Barrel Type: Long, Straight, Skived
• Pad Size: One point five five inches width, zero point twenty-three inches thickness
• Number of Pad Holes: Two
• Pad Hole Spacing: One point seventy-five inches
• Stud Size: One half inch
• Color Code: Brown
• Temperature Rating: Ninety degrees Celsius
