BURNDY YAZ2C2TC38 2 AWG CU Two Hole 3/8 Stud Size Long Barrel Inspection Window Internal Chamfer

Product Description

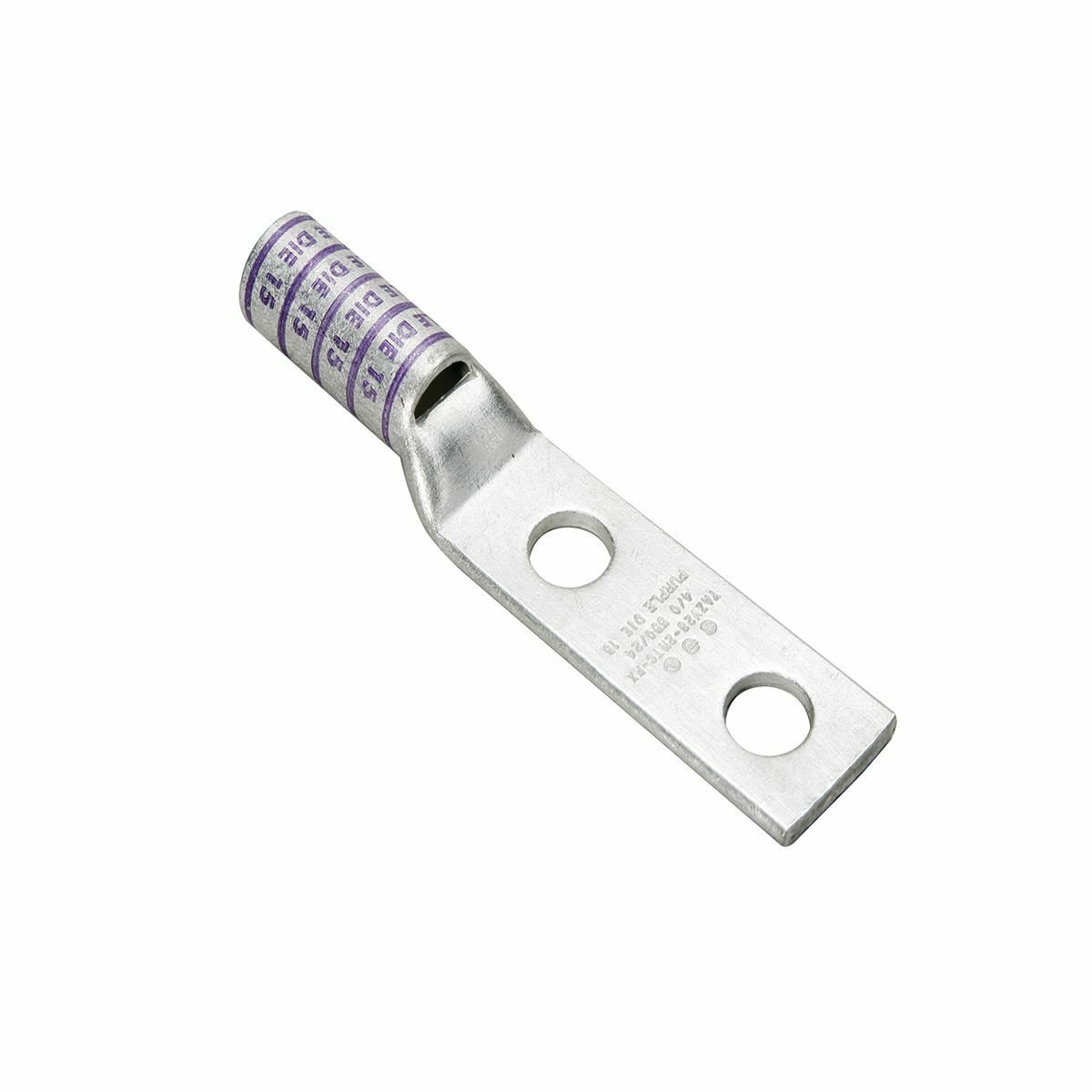

The BURNDY YAZ2C2TC38 is a two-hole cable lug designed for wire termination. It can handle a voltage rating from 600 volts up to thirty-five kilovolts. The lug is made of copper with a long barrel type and features a skived and straight barrel. It includes an inspection window for added functionality.

• Voltage rating of 600V to 35kV
• Made from copper and features tin plating
• UL and CSA compliant

Product Highlights

Ideal for various electrical applications where reliable wire termination is required. This cable lug ensures strong connections in both commercial and industrial settings.

Product Information

Standard Information

• Catalog Number: YAZ2C2TC38
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Country of Origin: United States
• Voltage Rating: 35
• Special Features: UL Listed 90 °C, with inspection window
• Wire Strip Length: 1-5/16 inches
• Pad Hole Size: 0.6 inches by 0.11 inches thick
• Pad Hole Spacing: 1 inch
• Die Index: 10
