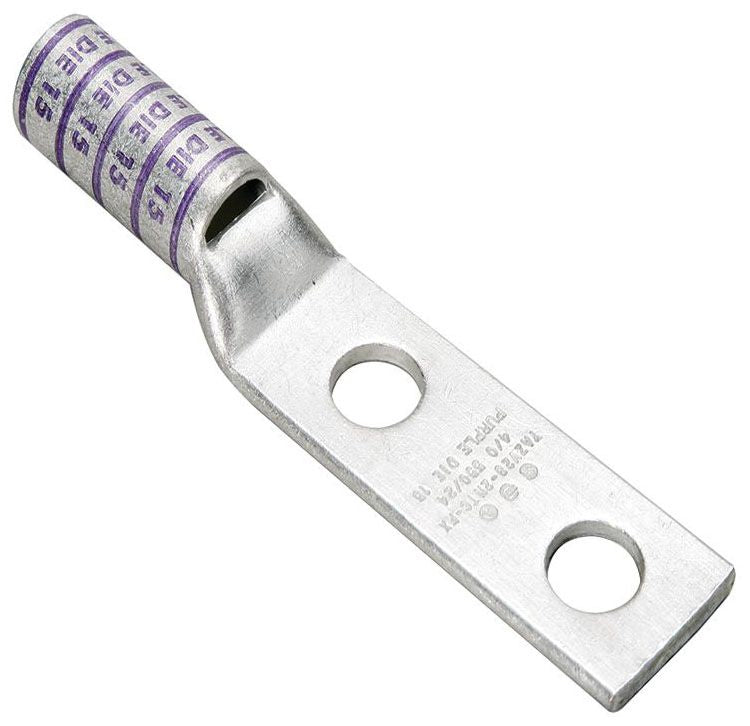

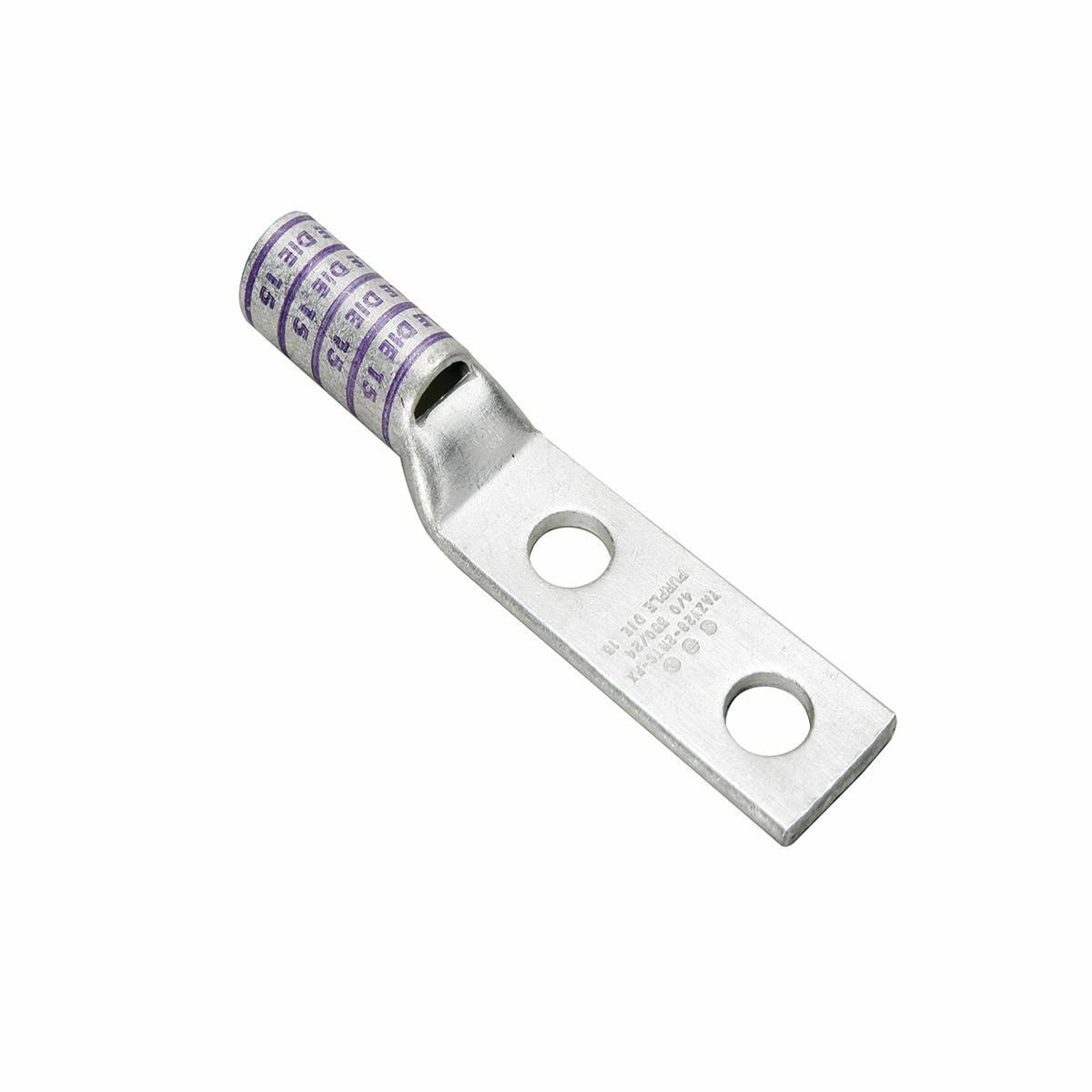

Burndy YAZ2C2TC14E2 2 AWG CU Two Hole 1/4 Stud Size Long Barrel Inspection Window Internal Chamfer Tin Plated UL/CSA 90C Up to 35kV

Product Description

The Burndy YAZ2C2TC14E2 is a two-hole compression cable lug designed for effective wire termination. It accommodates a two AWG conductor size and is suitable for both solid and stranded copper wires. This lug features a long barrel with a straight tongue design, providing reliable connections in electrical systems.

• UL Listed with temperature ratings up to 90 degrees Celsius.
• Compatible with various crimping tools for versatile use.
• Inspection window allows for easy visual confirmation of wire insertion.

Product Highlights

This cable lug is ideal for high voltage applications, rated for use up to thirty-five kilovolts. The electro-tin plating ensures good conductivity and corrosion resistance.

Product Information

Standard Information

• Catalog Number: YAZ2C2TC14E2
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Pad Size: 0.6 inches
• Stud Size: 1/4 inches
• Hole Spacing: 3/4 inches
• Wire Strip Length: 1-5/16 inches
• Die Index: 10
• Application: Wire Termination
