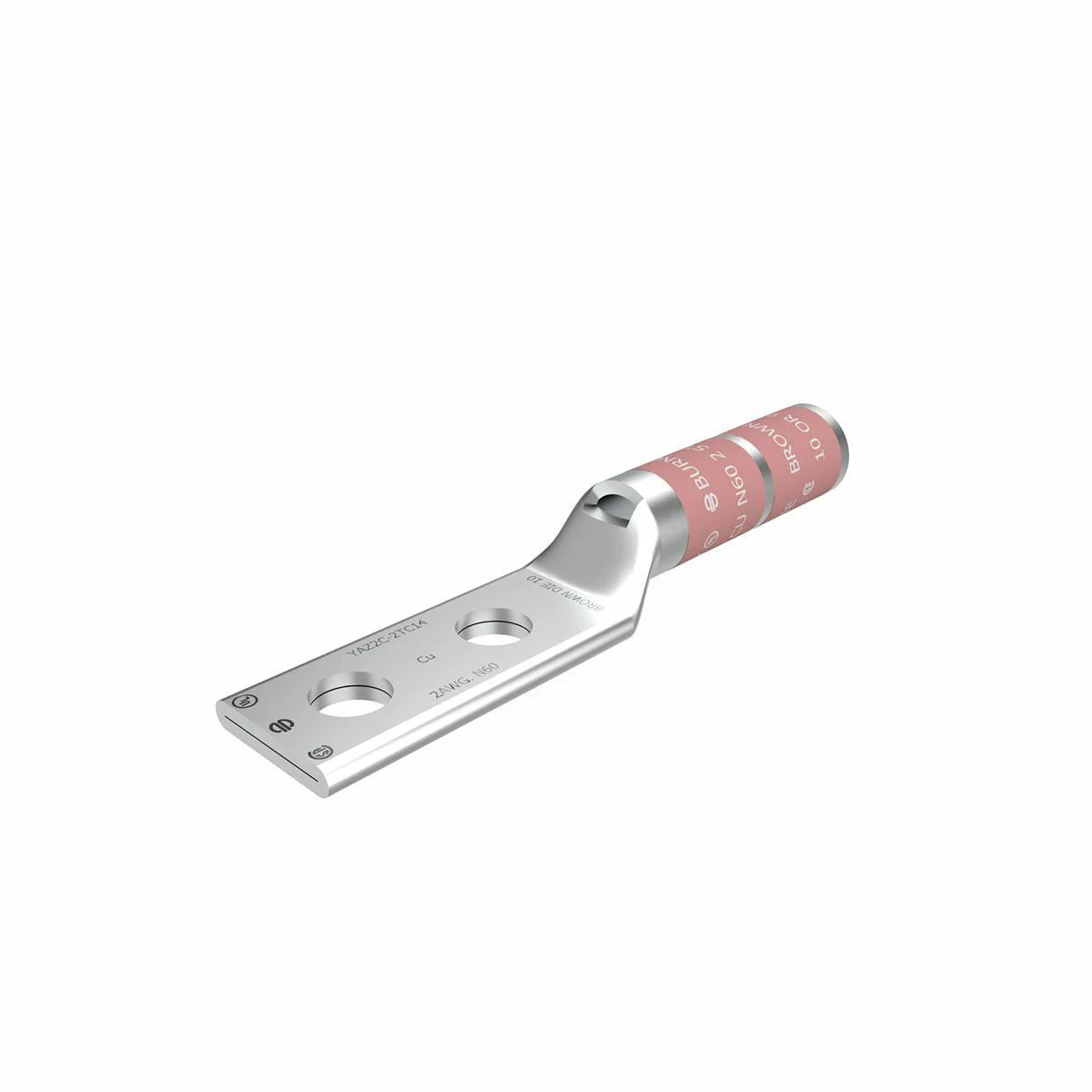

BURNDY YAZ2C2TC14 Copper Compression Lug, 2 AWG, 2 Hole with Inspection Window

Product Description

The BURNDY YAZ2C2TC14 is a copper compression lug designed for secure wire terminations. This product features a long barrel design with an inspection window, making it suitable for various electrical applications. It is built for use with two AWG conductors and has a voltage rating of 600 volts to 35 kilovolts.

• Material: Copper
• Temperature Rating: 90 degrees Celsius
• Country of Origin: United States

Product Highlights

The BURNDY YAZ2C2TC14 compression lug is UL listed and approved for extensive uses in electrical wiring systems. It features special design attributes such as a two-hole pad for flexible installation and is electro-tin plated for corrosion resistance.

Product Information

Standard Information

• Catalog Number: YAZ2C2TC14
• Brand: BURNDY

Technical Specifications

• Application: Wire Termination
• Barrel Type: Long, Skived, Straight
• Stud Size: 1/4 Inch
• Pad Hole Spacing: 5/8 Inch
• Wire Strip Length: 1-5/16 Inches
• Finish: Electro-Tin Plated
• Approval: UL, CSA
• Special Features: Inspection Window, Temperature Rating: 90 degrees Celsius
