Burndy YAZ292N 250 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer

Product Description

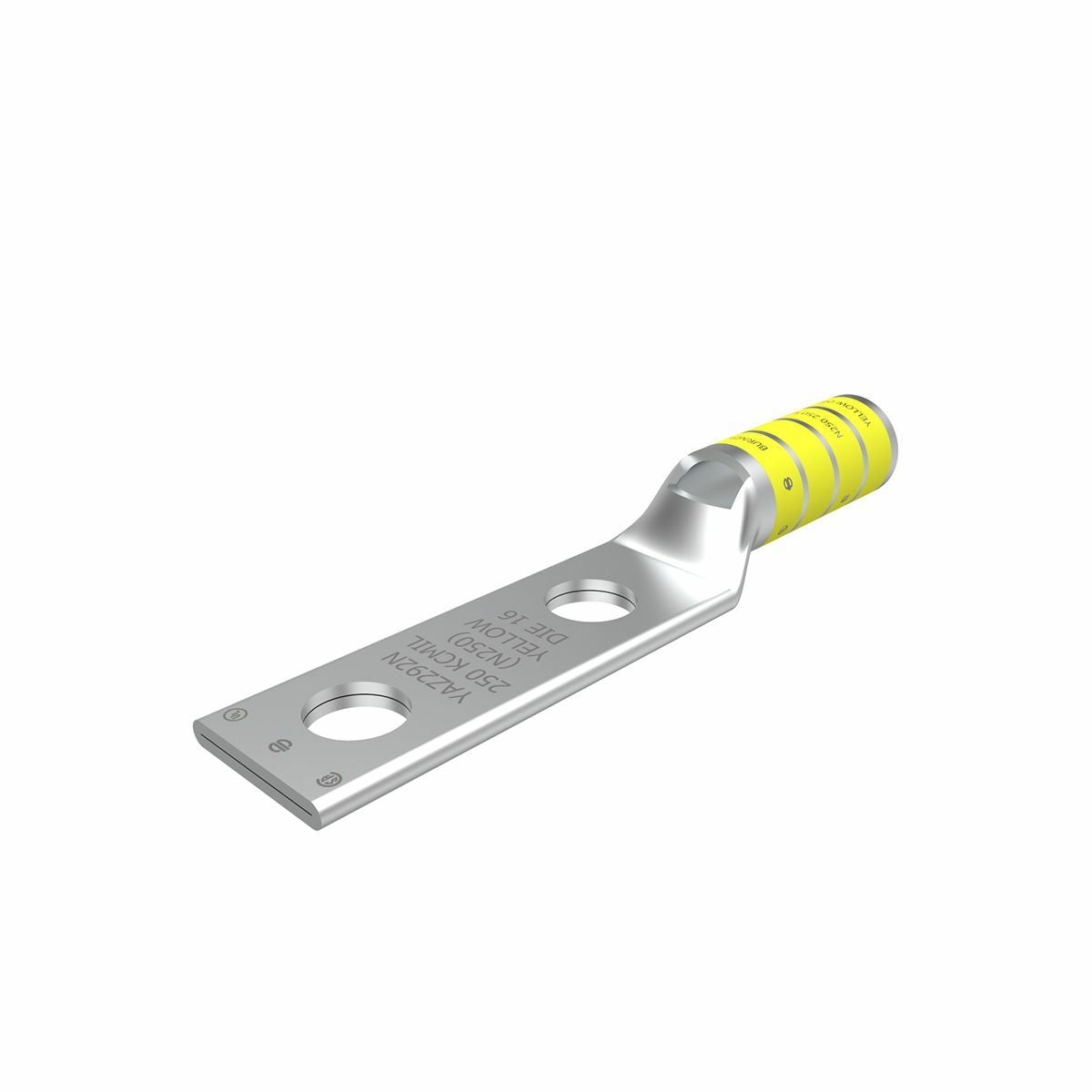

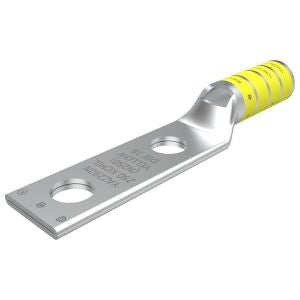

The Burndy YAZ292N is a copper compression lug designed for a conductor size of two hundred fifty kcmil. This lug features two holes and is suitable for use with a half-inch stud size. The lug has a long barrel that allows for effective wire termination. An inspection window is included to facilitate visual checks and ensure proper installation.

• Designed for wire sizes of 250 kcmil.
• UL listed for safety with a maximum voltage rating of thirty-five thousand volts.
• Temperature rating of ninety degrees Celsius with an electro-tin plated finish for corrosion resistance.

Product Highlights

This product is suitable for electrical connections in demanding applications due to its robust construction.

Product Information

Standard Information

• Material: Copper
• Country of Origin: USA

Technical Specifications

• Catalog Number: YAZ292N
• Stud Size: 0.5 inch
• Barrel Length: 1.62 inch
• Overall Length: 5.18 inch
• Hole Size: 14 mm
• Die Index: 16
• Color Code: Yellow
• Application: For code conductor
