Burndy YAZ282TC38 4/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer

Product Description

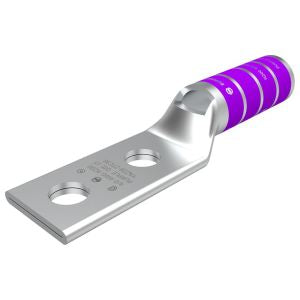

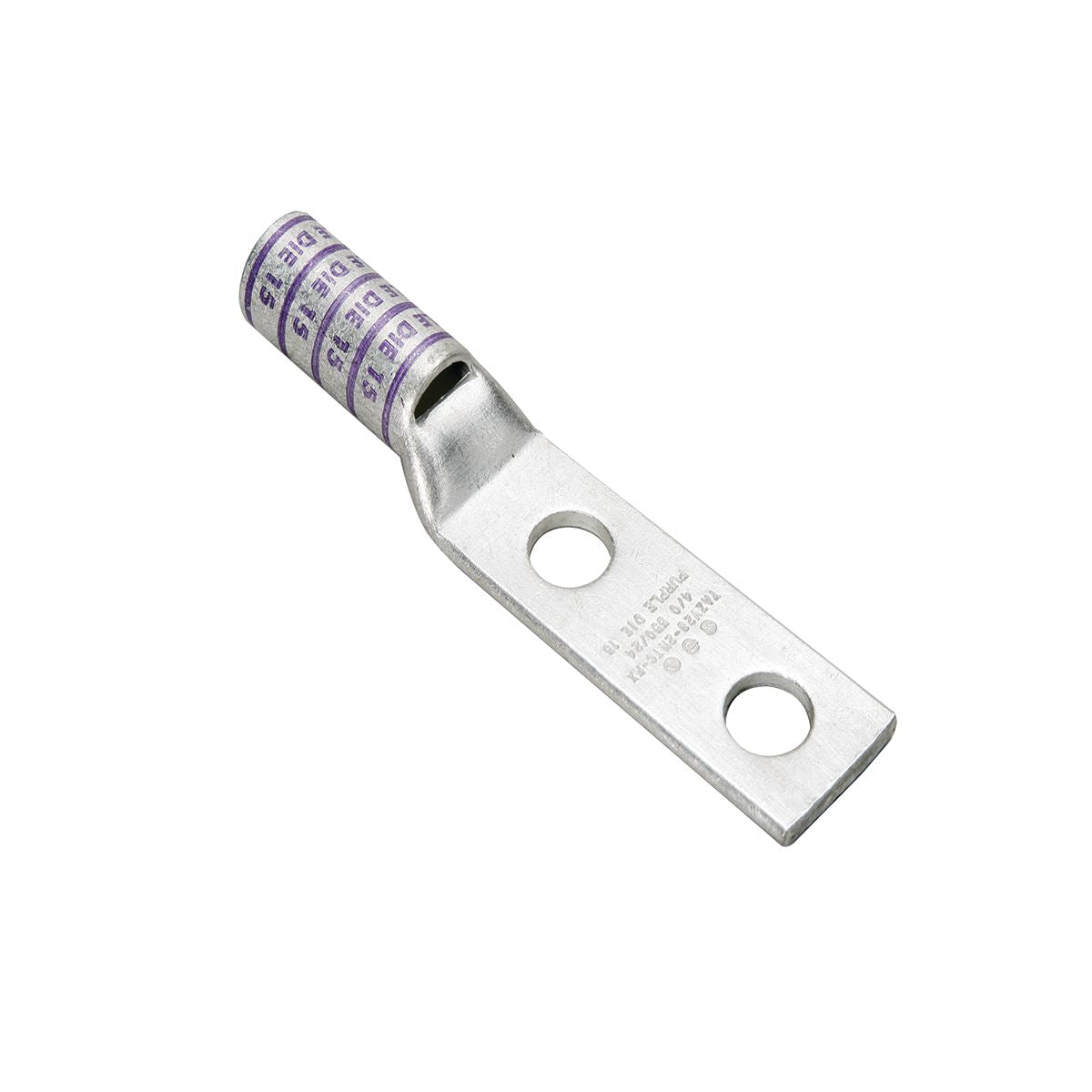

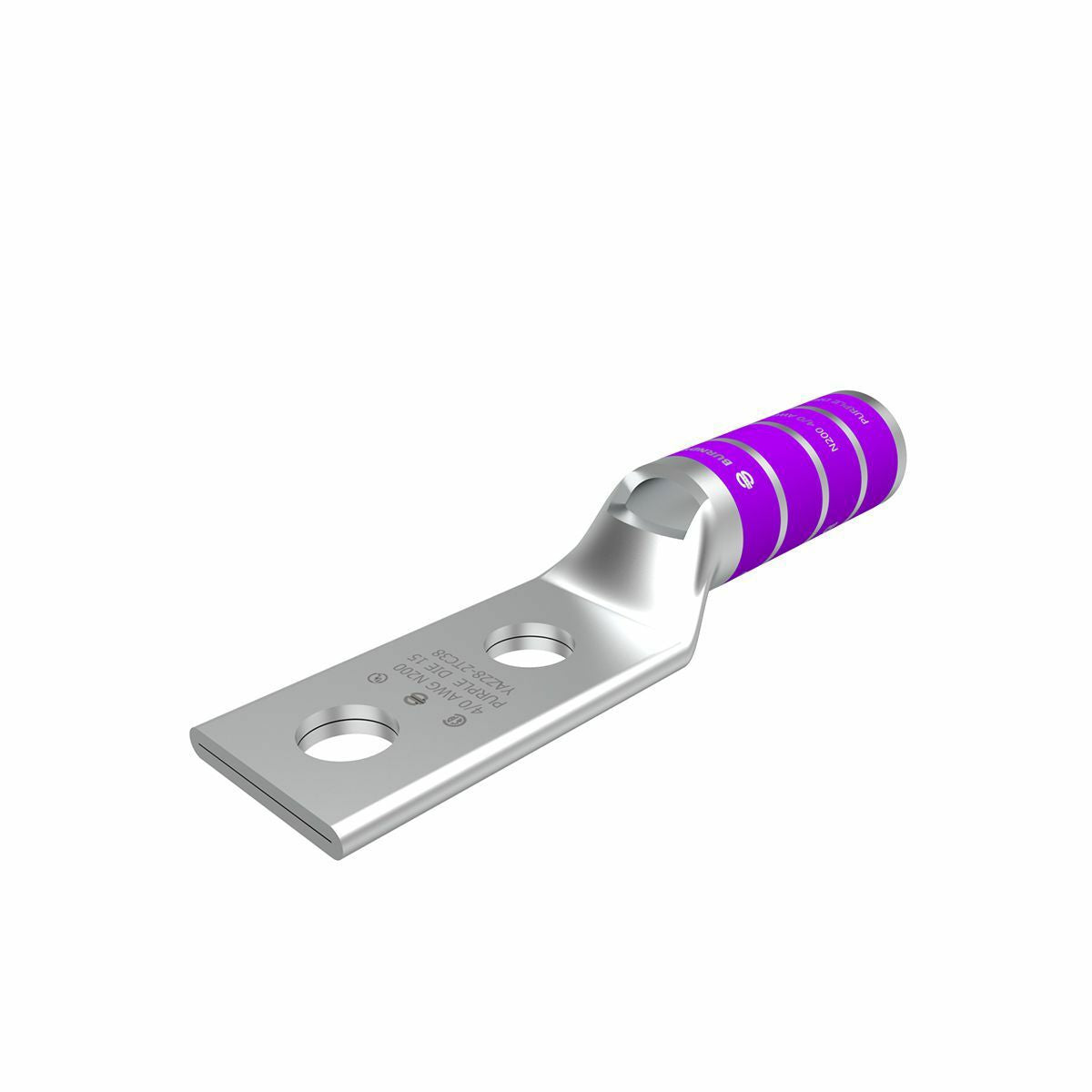

The Burndy YAZ282TC38 is a reliable compression terminal rated for 4/0 AWG copper conductors. It features a two-hole design with a stud size of three-eighths inches and one-inch hole spacing. The construction includes a long barrel and an inspection window for easy wire insertion and verification.

• UL Listed for safety compliance
• Rated for voltages up to thirty-five thousand volts
• Temperature rated at ninety degrees Celsius

Product Highlights

This terminal is designed for heavy-duty wire termination in various electrical applications. It provides secure connections in settings requiring high voltage and durability.

Product Information

Standard Information

• Catalog Number: YAZ282TC38
• Manufacturer: Burndy

Technical Specifications

• Material: Copper
• Stud Size: 0.375 inches
• Number of Holes: 2 Hole
• Max Voltage: 35000 V
• Cable Size: 4/0 AWG
• Overall Length: 3.99 inches
• Width: 1.02 inches
• Height: 0.69 inches
