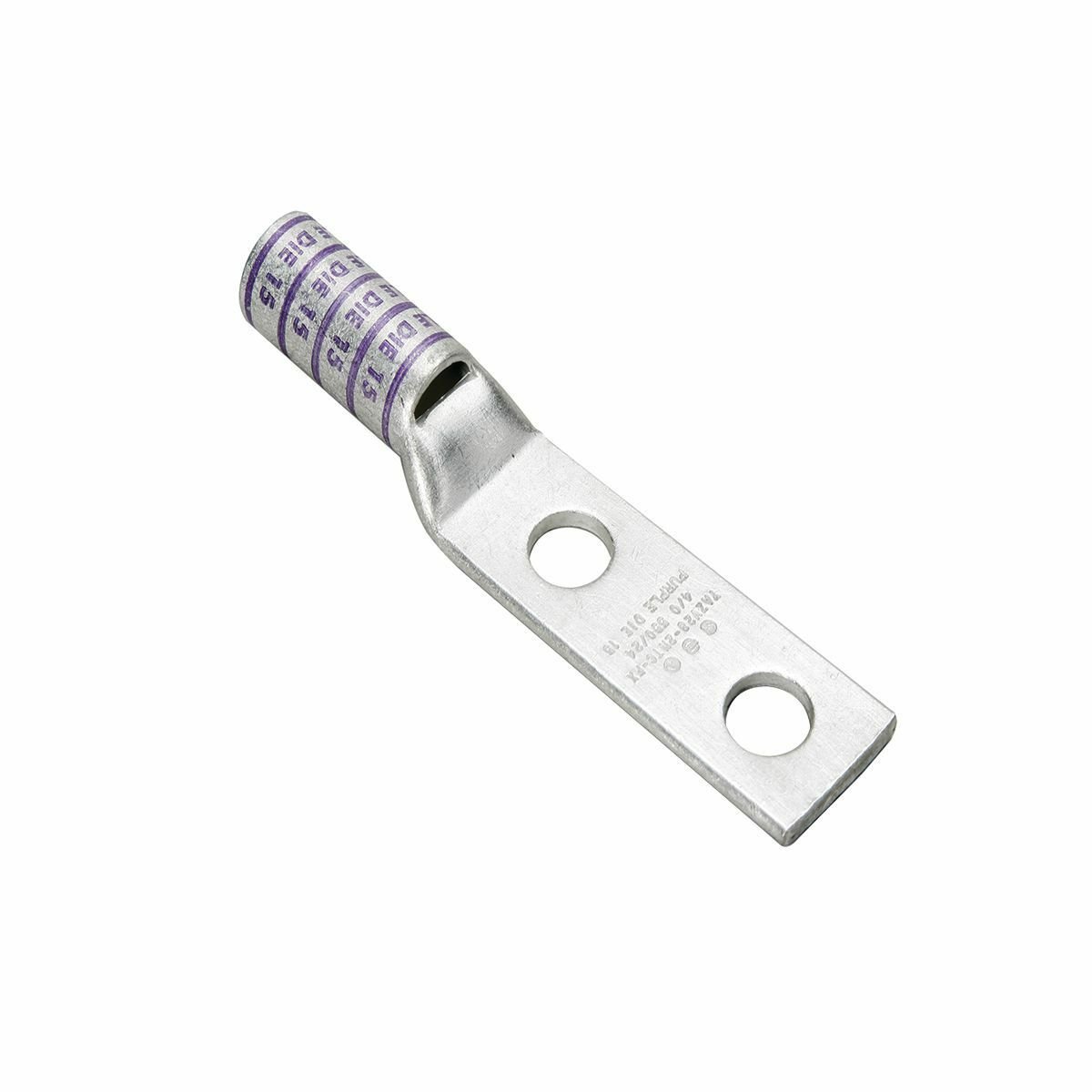

Burndy YAZ282N 4/0 AWG CU Two Hole 1/2 Stud Size 1-3/4 Hole Spacing Long Barrel

Product Description

The Burndy YAZ282N is a compression cable lug designed for wire termination applications. This product is made of copper and rated for handling voltages up to thirty-five kilovolts. It features a long barrel design and a purple color code for easy identification. Suitable for various installation needs, it is an essential component for electricians, allowing secure connections in both residential and industrial settings.

• Copper construction for excellent conductivity
• UL Listed with temperature rating up to ninety degrees Celsius
• Features an inspection window for quality assurance during installation

Product Highlights

This cable lug is ideal for professionals working with high voltage systems. Use it for connecting and terminating wires safely and efficiently.

Product Information

Standard Information

• Catalog Number: YAZ282N
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Temperature Rating: 90 degrees Celsius
• Wire Strip Length: 1-11/16 inches
• Pad Size: 1.02 inches width x 0.14 inches thickness
• Number of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 inches
• Stud Size: 1/2 inch
• Die Index: 15
• Cross Reference Products: L40N, 54866BEPH
