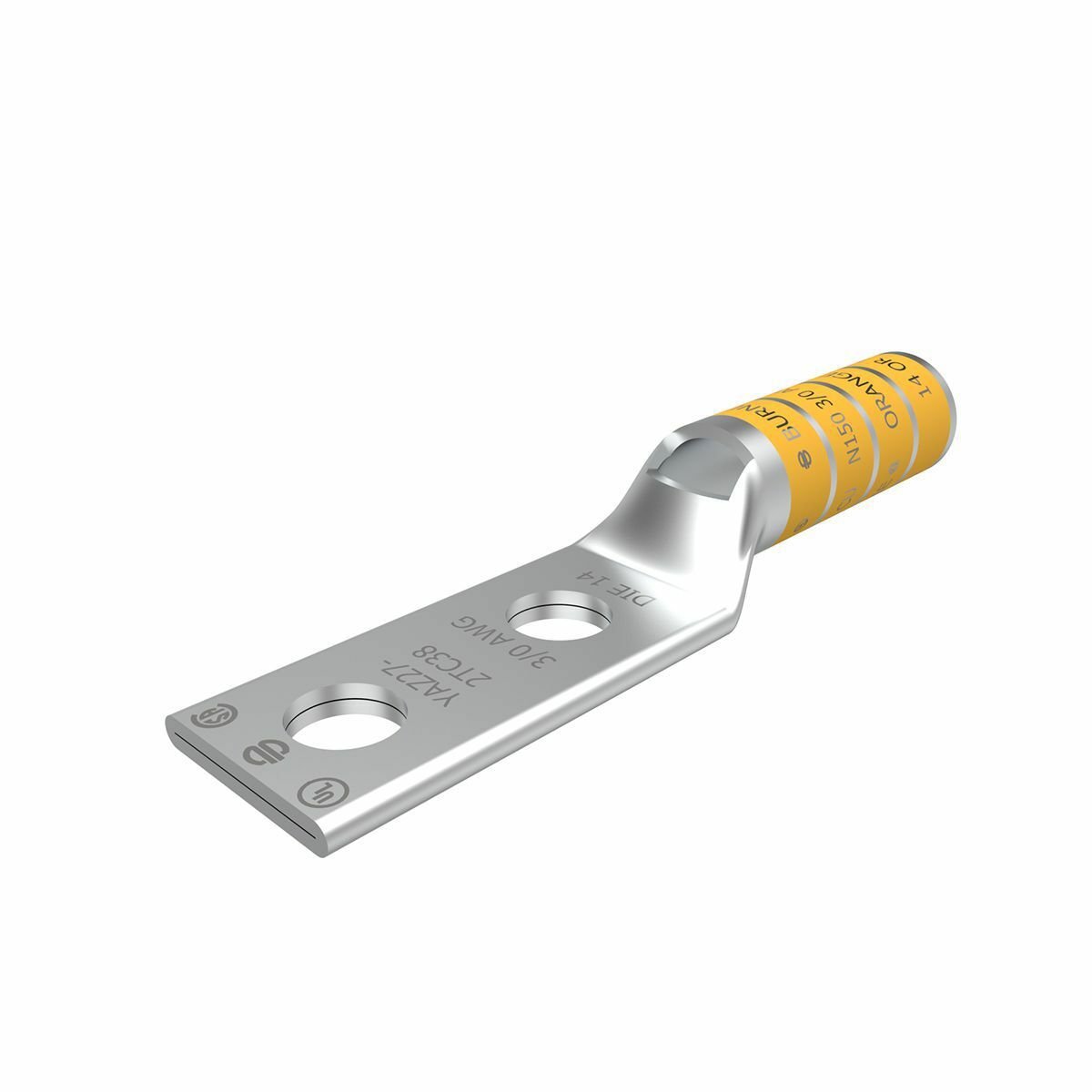

Burndy YAZ272TC38 3/0 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer

Product Description

Burndy YAZ272TC38 is a two-hole copper lug designed for efficient wire termination. This product features a long barrel design and is suitable for 3/0 AWG conductors, making it ideal for heavy-duty applications. The lug has an inspection window, allowing for quick visual checks of the connection. The product is rated for up to thirty-five thousand volts, ensuring reliability and safety in high voltage applications.

• UL Listed for safety and compliance
• Meets temperatures up to ninety degrees Celsius
• Electro-tin plated for corrosion resistance

Product Highlights

The Burndy YAZ272TC38 is intended for use with stranded copper conductors and features a color-coded design for easy identification. The lug's compact and durable construction supports maximum conductivity and strength during use in various electrical installations.

Product Information

Standard Information

• Catalog Number: YAZ272TC38
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Cable Size: 3/0 AWG
• Number of Holes: 2 Hole
• Stud Size: 3/8 inch
• Length: 3.8 inches
• Width: 0.9 inches
• Height: 0.62 inch
• Max Voltage: 35,000 volts
• Plating Type: Tin - Electro Plated
• Country of Origin: USA
