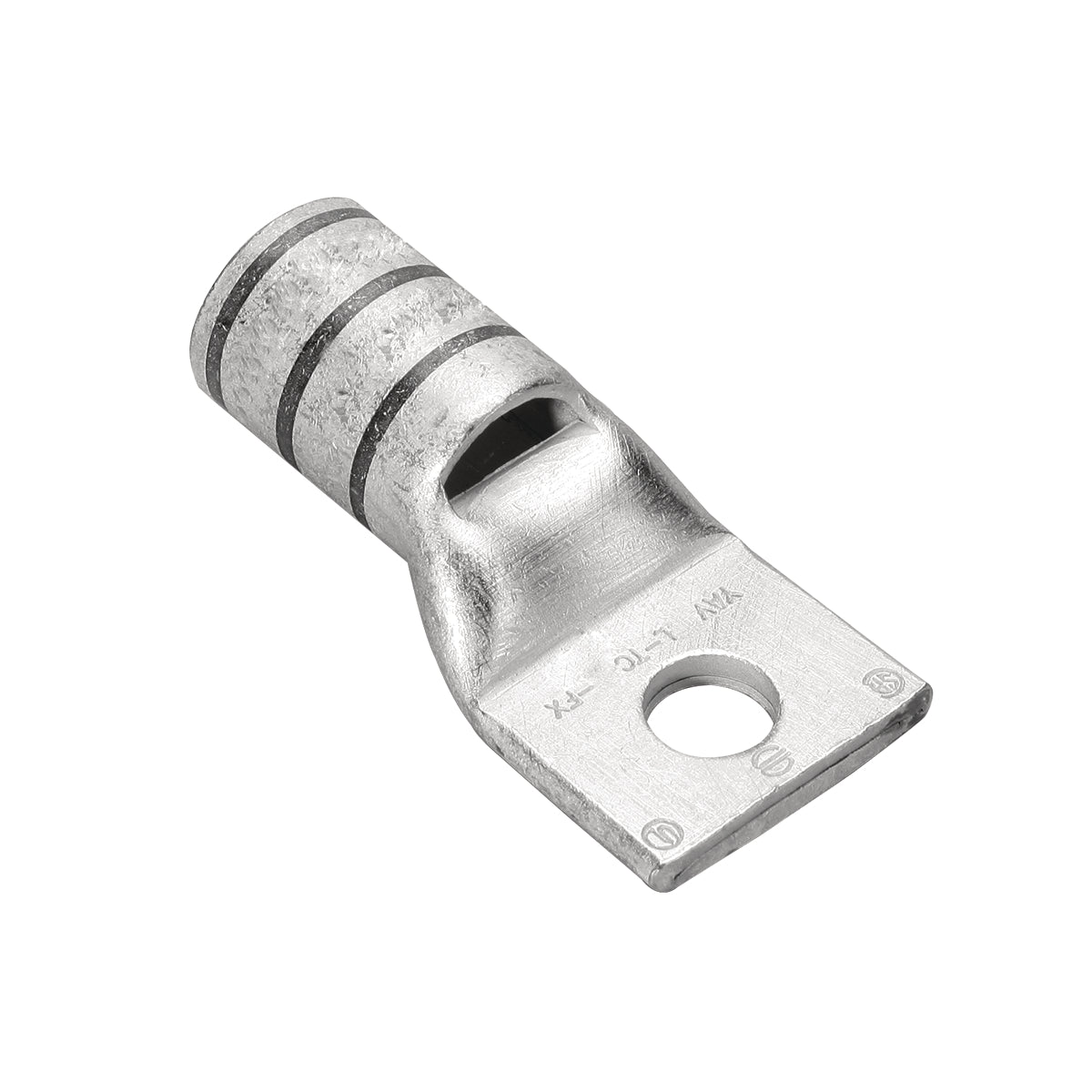

Burndy YAV8CLBOX HYLUG uninsulated ring terminal for 8 AWG

Product Description

The BURNDY YAV8CLBOX is an uninsulated ring terminal designed for 8 AWG copper conductors. Manufactured from seamless pure electrolytic copper tubing, it provides maximum conductivity and excellent ductility for crimping. The electro-tin plating offers long-lasting corrosion resistance. It is suitable for use on copper commercial cable, type AN aircraft cable and extra flexible conductors.

• Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity
• Seamless tubular crimp barrel design ensures a high-quality electrical connection
• Electro-tin plated for a long lasting durable corrosion resistance

Product Highlights

This heavy-duty ring terminal features a 1-hole design with an inspection window and is ideal for industrial, hospital, and marine applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YAV8CLBOX
• Country of Origin: US

Technical Specifications

• Catalog Number: YAV8CLBOX
• Connector Type: Ring Terminal
• Die Index: 38
• EU RoHS Indicator: Yes
• Feature - Barrel Style: Chamfered
• Material: Copper
• Material Composition: DLP Copper Tin Plating
• Military Specification: AS20659
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLUG
• Trade Name: HYLUG
• Type: Ring Tongue
• UPC: 781810541104
• UPC 14 Digit GTIN: 00781810541104
• Dimension - B Length inch: 0.41 in
• Dimension - Bolt Hole Size inch: 0.2 in
• Dimension - Bolt Size fraction: #8 - #10
• Dimension - Length Overall inch: 1.15 in
• Dimension - N inch: 0.2 in
• Dimension - Pad Width inch: 0.41 in
• Dimension - Strip Length inch: 1/2 in
• Dimension - Stud Size inch: #8;#10
• Dimension - Z (inch): 0.28 in
• Physical Attribute - Tongue Angle: Straight
• Conductor - Copper DLO Size: 8 (37/#24)
• Conductor - Copper Str Aircraft Size: AN 8
• Conductor - Copper Str Size: 9;8
• Conductor - Copper Str Size Range: 8 AWG
• Conductor Size: 8 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL467 Military Specified (Mil-Spec)
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• Application: Industrials, Hospitals, Utilities, Marine, Computer
• Application - For Use On: Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexible Conductors
• Barrel Size: 0.41 in L
• Barrel Type: Short
• Buy American Compliant: C
• Country of Origin: US
• Series: YAV-L
• Specifications: 1/2 in L Wire Strip
• Standard: UL467;Military Specified (Mil-Spec)
• Tongue Size: 0.41 in ID
• UNSPSC: 39121405
• UPC 11: 78181054110
• UPC 12: 781810541104
• Voltage Rating: 600 VAC to 35 kV
• Brand: BURNDY
• Manufacturer: BURNDY
• Stud Size: #8 to #10
