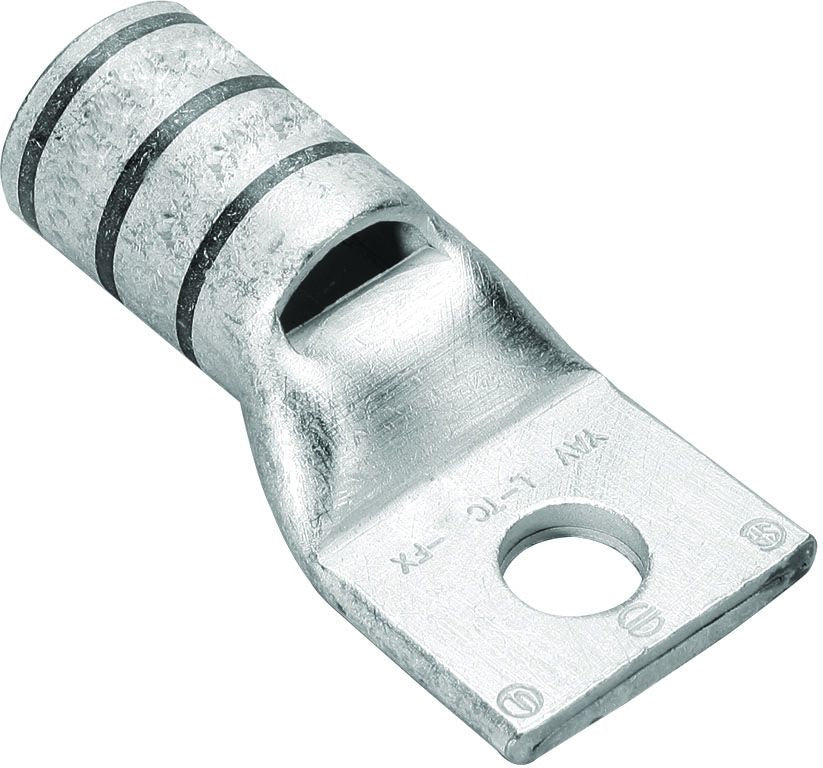

Burndy YAV8CL3 BUR YAV8CL3 8AWG Ring Lug 8AWG

Product Description

The Burndy YAV8CL3 is a compression ring tongue terminal designed for heavy-duty applications. It accommodates a maximum conductor size of eight American Wire Gauge (AWG) and features a non-insulated design. Made from electrolytic tin-plated copper, this terminal ensures effective conductivity and durability.

• Beveled design for optimal connection.
• UL and CSA approved for safety standards.
• Compatible with AN type aircraft cable and extra flexible conductors.

Product Highlights

This terminal can be used in various electrical applications, particularly in industries requiring reliable connections, such as aviation and commercial wiring.

Product Information

Standard Information

• Manufacturer: Burndy
• UPC: 78181002512

Technical Specifications

• Maximum Conductor Size: 8 AWG
• Stud Size: 3/8 inch
• Dimension: 1.29 inches L x 0.57 inches W
• Wire Strip Length: 1/2 inch
• Die Index: 38
• Material: Electrolytic Tin Plated Copper
• Approval: UL, CSA
• Country of Origin: USA
