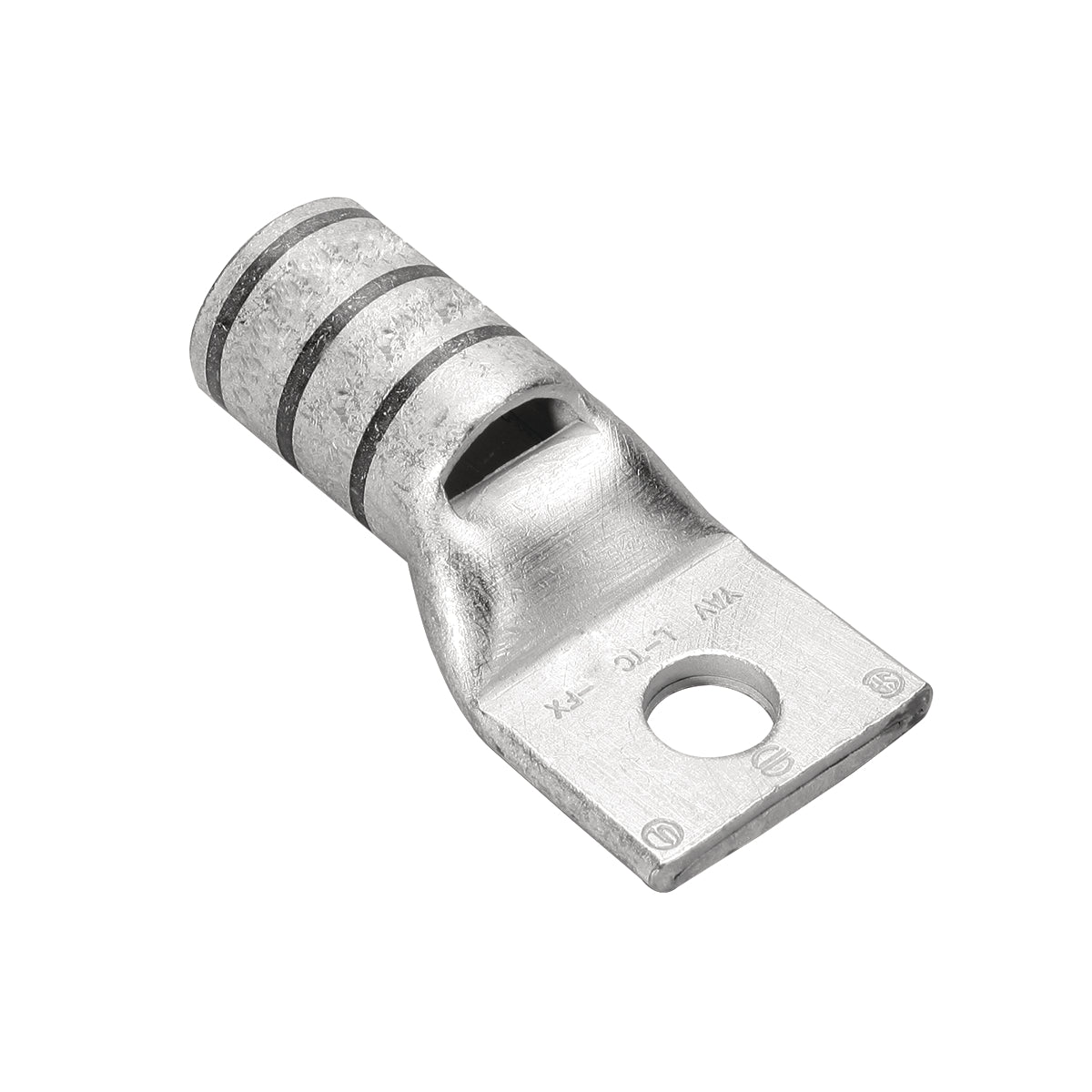

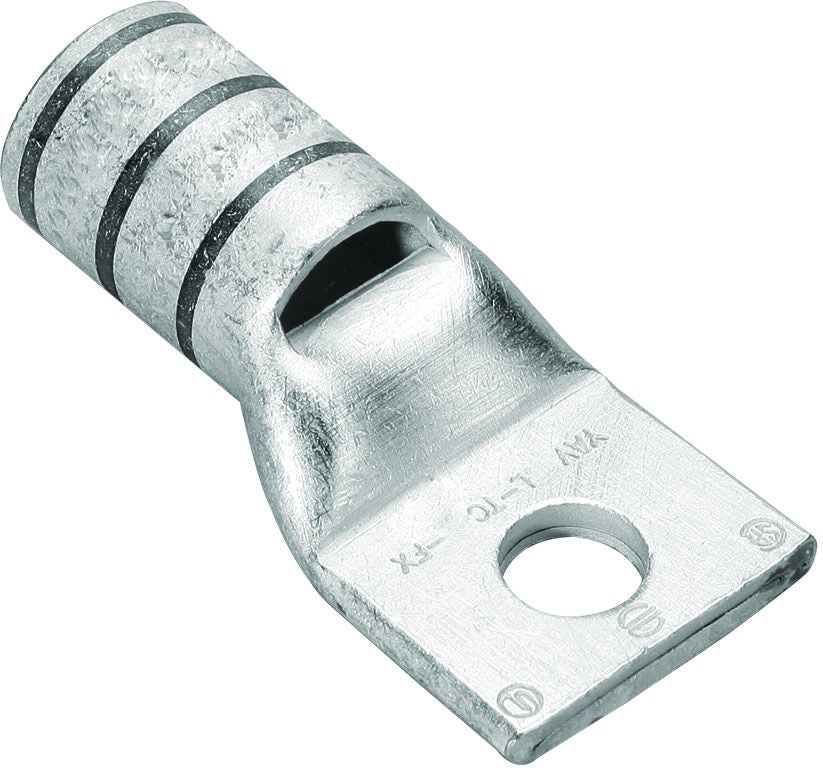

Burndy YAV8CL1 Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-8 Flex, 1/4 inches Stud, Short Barrel

Product Description

The BURNDY YAV8CL1 is a copper compression lug with a ring tongue, designed with 1 hole and an inspection hole. It is suitable for AN-8 Flex cables and features a 1/4" stud. This lug has a short barrel and is tin plated. It is manufactured from electrolytic copper and is for use on Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors.

• Seamless, heavy duty uninsulated compression terminal
• Manufactured from electrolytic copper
• For use on Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors

Product Highlights

This copper compression lug is ideal for use in demanding applications requiring high reliability, such as aircraft, industrial, and marine environments.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer Part Number: YAV8CL1
• Country of Origin: US - United States

Technical Specifications

• Catalog Number: YAV8CL1
• Brand: BURNDY
• Sub Brand: HYLUG
• Country of Origin: United States
• Made in USA: Yes
• Application: For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance
• Material: Copper
• Special Features: Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Package: Bulk, Installation Tool: HYTOOL: Non-Ratchet: MY29-11 Tool, Ratchet: Y8MRB-1, MR4C, MR8-9Q, M8ND Tool With N8CT Die Set, Finish: Electro-Tin Plated, Ms20659 Dash Number: -141, Wire Shroud: No, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29B Tool, DV8L-1 Die Nest, Y29PL Die Indentor, (1) Crimp, Y35, Y39 Tool, UV8L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV8L Die Nest, Y34PL Die Indentor, (1) Crimp
• Standard: UL467;Military Specified (Mil-Spec)
• UPC: 781810025079
• GTIN: 00781810025079
• Item Type: Ring Tongue
• Cross Reference Products: D71, D10711
• Stud Size: 1/4 in.
• ECCN: EAR99
• UNSPSC: 39121405
• Maximum Conductor Size: 8 AWG (Aircraft/Flex)
• Insulation Type: Non-Insulated
• Approval: UL, CSA
• RoHS Compatible: True
• Die Index: 38
• Used On: AN Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor
• Type: Ring Tongue
• Plated: Y
• Manufacturer: BURNDY
• Plating Type: Tin - Electro Plated
• Product Name: YAV8CL1; Cu Compression; 1-Hole; 1/4IN Stud; Standard Barrel; 8 Flex
• Product Type: TERMINAL
• EU RoHS Indicator: Yes
• Description - Long: Copper Compression Lug; Ring Tongue; 1 Hole w/ Inspection Hole; AN-8 Flex; 1/4IN
• Description - Short: Copper Compression Lug; Ring Tongue; 1 Hole w/ Inspection Hole; AN-8 Flex; 1/4IN
• Material Composition: DLP Copper;Tin Plating
• Feature - Barrel Type: Standard
• Minimum Pack Quantity: 200
• Feature - Barrel Style: Chamfered
• Military Specification: AS20659
• Dimension - B Length inch: 0.405 in
• Dimension - Pad Width inch: 0.46 in
• Dimension - Outside Diameter i: 0.27 in
• Physical Attribute - Tongue Ty: Ring
• Standards - Industry Standards: UL486
• Standards - RoHS Compliance St: CM
• Dimension - Length Overall inch: 1.22 in
• Dimension - N inch: 0.25 in
• Conductor - Copper Str Aircraft Size: AN-8
• Conductor - Copper Str Size: 8 AWG
• Conductor - Copper Str Size Range: 8 AWG
• Conductor Size: 8 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• UL Listed: Yes
• Finish: Tin-Plated
• Bolt Hole Size: 1/4 in.
• Connector Type: Ring Terminal
• No. of Holes: 1
• Outer Diameter: 0.27 in.
• Width: 0.46 in.
• Mounting: Cable Mount
• Termination Method: Crimp
• Body Orientation: Straight
• Plating: Tin
• Wire Size (AWG): 8
• IGCC: 4532
• Family group: CONNECTORS
• WES Product code: 2830620901
• EU RoHS: Compliant
• ECCN (US): EAR99
• Part Status: Active
• HTS: 8536.90.40.00
• Automotive: No
• PPAP: No
